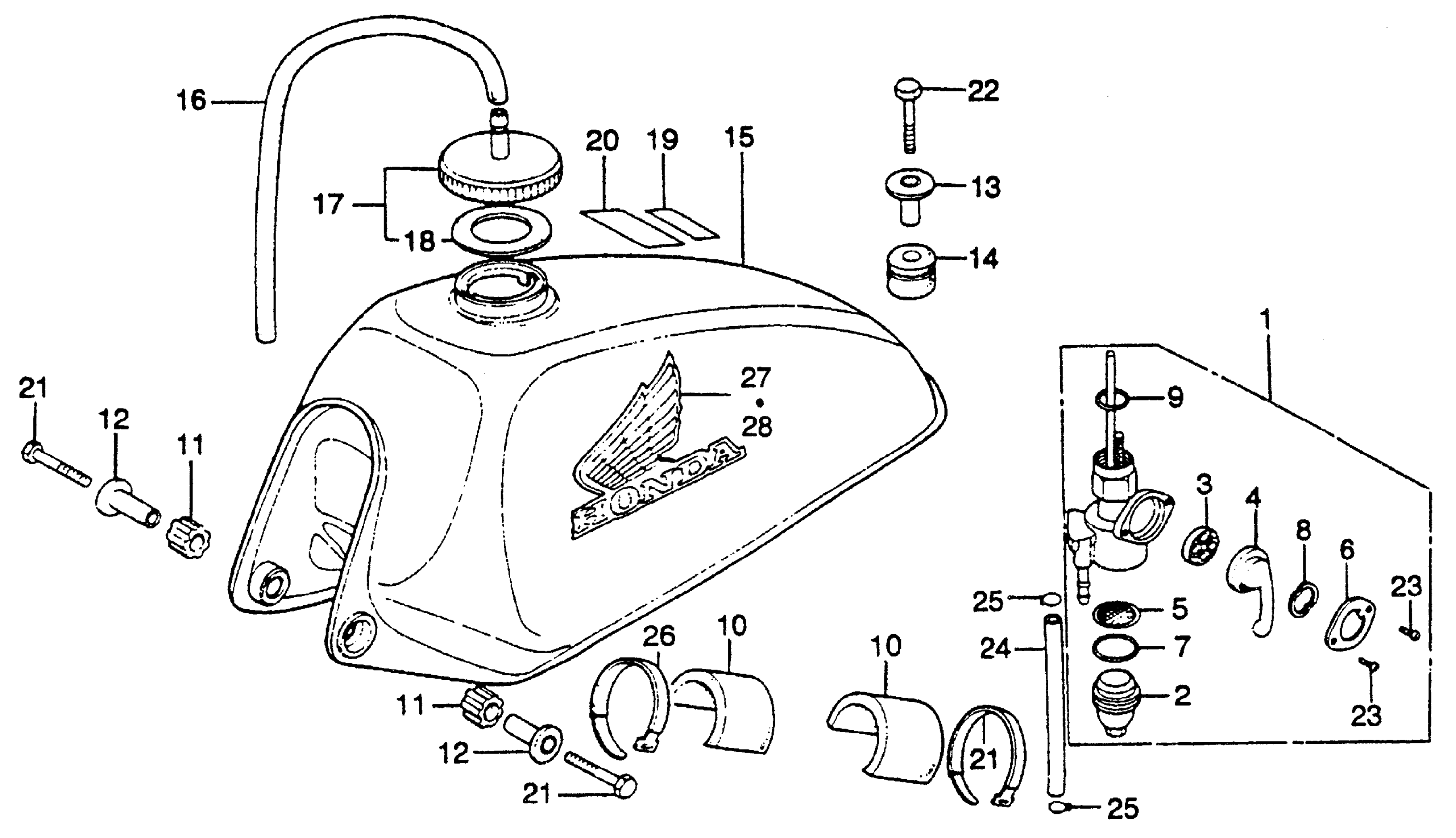

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-395-670

Unavailable

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

2

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

3

GASKET, PETCOCK

16953-283-000

$12.77

4

LEVER, VALVE (NOT AVAILABLE)

16953-369-740

Unavailable

5

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

6

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-369-740

Unavailable

7

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

9

GASKET, JOINT NUT

16956-283-000

$4.67

10

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

11

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE) This part replaces 17507-395-670.

17507-358-000

Unavailable

12

COLLAR, FR. FUEL TANK MOUNT (NOT AVAILABLE)

17508-358-000

Unavailable

13

COLLAR, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17508-395-670

Unavailable

14

RUBBER, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17509-395-670

Unavailable

15

TANK ASSY., FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17510-395-671ZA

Unavailable

16

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

17

CAP, FUEL FILLER This part replaces 17620-373-010.

17620-428-020

Unavailable

17

CAP, FUEL FILLER This part replaces 17620-373-020.

17620-428-020

Unavailable

17

CAP, FUEL FILLER This part replaces 17620-428-010.

17620-428-020

Unavailable

17

CAP, FUEL FILLER

17620-428-020

Unavailable

18

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

18

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

18

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

19

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

20

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

21

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

21

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

21

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

22

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

22

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

22

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

23

SCREW, PAN (3X6)

93500-03006-0A

$1.49

24

BULK HOSE, FUEL (5.5X3000) (5.5X220)

95001-55003-60M

$47.32

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

BAND A3, CABLE

95014-61300

$1.97

27

MARK, R. FUEL TANK (NOT AVAILABLE)

87123-395-670

Unavailable

28

MARK, L. FUEL TANK (NOT AVAILABLE)

87124-395-670

Unavailable
