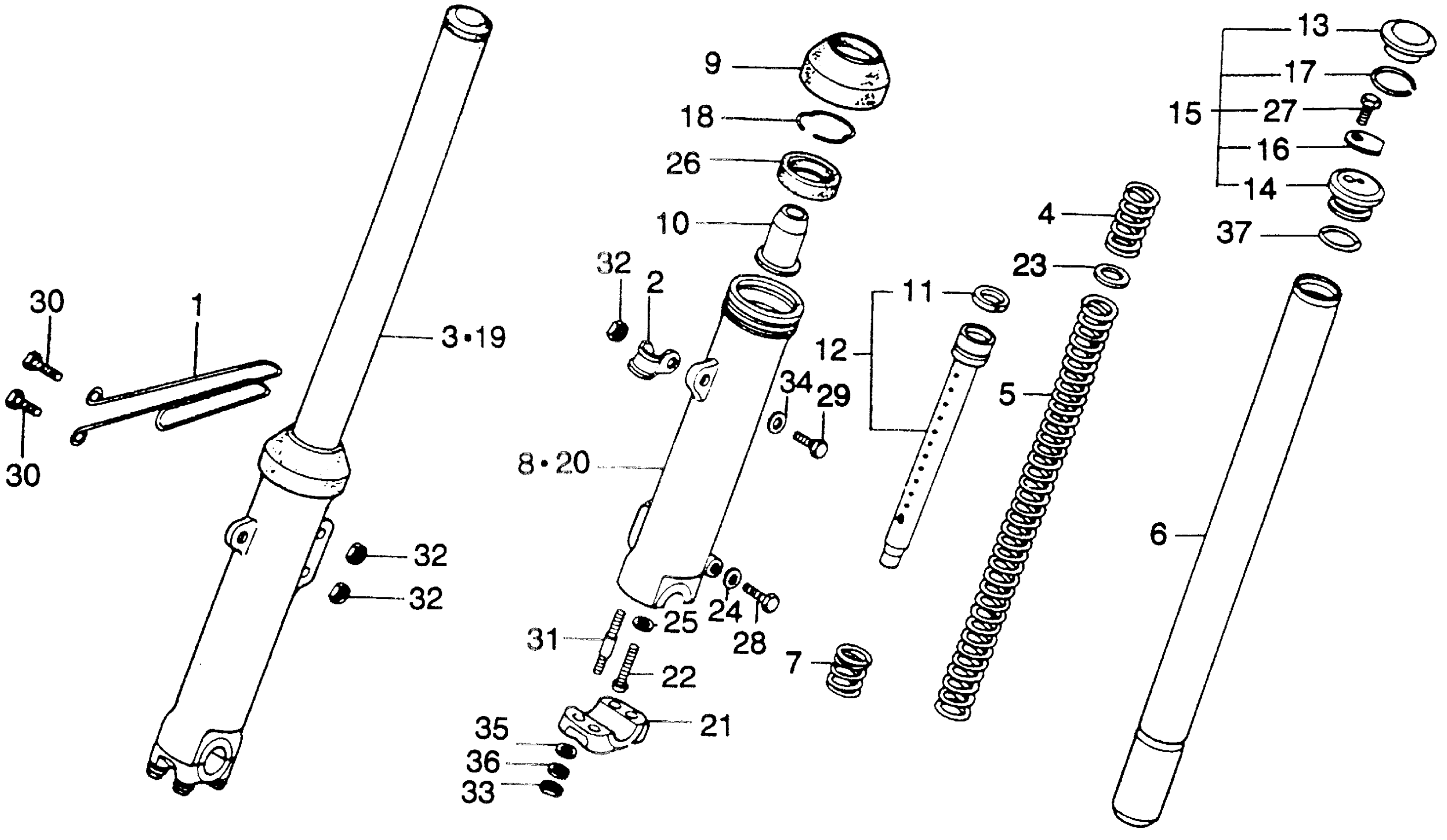

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 FRONT FORK Diagram

#

Description
Price

NI

CIRCLIP (INNER) (30MM) (SOURCE: VINTAGE PARTS INC.)

94521-30000

Unavailable

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-329-000

Unavailable

2

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 1010371 This part replaces 51400-395-671.

51400-395-672

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-395-672

Unavailable

4

SPRING A, FR. FORK (NOT AVAILABLE)

51401-395-670

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-395-670

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-381-003

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-358-771

Unavailable

9

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

9

DUST SEAL, FR. FORK

91254-435-003

$15.40

10

PIECE, OIL LOCK

51432-381-003

Unavailable

11

RING, PISTON

51437-329-010

$7.14

12

SEAT (LOWER) (NOT AVAILABLE)

51440-395-671

Unavailable

13

CAP, FORK PIPE (NOT AVAILABLE) | Use up to Frame SN 1010371 This part replaces 51449-381-003.

51449-381-013

Unavailable

13

CAP, FORK PIPE (NOT AVAILABLE)

51449-381-013

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | Use up to Frame SN 1010371 This part replaces 51454-381-003.

51460-381-305

Unavailable

14

SEAT, SPRING (UPPER) (NOT AVAILABLE) | Use from Frame SN 1010372

51454-381-013

Unavailable

15

SEAT SET, SPRING (NOT AVAILABLE) | Use up to Frame SN 1010371

51460-381-305

Unavailable

16

WASHER, SUPPORT (NOT AVAILABLE) | Use from Frame SN 1010372

51455-381-003

Unavailable

17

RING, STOPPER (NOT AVAILABLE)

51456-381-003

Unavailable

18

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

18

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

19

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN 1010371 This part replaces 51500-395-671.

51500-395-672

Unavailable

19

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-395-672

Unavailable

20

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-381-003

Unavailable

21

HOLDER, FR. AXLE

51634-340-000

Unavailable

22

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

22

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

23

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

24

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

26

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

27

BOLT, HEX. (6X8) | Use from Frame SN 1010372 This part replaces 92000-06008.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8) | Use from Frame SN 1010372 This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8) | Use from Frame SN 1010372

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

28

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

28

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

31

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

31

BOLT, STUD (8X50)

92900-08028-3B

$1.59

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (8MM)

94001-08000-0S

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (8MM)

94111-08000

$1.49

37

O-RING (23X2.8)

94608-50000

$1.49
