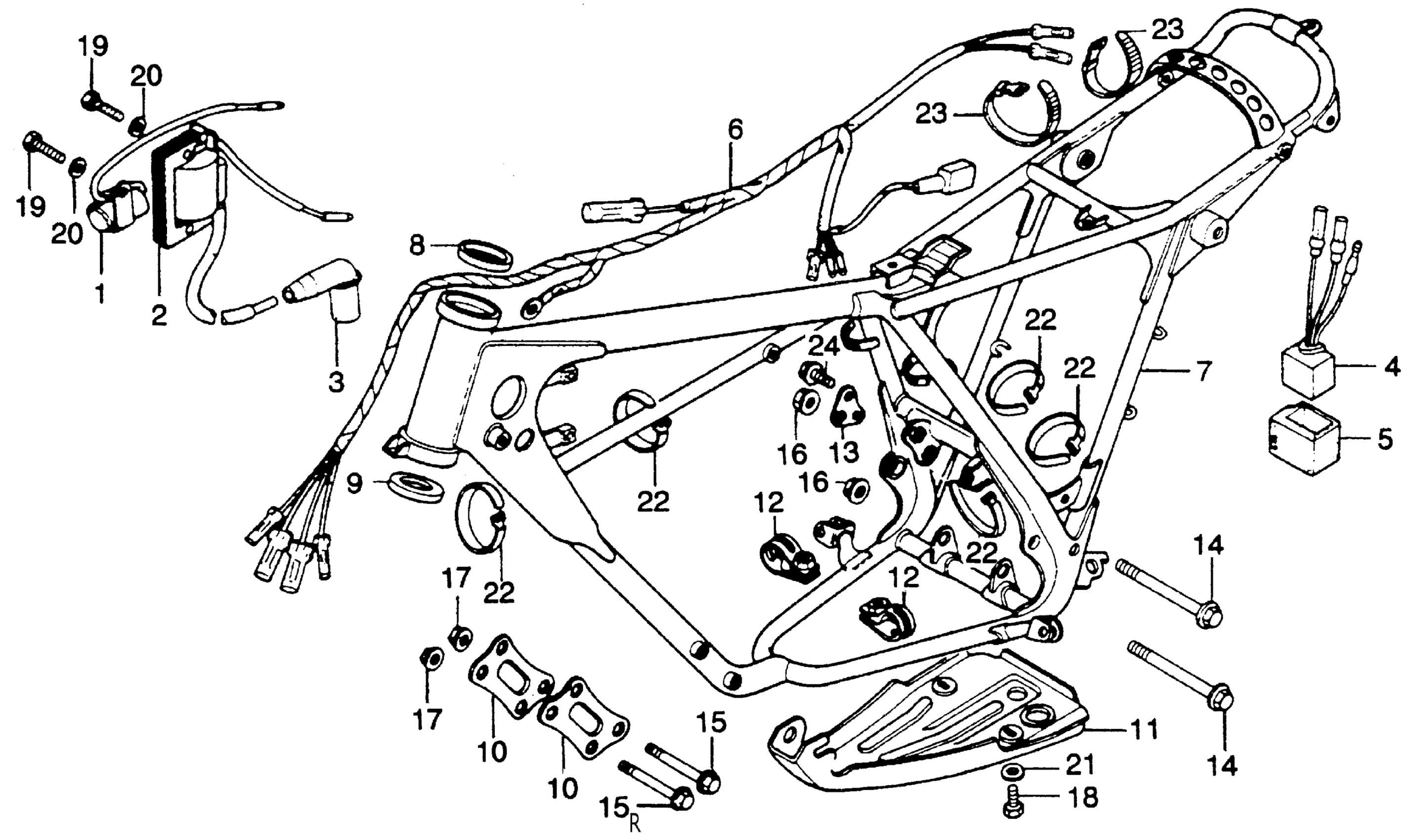

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

CONDENSER ASSY. (NOT AVAILABLE)

30250-395-670

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-381-000

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR

30700-373-153

Unavailable

4

RECTIFIER ASSY. (NOT AVAILABLE)

31700-131-008

Unavailable

5

RUBBER, SILICON RECTIFIER (NOT AVAILABLE)

31701-131-000

Unavailable

6

WIRE HARNESS (NOT AVAILABLE)

32100-395-670

Unavailable

7

FRAME *NH1* (BLACK)

50100-395-670ZA

Unavailable

8

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

8

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

9

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

9

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

9

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

10

BRACKET, ENGINE HANGER (NOT AVAILABLE)

50351-381-000

Unavailable

11

PLATE, SKID

50351-395-670

Unavailable

12

BAND, SKID PLATE SETTING (NOT AVAILABLE)

50358-358-000

Unavailable

13

HANGER, ENGINE (UPPER) (NOT AVAILABLE)

50365-395-670

Unavailable

14

BOLT, HEX. (10MM) (NOT AVAILABLE)

90102-358-000

Unavailable

15

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

16

NUT, HEX. (10MM)

90308-357-000

$4.85

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

19

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

19

SCREW, PAN (6X20)

93500-06020-0A

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

BAND B1, CABLE

32161-404-000

$2.23

22

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

23

BAND B1, CABLE

95014-62100

$1.64

24

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

24

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
