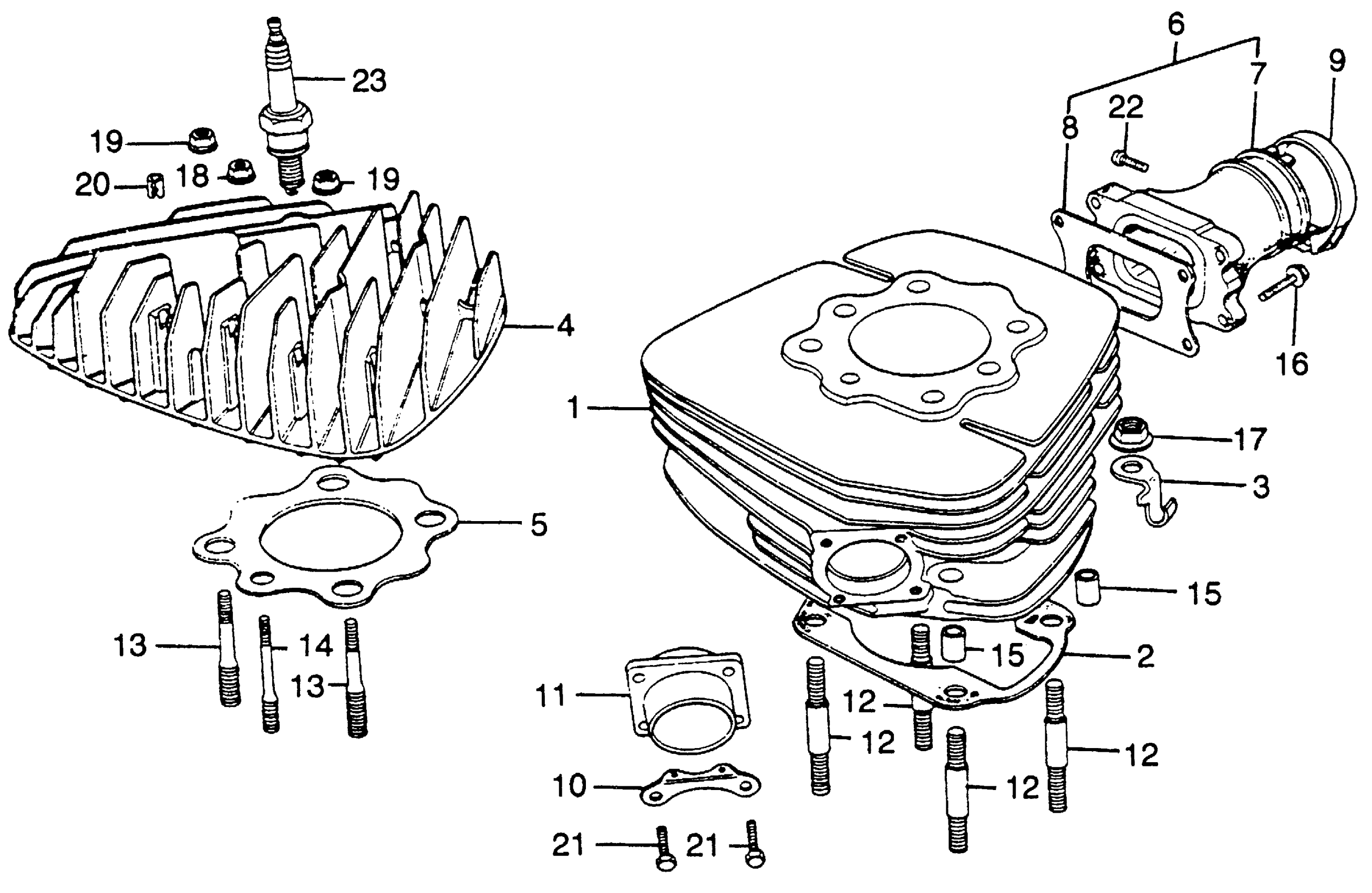

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-395-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-381-000.

12191-381-306

Unavailable

3

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

12193-381-000

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-381-000

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-395-000.

12251-395-405

Unavailable

5

GASKET, CYLINDER HEAD

12251-395-405

Unavailable

6

PIPE SET, IN. (NOT AVAILABLE) | Use up to Engine SN 1010181

16220-381-000

Unavailable

7

PIPE SET, IN. (NOT AVAILABLE) | Use up to Engine SN 1010181

16220-381-000

Unavailable

7

PIPE SET, IN. (NOT AVAILABLE) | Use up to Engine SN 1010181 This part replaces 16221-381-003.

16220-381-000

Unavailable

7

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 1010182

16221-381-013

Unavailable

8

GASKET, IN. PIPE (NOT AVAILABLE) | Use from Engine SN 1010182

16222-381-000

Unavailable

9

BAND, INSULATOR

16223-KS5-000

$14.20

9

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

10

STAY, EX. PIPE (NOT AVAILABLE)

18331-357-000

Unavailable

11

JOINT, EX. PIPE (NOT AVAILABLE)

18351-381-000

Unavailable

12

BOLT, STUD (10X68) (NOT AVAILABLE)

90031-381-000

Unavailable

13

BOLT, CYLINDER STUD (NOT AVAILABLE)

90032-381-000

Unavailable

14

BOLT, STUD (6X55)

90034-357-010

Unavailable

15

PIN, DOWEL (12X16)

90036-357-000

$3.69

16

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

17

NUT, SPECIAL (10MM) (NOT AVAILABLE)

90231-381-000

Unavailable

18

NUT, FLANGE (6MM) (NOT AVAILABLE)

90233-357-000

Unavailable

19

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

19

NUT, FLANGE (8MM)

94050-08000

$1.49

19

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

20

PIN, SPRING (10X10) (NOT AVAILABLE)

90701-395-000

Unavailable

21

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

21

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

21

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

21

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

22

SCREW, PAN (5X16)

93500-05016-0A

$1.49

23

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

23

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58840-S.

98079-58840

$2.56
