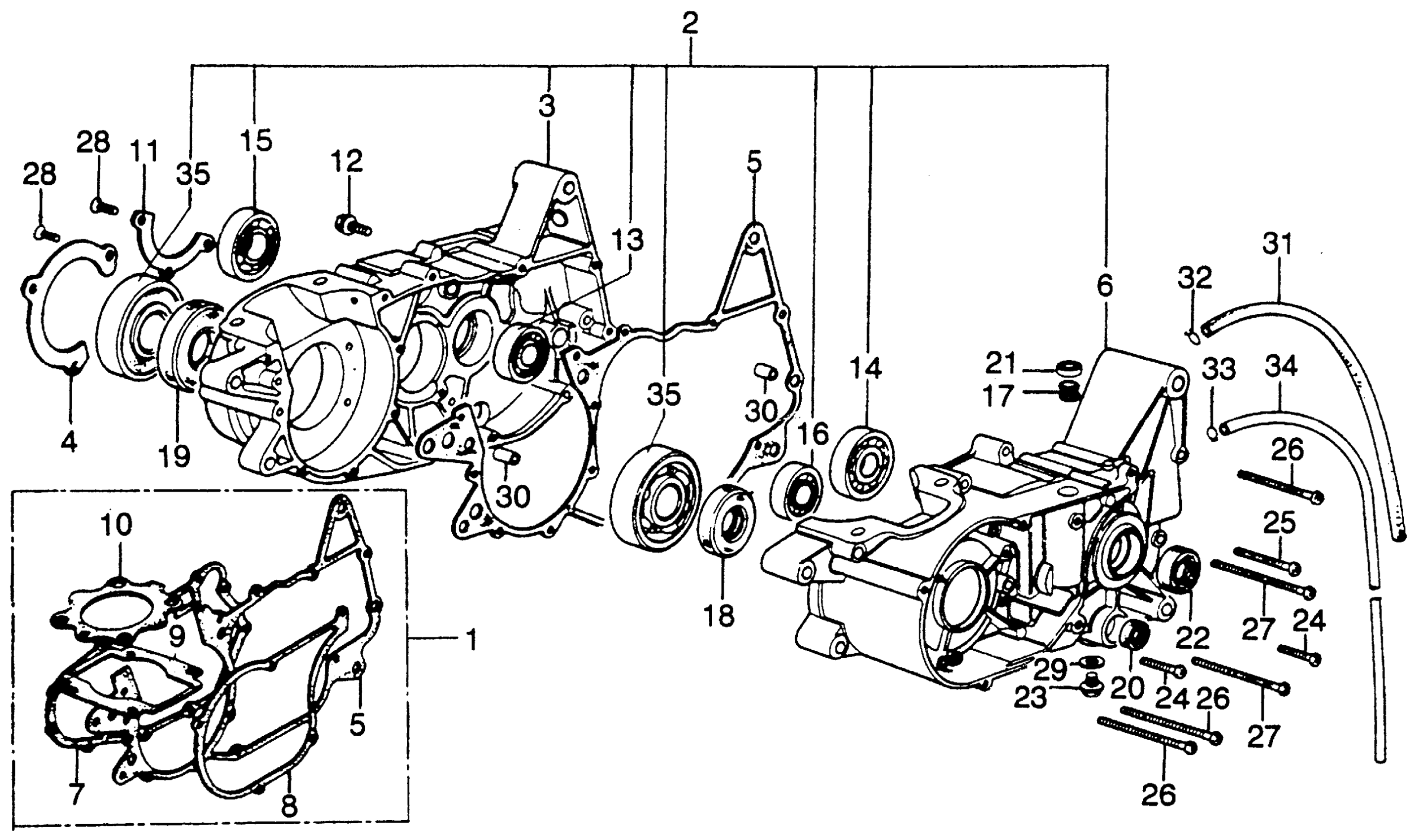

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 CRANKCASE Diagram

#

Description
Price

1

GASKET KIT B (NOT AVAILABLE) | (Optional).

06111-395-000

Unavailable

2

CRANKCASE SET | Use up to Engine SN 1000029

11000-381-010

Unavailable

3

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 1000030

11100-381-000

Unavailable

4

PLATE, BEARING SET (NOT AVAILABLE)

11105-357-010

Unavailable

5

GASKET, CRANKCASE This part replaces 11191-381-000.

11191-381-306

Unavailable

6

CRANKCASE, L. | Use from Engine SN 1000030

11200-381-010

Unavailable

7

GASKET, R. CRANKCASE COVER This part replaces 11394-357-040.

11394-357-306

Unavailable

7

GASKET, R. CRANKCASE COVER

11394-357-306

Unavailable

8

GASKET, L. This part replaces 11395-357-020.

11395-357-306

Unavailable

9

GASKET, CYLINDER This part replaces 12191-381-000.

12191-381-306

Unavailable

10

GASKET, CYLINDER HEAD This part replaces 12251-395-000.

12251-395-405

Unavailable

10

GASKET, CYLINDER HEAD

12251-395-405

Unavailable

11

PLATE, BEARING STOPPER (NOT AVAILABLE)

23216-357-000

Unavailable

12

PIN, KICK STOPPER (NOT AVAILABLE)

28254-357-000

Unavailable

13

BEARING, RADIAL BALL (17X42X12) (TOYO) This part replaces 91004-357-010.

91005-MG3-003

Unavailable

13

BEARING, RADIAL BALL (17X42X12) (TOYO)

91005-MG3-003

Unavailable

14

BEARING (6304) This part replaces 91005-357-010.

96100-63043-00

Unavailable

15

BEARING, RADIAL BALL (6205Z) This part replaces 91006-357-010.

96120-62053-00

Unavailable

15

BEARING, RADIAL BALL (6205Z)

96120-62053-00

Unavailable

16

BEARING, RADIAL BALL (6203) This part replaces 91007-357-010.

96120-62030-00

$17.70

16

BEARING, RADIAL BALL (6203) This part replaces 96120-62030.

96120-62030-00

$17.70

16

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70

17

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

18

OIL SEAL (25X55X10)

91202-357-003

Unavailable

19

OIL SEAL (38X64X13.5) (ARAI)

91203-357-003

Unavailable

20

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

21

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

21

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

22

OIL SEAL (20X34X6) (NOK)

91201-446-004

$6.78

22

OIL SEAL (20X34X6) (NOK) This part replaces 91207-357-000.

91201-446-004

$6.78

23

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

24

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

24

SCREW, PAN (6X35)

93500-06035-0A

$1.49

25

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

25

SCREW, PAN (6X45)

93500-06045-0A

$1.49

26

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

26

SCREW, PAN (6X60)

93500-06060-0A

$1.49

27

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

27

SCREW, PAN (6X65)

93500-06065-0A

$1.53

28

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

28

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN A, DOWEL (10X14)

94301-10140

$2.28

31

BULK HOSE, FUEL (5.5X3000) (5.5X600)

95001-55003-60M

$47.32

32

CLIP, TUBE (B10)

95002-02100

$1.90

33

CLIP, TUBE (C6.5)

95002-35000

$1.49

34

TUBE, VINYL (4.5X6.5X750) (SOURCE: VINTAGE PARTS INC.)

95003-08075-10

Unavailable

35

BEARING, RADIAL BALL (6306) (NOT AVAILABLE)

96102-63063-00

Unavailable
