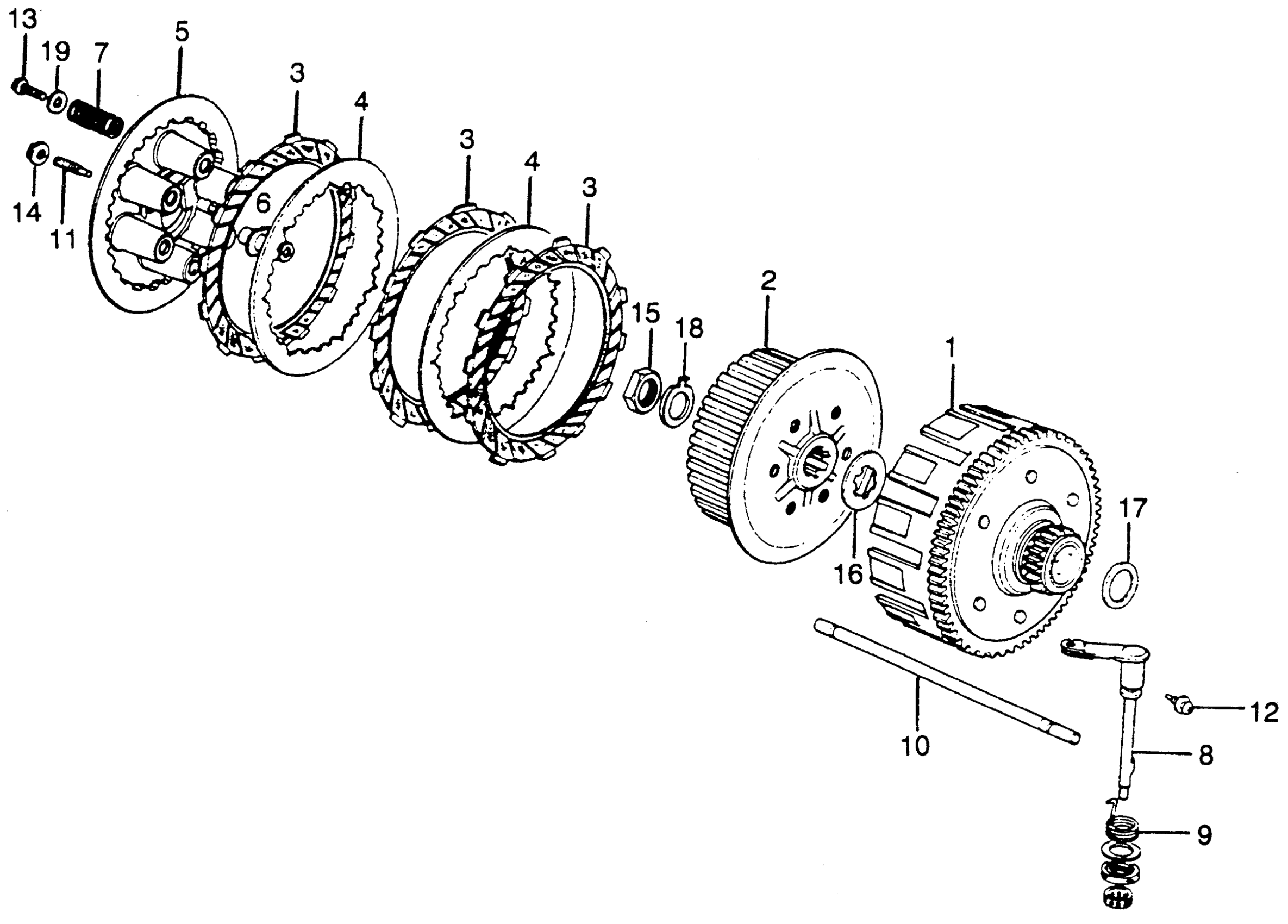

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-358-000

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE)

22120-357-020

Unavailable

3

DISK, CLUTCH FRICTION

22201-286-010

$19.81

3

DISK, CLUTCH FRICTION This part replaces 22201-357-020.

22201-286-010

$19.81

3

DISK, CLUTCH FRICTION This part replaces 22201-369-000.

22201-286-010

$19.81

3

DISK, CLUTCH FRICTION This part replaces 22201-376-000.

22201-286-010

$19.81

4

PLATE B, CLUTCH

22321-KA4-700

$21.59

4

PLATE B, CLUTCH This part replaces 22321-357-010.

22321-KA4-700

$21.59

5

PLATE, CLUTCH PRESSURE

22351-357-030

$46.75

6

PIECE, PRESSURE PLATE CENTER (NOT AVAILABLE)

22352-357-040

Unavailable

7

SPRING, CLUTCH (NOT AVAILABLE)

22401-357-010

Unavailable

8

LEVER, CLUTCH

22810-357-030

Unavailable

9

SPRING, CLUTCH LEVER

22815-357-020

Unavailable

10

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-357-030

Unavailable

11

SCREW, CLUTCH ADJUST (NOT AVAILABLE)

22853-357-010

Unavailable

12

BOLT, SPECIAL (5MM) (NOT AVAILABLE)

90035-357-010

Unavailable

13

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

14

NUT, FLANGE (8MM) (NOT AVAILABLE)

90234-357-000

Unavailable

15

NUT (18MM)

90235-357-000

Unavailable

16

WASHER, THRUST (22MM) (NOT AVAILABLE)

90454-357-010

Unavailable

17

WASHER C, THRUST (25MM)

90459-357-000

$3.60

18

WASHER, LOCK (18MM) (NOT AVAILABLE)

90460-357-000

Unavailable

19

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

19

WASHER (18MM)

90581-831-650

$1.87
