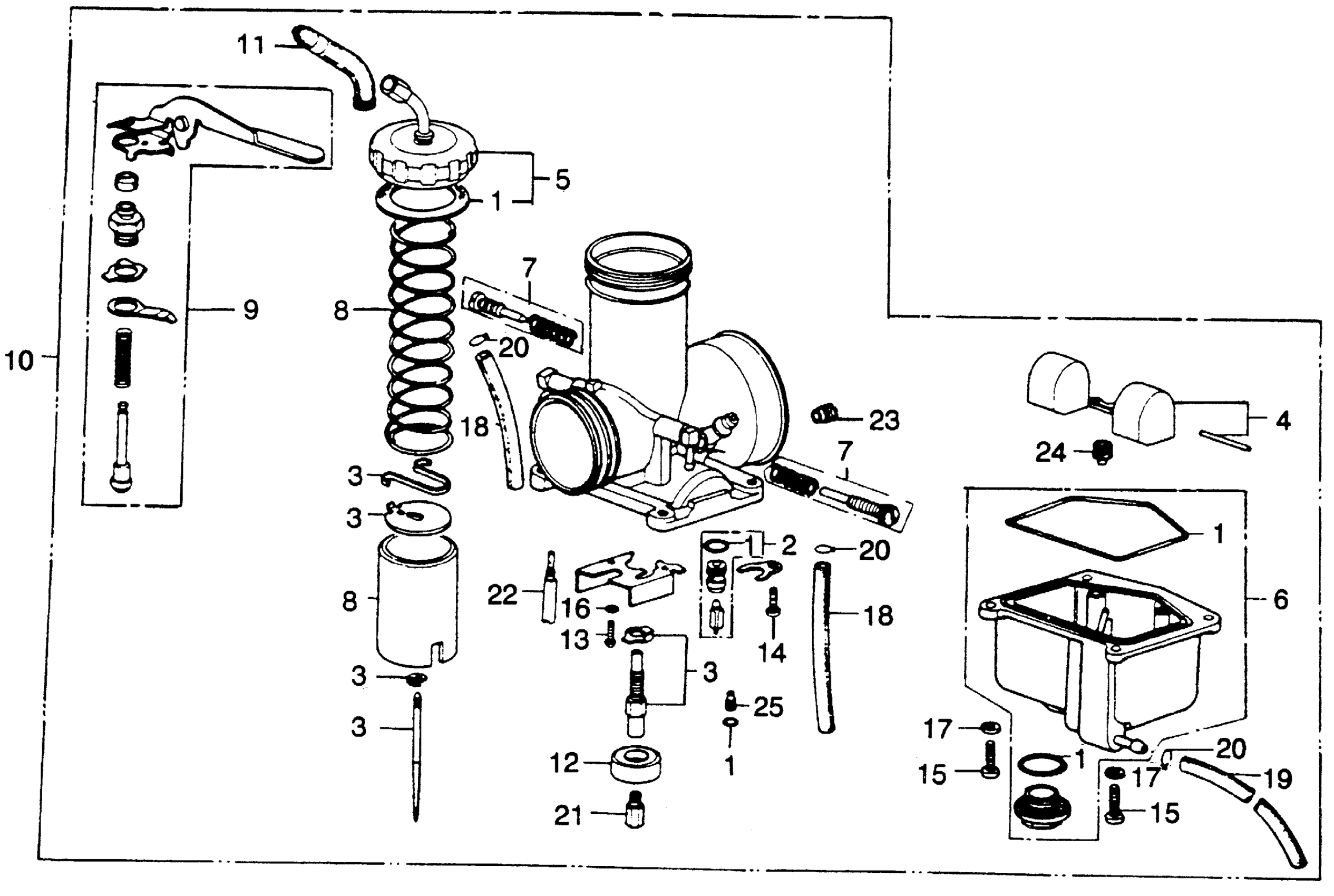

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-395-004.

16010-395-305

Unavailable

1

GASKET SET

16010-395-305

Unavailable

2

VALVE SET, FLOAT

16011-356-004

Unavailable

3

NEEDLE SET, JET

16012-395-004

Unavailable

4

FLOAT SET

16013-360-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-357-014

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-395-004

Unavailable

7

SCREW SET (NOT AVAILABLE) This part replaces 16016-395-004.

16016-358-004

Unavailable

8

VALVE SET, THROTTLE (#2.0) (NOT AVAILABLE) | (Optional).

16022-357-325

Unavailable

8

VALVE SET, THROTTLE (#3.0) (NOT AVAILABLE) | (Optional).

16022-357-425

Unavailable

8

VALVE SET, THROTTLE (#2.5) (NOT AVAILABLE)

16022-357-812

Unavailable

9

VALVE SET, STARTER

16046-361-670

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-395-024

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16118-357-004

Unavailable

12

HOLDER, JET (NOT AVAILABLE)

16168-395-004

Unavailable

13

SCREW, PAN (3X6)

93500-03006-0A

$1.49

14

SCREW, PAN (4X10)

93500-04010-0A

$1.49

15

SCREW, PAN (4X14)

93500-04014-0A

$1.49

16

WASHER, SPRING (3MM)

94111-03000

$1.49

17

WASHER, SPRING (4MM)

94111-04000

$1.49

18

BULK HOSE, FUEL (3.5X3000) (3.5X60)

95001-35003-60M

$20.85

19

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET, MAIN (#105) | (Optional). This part replaces 99101-357-1050.

99113-GHB-1050

$9.97

21

JET, MAIN (#108) | (Optional). This part replaces 99101-357-1080.

99113-GHB-1080

$9.32

21

JET, MAIN (#110) This part replaces 99101-357-1100.

99113-GHB-1100

$9.32

21

JET, MAIN (#112) | (Optional). This part replaces 99101-357-1120.

99113-GHB-1120

$9.89

21

JET, MAIN (#115) | (Optional).

99101-357-1150

$18.70

21

JET, MAIN (#105) | (Optional).

99113-GHB-1050

$9.97

21

JET, MAIN (#108) | (Optional).

99113-GHB-1080

$9.32

21

JET, MAIN (#110)

99113-GHB-1100

$9.32

21

JET, MAIN (#112) | (Optional).

99113-GHB-1120

$9.89

22

JET, SLOW (#48)

99103-358-0480

Unavailable

22

JET, SLOW (#50) (NOT AVAILABLE) | (Optional).

99103-358-0500

Unavailable

22

JET, SLOW (#60) (NOT AVAILABLE) | (Optional).

99103-358-0600

Unavailable

23

JET, AIR (#160) (NOT AVAILABLE) | (Optional).

99105-357-1600

Unavailable

23

JET, AIR (#180) (NOT AVAILABLE) | (Optional).

99105-357-1800

Unavailable

23

JET, AIR (#200)

99105-357-2000

Unavailable

23

JET, AIR (#220) (NOT AVAILABLE) | (Optional).

99105-357-2200

Unavailable

23

JET, AIR (#240) (NOT AVAILABLE) | (Optional).

99105-357-2400

Unavailable

24

JET, SLOW AIR (#130) (NOT AVAILABLE)

99164-601-1300

Unavailable

25

JET, POWER (#135) (NOT AVAILABLE) | (Optional).

99164-601-1350

Unavailable

25

JET, SLOW AIR (#140) (NOT AVAILABLE)

99164-601-1400

Unavailable

25

JET, POWER (#145) (NOT AVAILABLE) | (Optional).

99164-601-1450

Unavailable
