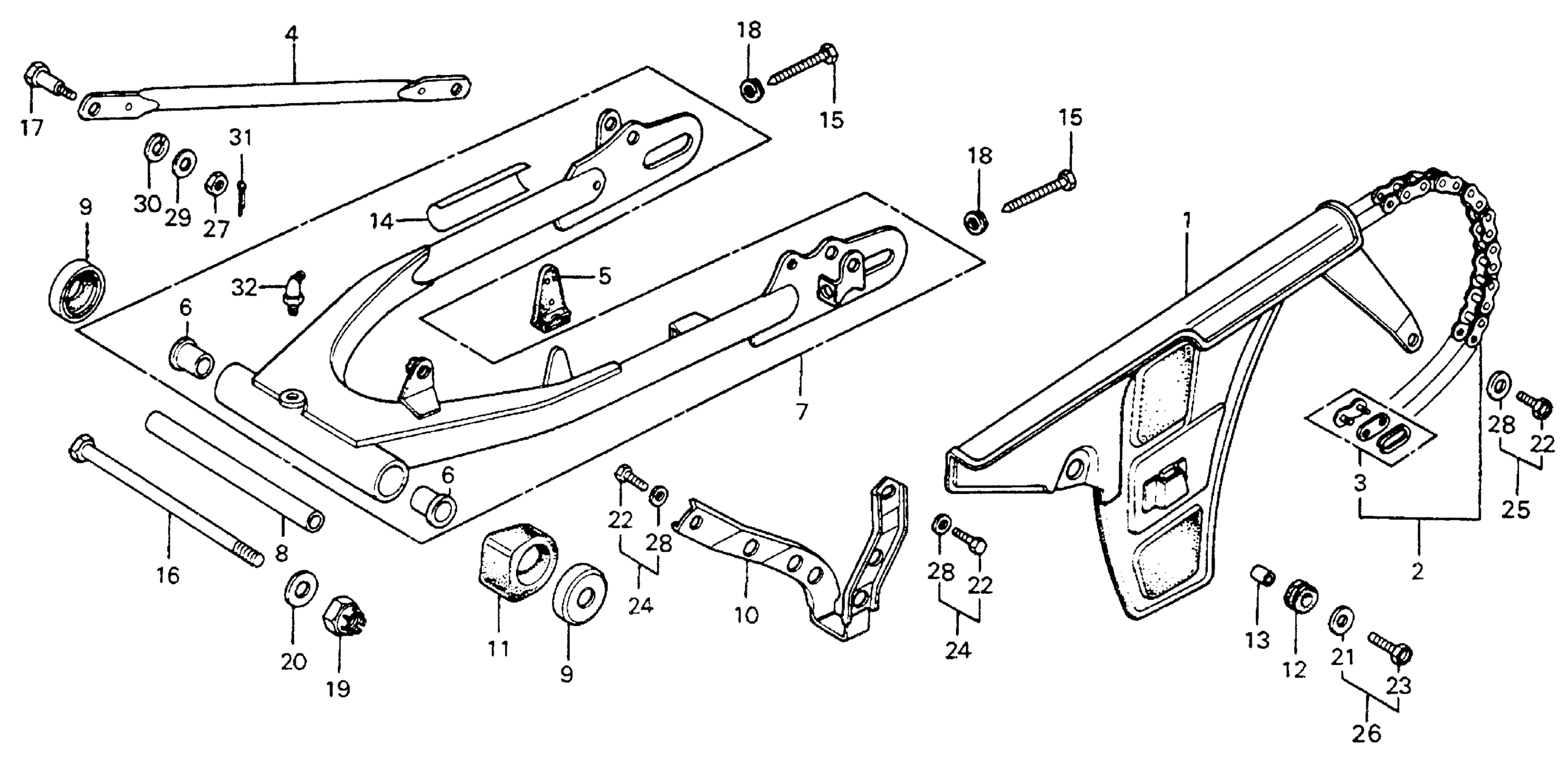

Honda MR175A MOTORCYCLE, JPN, VIN# MR175-1000001 TO MR175-1008522 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) This part replaces 40510-373-670ZA.

40510-373-671ZA

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-373-671ZA

Unavailable

2

CHAIN, DRIVE (118L) (DAIDO)

40530-304-000

Unavailable

2

CHAIN, DRIVE (118L) (DAIDO) This part replaces 40530-373-003.

40530-304-000

Unavailable

3

MASTER LINK

40531-237-680

$4.15

3

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$4.15

3

MASTER LINK (DAIDO)

40531-355-013

$4.15

3

MASTER LINK This part replaces 40531-360-701.

40533-943-003

$4.56

3

MASTER LINK This part replaces 40531-399-003.

40533-943-003

$4.56

3

MASTER LINK

40533-943-003

$4.56

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-360-000

Unavailable

5

CAP, CHAIN CASE STAY

52106-373-000

Unavailable

6

BUSH, PIVOT THRUST This part replaces 52109-360-300.

52109-360-310

$41.11

6

BUSH, PIVOT THRUST

52109-360-310

$41.11

7

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52110-373-670ZA

Unavailable

8

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-360-010

Unavailable

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

9

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

10

GUIDE, CHAIN

52156-360-700

Unavailable

11

SLIDER, CHAIN (NOT AVAILABLE)

52170-360-000

Unavailable

12

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

13

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

14

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

15

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

16

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-360-000

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

18

NUT, HEX. (8MM)

90309-357-000

$3.40

19

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

20

WASHER, TENSIONER ARM (NOT AVAILABLE)

90505-708-000

Unavailable

21

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-10000

$1.49

31

PIN, COTTER (2.0X15)

94201-20150

$1.49

32

FITTING, GREASE (B.76S)

96201-80000

$2.56
