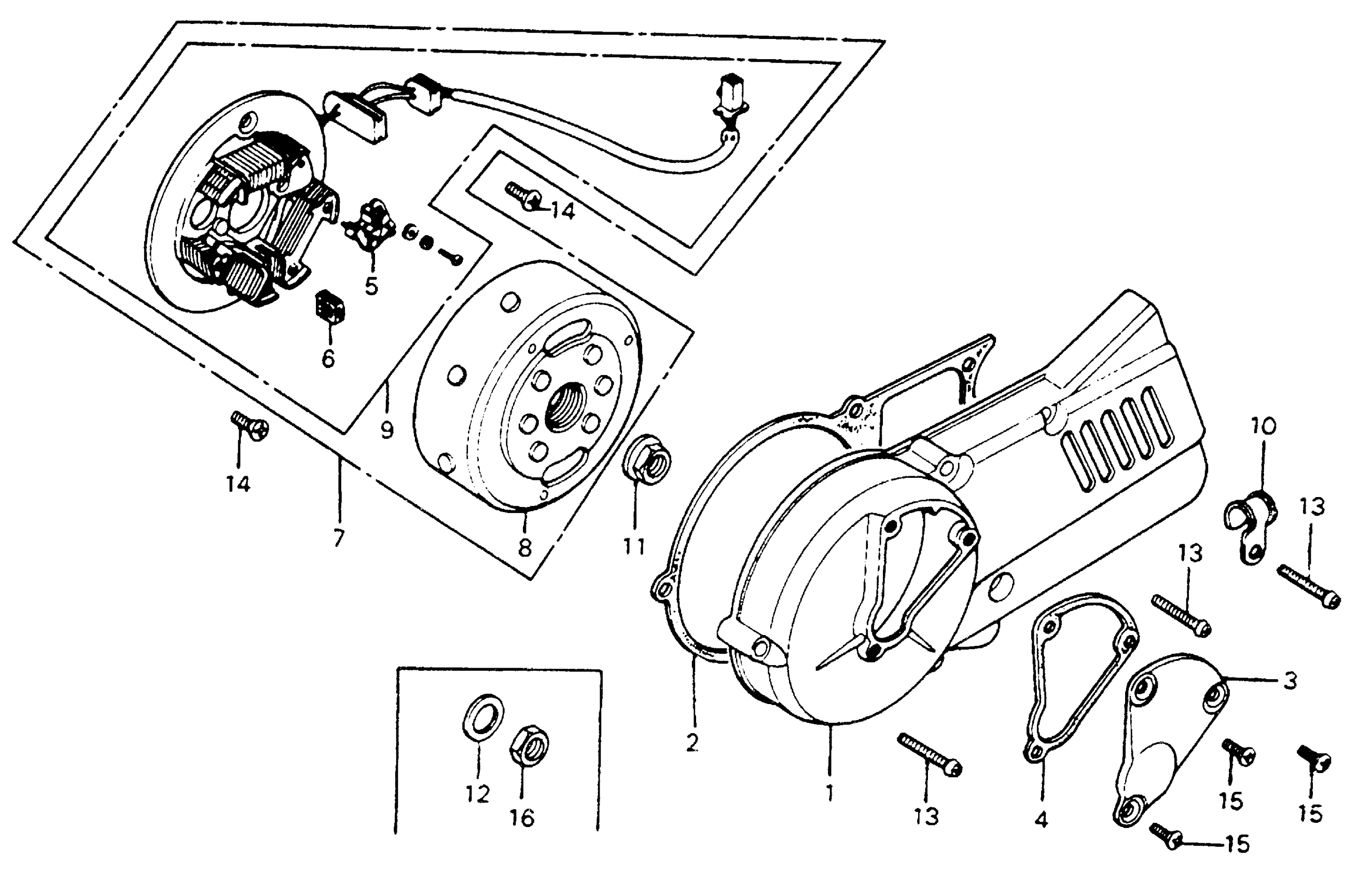

Honda MR175A MOTORCYCLE, JPN, VIN# MR175-1000001 TO MR175-1008522 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-373-000

Unavailable

GASKET, L. This part replaces 11395-360-700.

11395-360-306

Unavailable

COVER, POINTS

11451-373-000

Unavailable

GASKET, POINTS COVER (NOT AVAILABLE)

11495-361-000

Unavailable

POINTS ASSY. (KOKUSAN)

30200-361-003

Unavailable

FELT, OIL (NOT AVAILABLE)

30205-361-003

Unavailable

ALTERNATOR ASSY. (KOKUSAN) (NOT AVAILABLE)

31100-373-003

Unavailable

FLYWHEEL (KOKUSAN) (NOT AVAILABLE)

31122-373-003

Unavailable

STATOR (KOKUSAN) (NOT AVAILABLE)

31141-373-003

Unavailable

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

WASHER, PLAIN (12MM)

90437-611-000

$4.22

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32)

93500-06032-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

NUT, HEX. (12MM)

94001-12000-0S

$1.66
