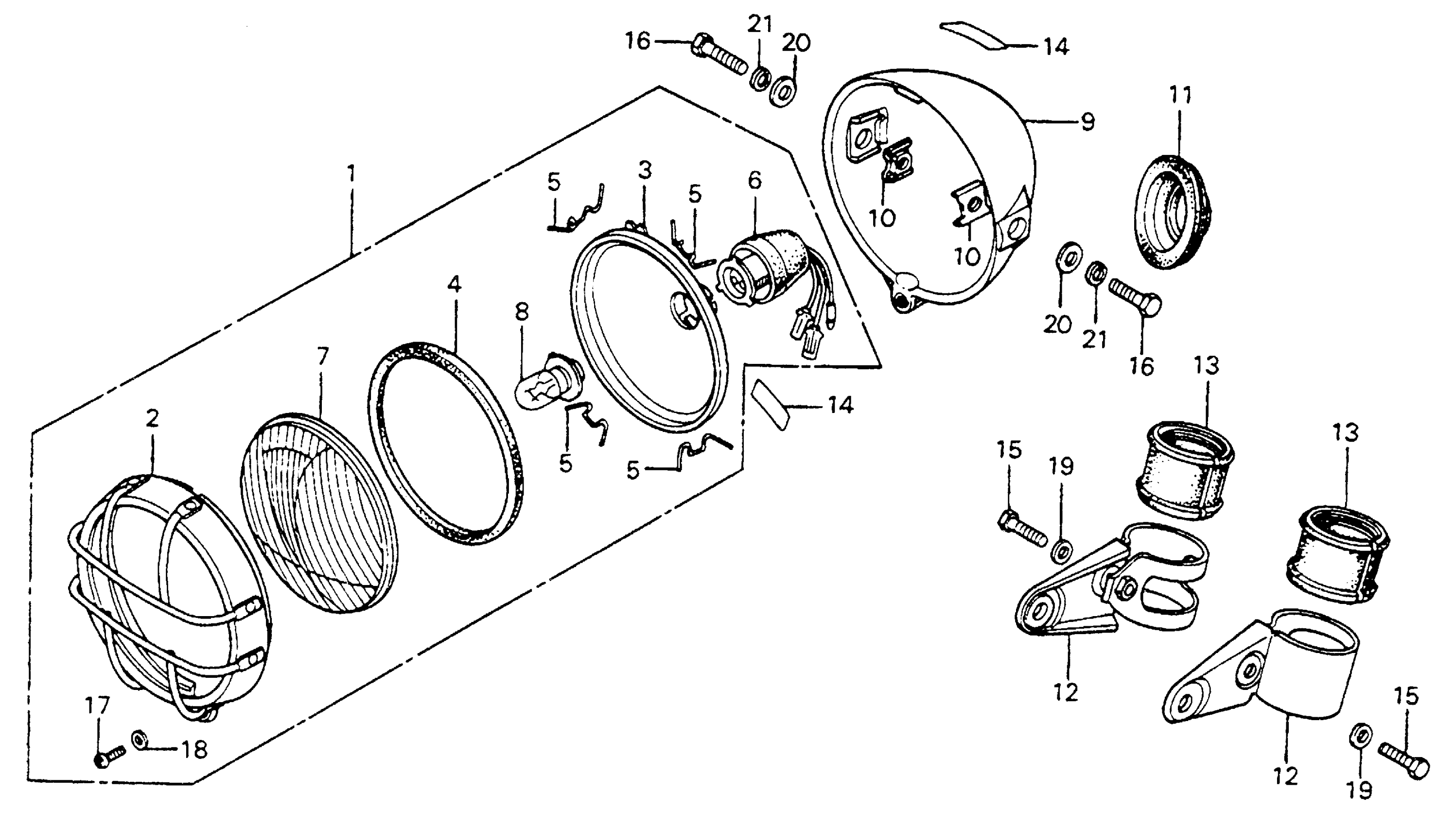

Honda MR175A MOTORCYCLE, JPN, VIN# MR175-1000001 TO MR175-1008522 HEADLIGHT + HEADLIGHT CASE K Diagram

#

Description
Price

1

HEADLIGHT ASSY. (6V25/25W) (NOT AVAILABLE)

33100-355-970

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-355-970

Unavailable

3

REFLECTOR, HEADLIGHT

33104-028-003

Unavailable

4

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

5

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

6

SOCKET, HEADLIGHT (NOT AVAILABLE)

33110-121-003

Unavailable

7

LENS, HEADLIGHT (STANLEY) (NOT AVAILABLE)

33121-065-003

Unavailable

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

9

CASE *NH42MC* This part replaces 61301-115-000ZA.

61301-115-010ZA

Unavailable

10

NUT, HEADLIGHT CASE

61303-105-000

$3.81

11

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61304-115-000

Unavailable

12

STAY, HEADLIGHT *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

61311-373-670ZA

Unavailable

13

RUBBER, HEADLIGHT STAY (NOT AVAILABLE) This part replaces 61313-373-670.

61313-373-671

Unavailable

13

RUBBER, HEADLIGHT STAY (NOT AVAILABLE)

61313-373-671

Unavailable

14

LABEL, CAUTION (NOT AVAILABLE)

87560-373-670

Unavailable

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (8X25) This part replaces 92000-08025.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

17

SCREW, PAN (5X12)

93500-05012-0A

$1.49

18

WASHER, PLAIN (5MM)

94101-05000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49
