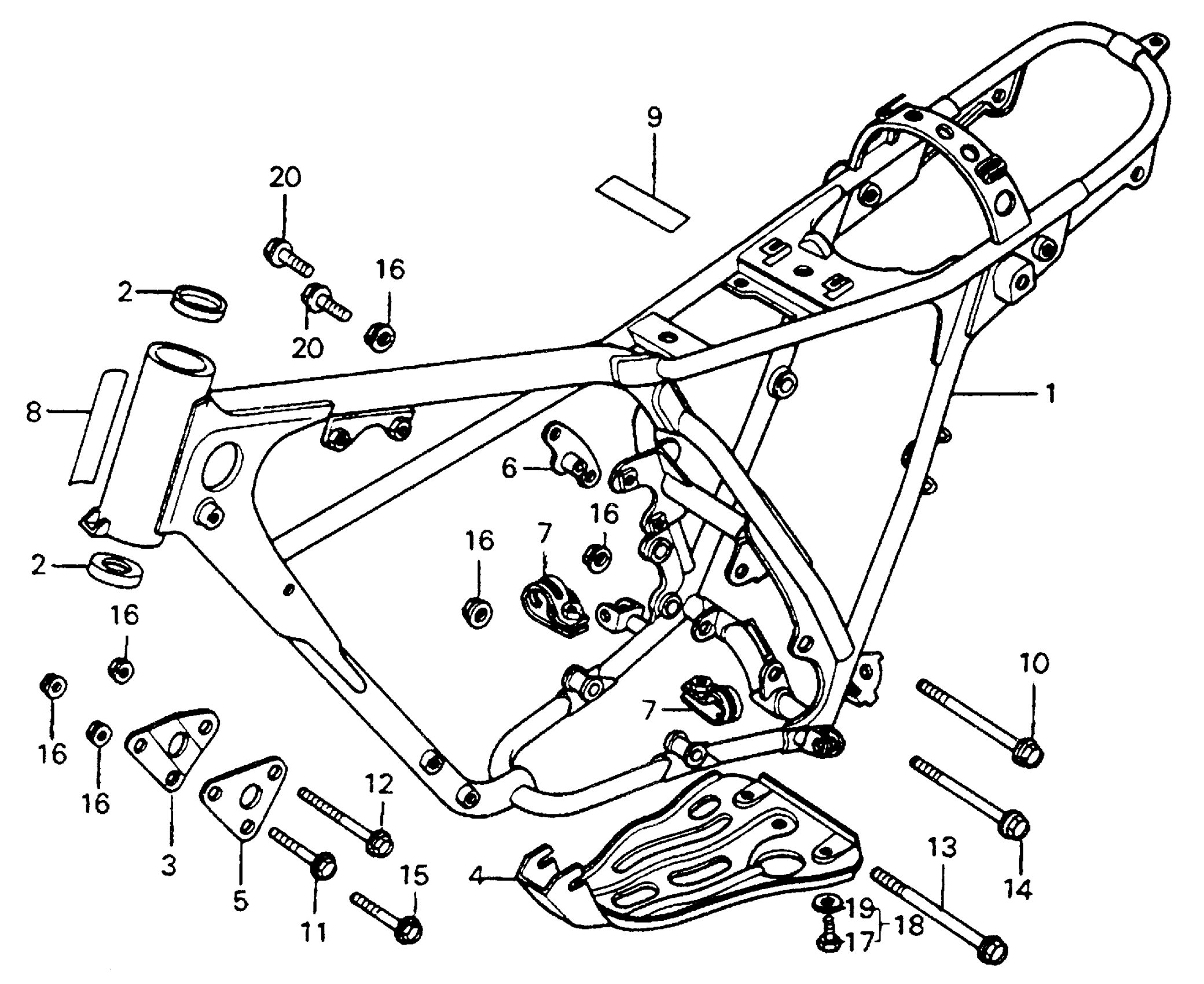

Honda MR175A MOTORCYCLE, JPN, VIN# MR175-1000001 TO MR175-1008522 FRAME Diagram

FRAME *NH1* (BLACK)

50100-373-670ZA

Unavailable

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50351-360-000

Unavailable

PLATE, SKID *NH1* (BLACK) | Use from Frame SN 1002419

50351-361-000B

Unavailable

PLATE, SKID *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN 1002418

50351-373-000ZA

Unavailable

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50352-360-000

Unavailable

BAND, SKID PLATE SETTING (NOT AVAILABLE)

50358-361-000

Unavailable

PLATE, NAME

87125-041-680

$4.92

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

BOLT, HEX. (8X59) (NOT AVAILABLE)

90101-360-000

Unavailable

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

BOLT, HEX. (8X147) (NOT AVAILABLE)

90103-360-000

Unavailable

BOLT, HEX. (8X104) This part replaces 90104-360-000.

90104-360-405

Unavailable

BOLT, HEX. (8X63) (NOT AVAILABLE)

90105-361-000

Unavailable

NUT, HEX. (8MM)

90309-357-000

$3.40

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
