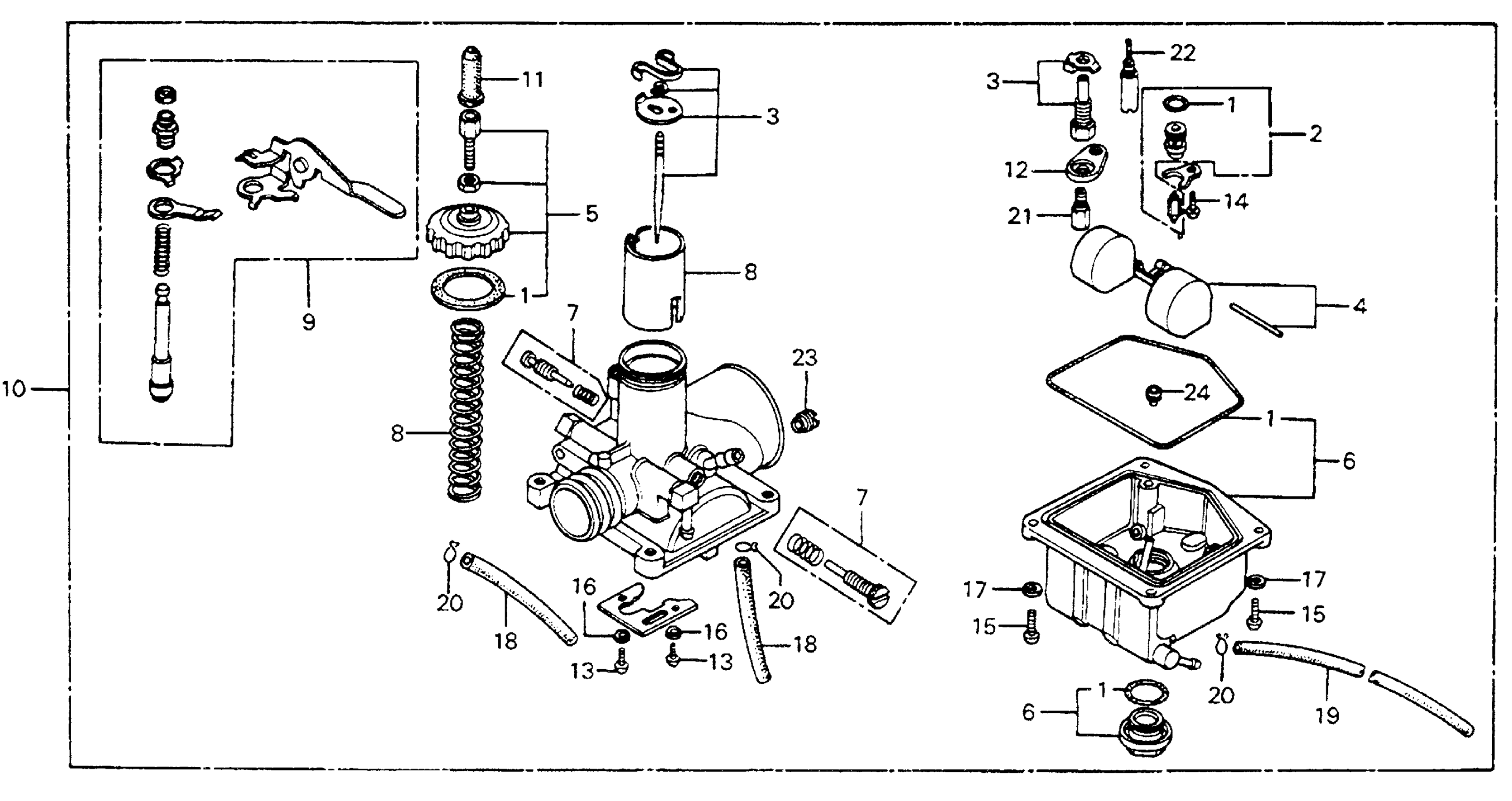

Honda MR175A MOTORCYCLE, JPN, VIN# MR175-1000001 TO MR175-1008522 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-360-014.

16010-360-305

Unavailable

1

GASKET SET

16010-360-305

Unavailable

2

VALVE SET, FLOAT

16011-356-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-360-700.

16011-356-004

Unavailable

3

NEEDLE SET, JET

16012-373-004

Unavailable

4

FLOAT SET

16013-360-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-360-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-360-810

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-358-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-358-004

Unavailable

8

VALVE SET, THROTTLE (#2.5) (NOT AVAILABLE) | (Optional).

16022-373-305

Unavailable

8

VALVE SET, THROTTLE (#3.5) (NOT AVAILABLE) | (Optional).

16022-373-405

Unavailable

9

VALVE SET, STARTER

16046-361-670

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-373-004

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16118-360-004

Unavailable

12

HOLDER, JET (NOT AVAILABLE)

16168-360-700

Unavailable

13

SCREW, PAN (3X6)

93500-03006-0A

$1.49

14

SCREW, PAN (4X10)

93500-04010-0A

$1.49

15

SCREW, PAN (4X14)

93500-04014-0A

$1.49

16

WASHER, SPRING (3MM)

94111-03000

$1.49

17

WASHER, SPRING (4MM)

94111-04000

$1.49

18

BULK HOSE, FUEL (3.5X3000) (3.5X60)

95001-35003-60M

$20.85

19

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.43

21

JET, MAIN (#120) | (Optional).

99101-357-1200

$19.84

21

JET, MAIN (#122)

99101-357-1220

$17.99

21

JET, MAIN (#125) | (Optional).

99101-357-1250

$9.98

21

JET, MAIN (#128) | (Optional).

99101-357-1280

$9.07

22

JET, SLOW (#48) | (Optional).

99103-373-0480

Unavailable

22

JET, SLOW (#52) (NOT AVAILABLE)

99103-373-0520

Unavailable

22

JET, SLOW (#58) (NOT AVAILABLE) | (Optional).

99103-373-0580

Unavailable

23

JET, AIR (#160) (NOT AVAILABLE) | (Optional).

99105-357-1600

Unavailable

23

JET, AIR (#180) (NOT AVAILABLE) | (Optional).

99105-357-1800

Unavailable

23

JET, AIR (#200)

99105-357-2000

Unavailable

23

JET, AIR (#220) (NOT AVAILABLE) | (Optional).

99105-357-2200

Unavailable

23

JET, AIR (#240) (NOT AVAILABLE) | (Optional).

99105-357-2400

Unavailable

24

JET, STARTER (NOT AVAILABLE)

99164-601-0980

Unavailable
