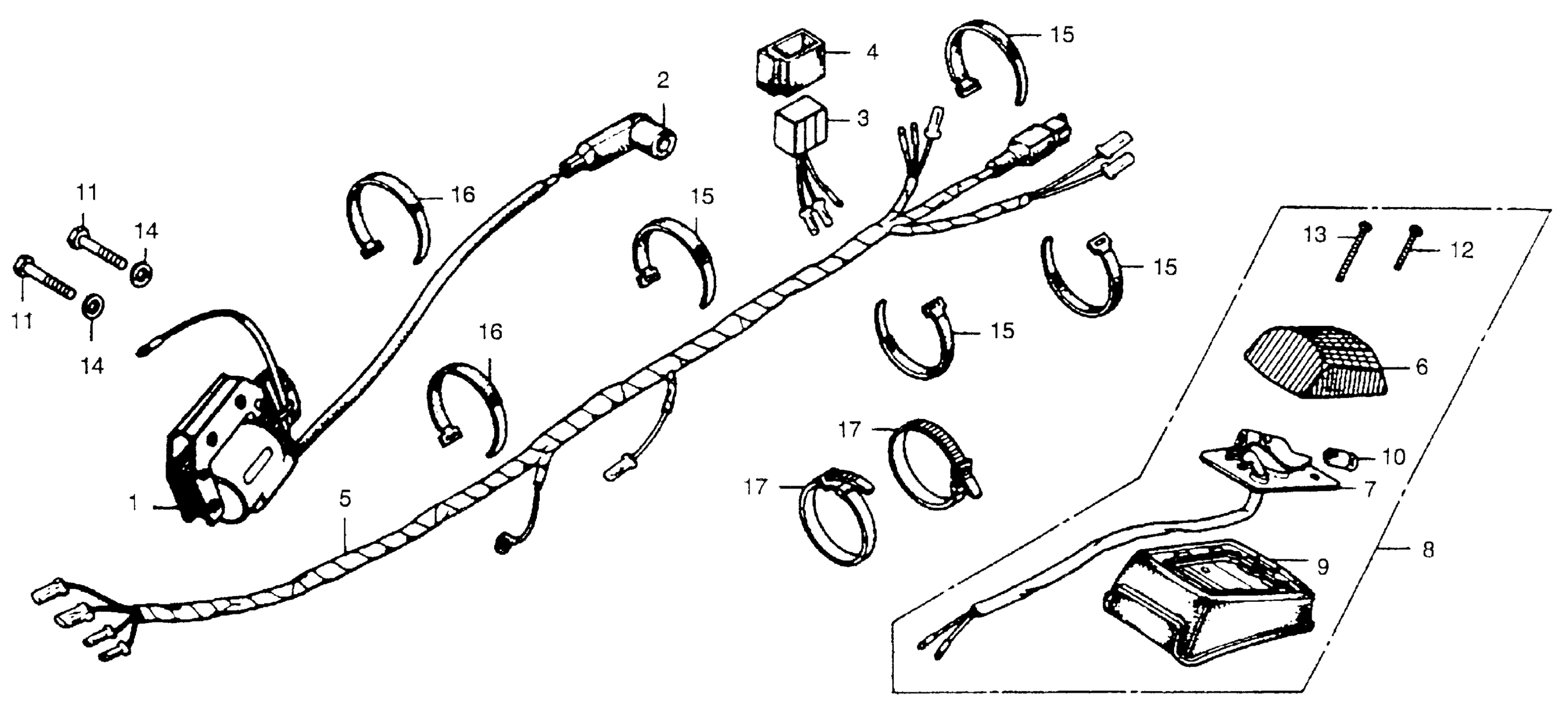

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 WIRE HARNESS + TAILLIGHT Diagram

#

Description
Price

1

COIL, IGNITION This part replaces 30500-358-003.

30500-950-405

$118.02

1

COIL, IGNITION

30500-950-405

$118.02

2

CAP ASSY., NOISE SUPPRESSOR

30700-373-153

Unavailable

3

RECTIFIER ASSY. (NOT AVAILABLE)

31700-131-008

Unavailable

4

RUBBER, SILICON RECTIFIER (NOT AVAILABLE)

31701-131-000

Unavailable

5

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 2102110 This part replaces 32100-373-670.

32100-373-671

Unavailable

5

WIRE HARNESS (NOT AVAILABLE)

32100-373-671

Unavailable

6

LENS, TAILLIGHT

33141-373-670

Unavailable

7

BASE, TAILLIGHT (NOT AVAILABLE)

33142-373-670

Unavailable

8

TAILLIGHT UNIT (NOT AVAILABLE)

33701-373-771

Unavailable

9

BODY, TAILLIGHT (NOT AVAILABLE) This part replaces 33702-373-770.

33702-373-670

Unavailable

10

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

11

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

11

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

12

SCREW, PAN (3X18) (SOURCE: VINTAGE PARTS INC.)

93500-03018-3B

Unavailable

13

SCREW, PAN (3X25) (SOURCE: VINTAGE PARTS INC.)

93500-03025-3B

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

BAND B1, CABLE

32161-404-000

$2.23

15

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

16

BAND A2, CABLE

95014-61200

$2.33

17

BAND B1, CABLE

95014-62100

$1.64
