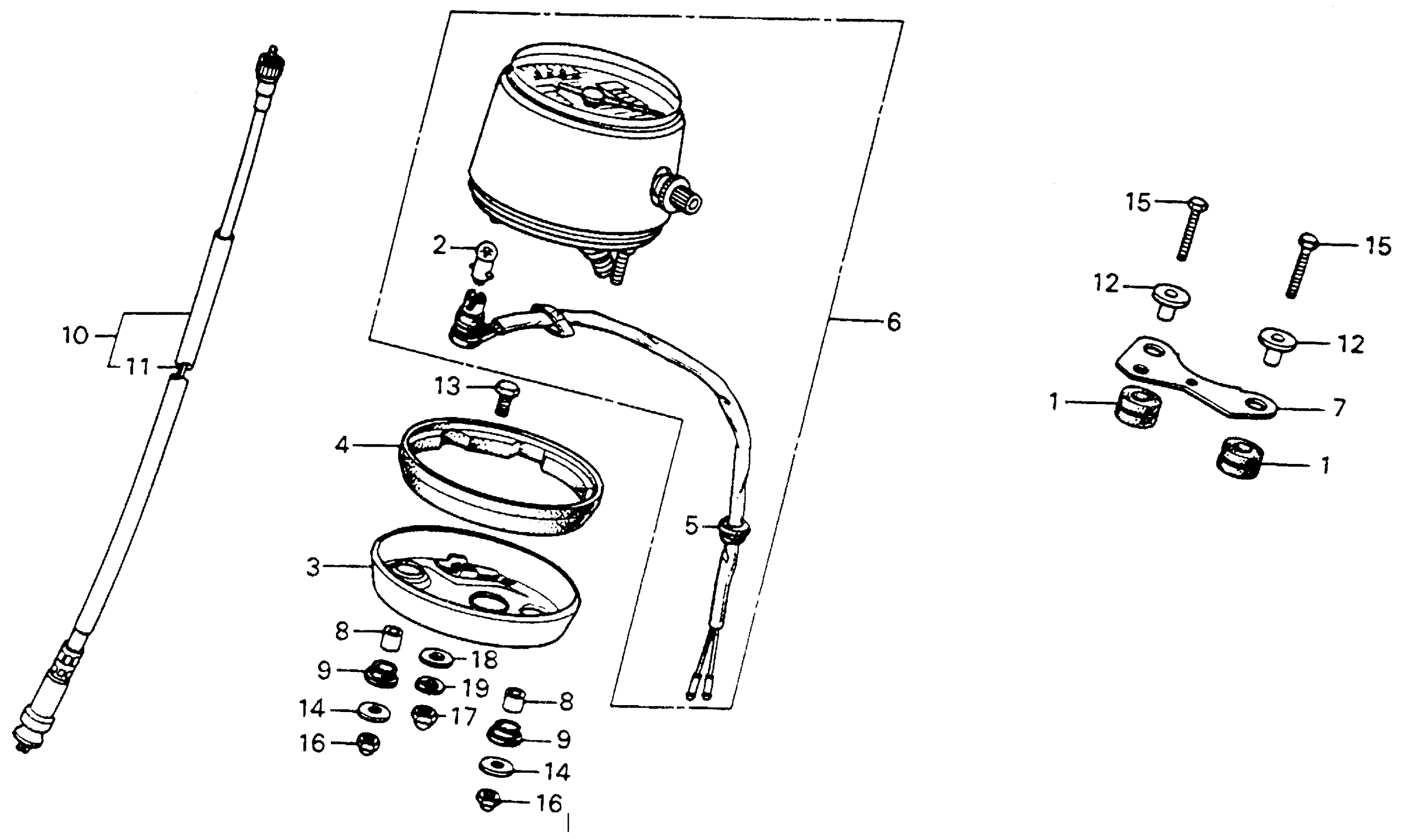

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 SPEEDOMETER Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.80

2

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.47

3

RING, L. METER SETTING

37112-453-008

Unavailable

4

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

5

GROMMET, WIRE (NOT AVAILABLE)

37115-453-000

Unavailable

6

SPEEDOMETER ASSY. (MPH/KPH) (NIPPON SEIKI)

37200-373-781

Unavailable

7

STAY, SPEEDOMETER (NOT AVAILABLE)

37212-373-670

Unavailable

8

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

9

RUBBER, METER SETTING

37244-307-670

$2.47

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-KB5-000.

44830-KB5-720

Unavailable

10

CABLE ASSY., SPEEDOMETER

44830-KB5-720

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-361-000.

44830-KB5-720

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-361-010.

44830-KB5-720

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-419-670.

44830-KB5-720

Unavailable

12

COLLAR C, MOUNTING

80109-329-000

Unavailable

13

BOLT, METER SETTING

90159-356-000

$4.66

14

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.63

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.63

16

NUT, CAP (6MM)

94021-06220-0S

$1.49

17

NUT, CAP (8MM)

94021-08000-0S

$1.60

18

WASHER, PLAIN (8MM)

94101-08000

Unavailable

19

WASHER, SPRING (8MM)

94111-08000

Unavailable
