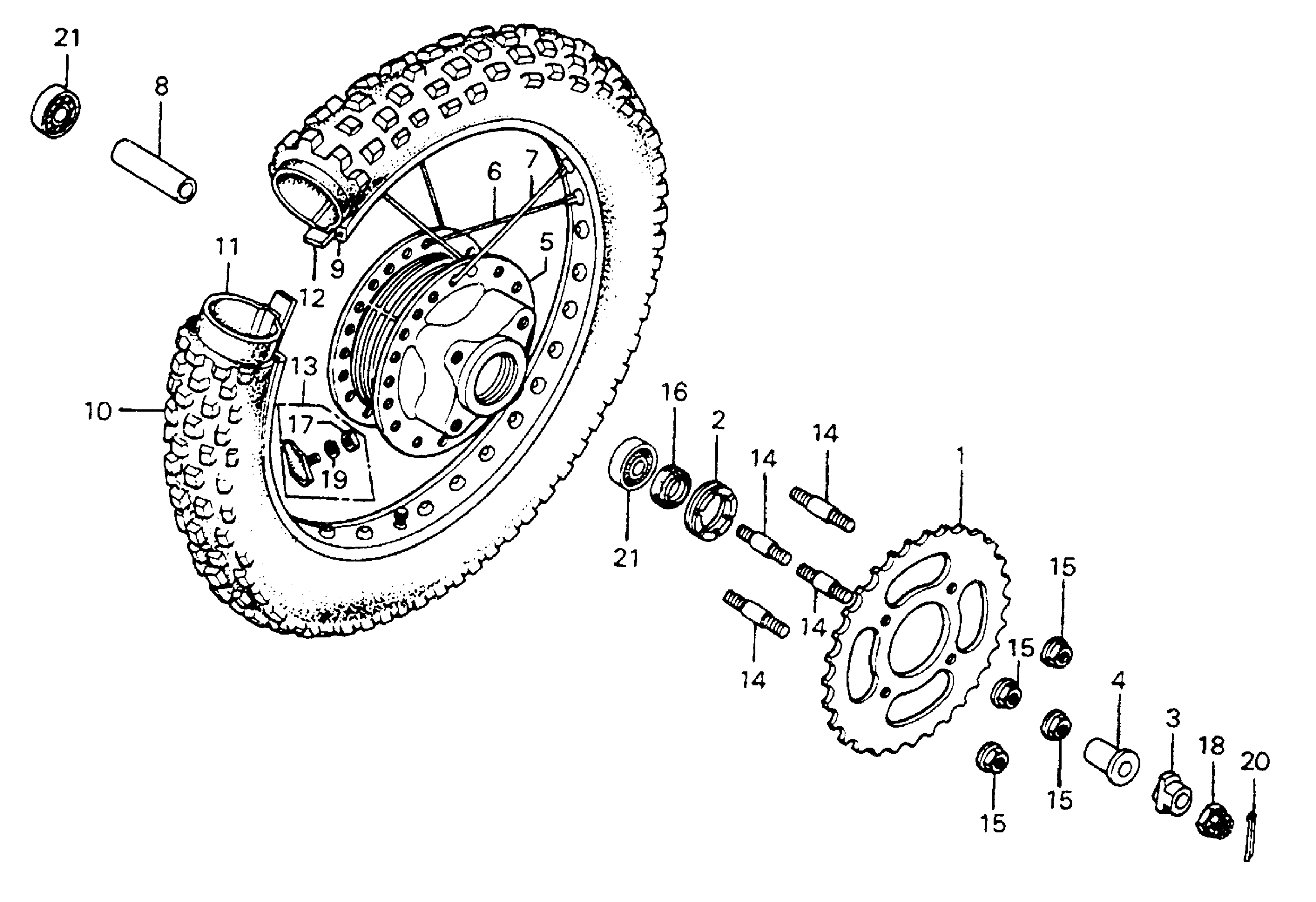

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET (43T) This part replaces 41201-373-000.

41201-402-000

Unavailable

2

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-360-000

Unavailable

3

COLLAR, RR. WHEEL AXLE (NOT AVAILABLE)

42306-360-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-360-000

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-400-000

Unavailable

6

SPOKE A, RR.

42606-360-305

$5.57

7

SPOKE B, RR.

42607-360-305

$5.57

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-360-700

Unavailable

9

RIM, RR. WHEEL (NOT AVAILABLE)

42701-360-701

Unavailable

10

TIRE, RR. (3.50-18 4PR) (BS) (NOT AVAILABLE)

42711-360-003

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

13

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

13

STOPPER, BEAD (1.85) This part replaces 42715-360-006.

42715-KA2-680

$32.27

13

STOPPER, BEAD (1.85) This part replaces 42715-444-000.

42715-KA2-680

$32.27

14

BOLT, STUD (10X48MM)

90125-323-000

Unavailable

15

NUT, HEX. (10MM)

90308-357-000

$4.85

16

OIL SEAL (21X35X7)

90752-035-003

$6.41

16

OIL SEAL (21X35X7) This part replaces 90752-360-006.

90752-035-003

$6.41

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
