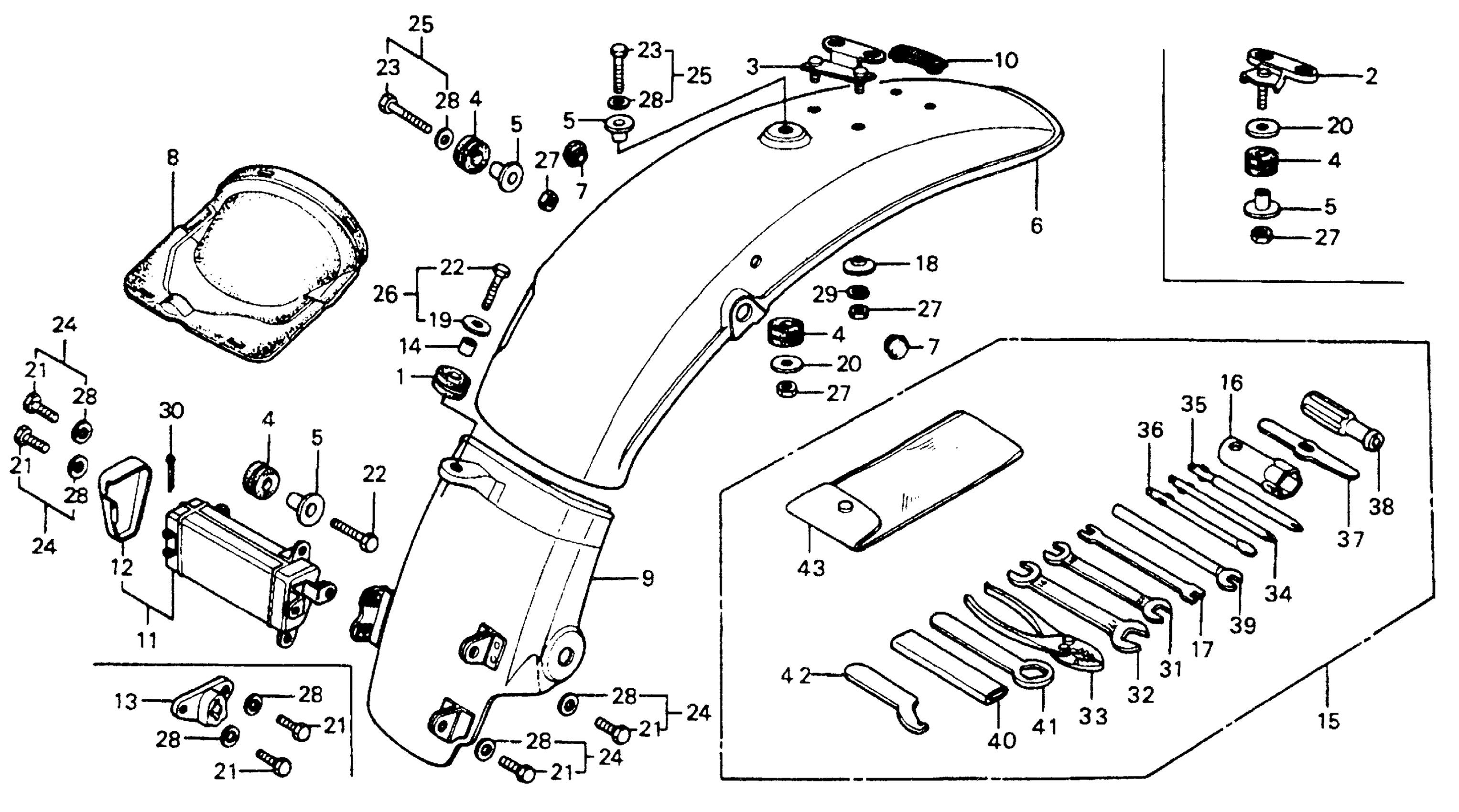

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 REAR FENDER + TOOL BOX Diagram

#

Description
Price

1

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

1

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

STAY, TAILLIGHT (NOT AVAILABLE)

33720-373-770

Unavailable

4

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

5

COLLAR, RR. FENDER

61105-428-000

Unavailable

6

FENDER, RR. (NOT AVAILABLE) This part replaces 80101-373-780ZA.

80101-382-670

Unavailable

7

PLUG, HOLE (10MM) This part replaces 80102-355-670.

91601-SR3-000

Unavailable

7

PLUG

91601-SR3-000

Unavailable

8

COVER, RR. FENDER (NOT AVAILABLE)

80104-373-000

Unavailable

9

FENDER B, RR.

80105-373-000

Unavailable

10

PLUG, RR. FENDER (NOT AVAILABLE)

80109-373-770

Unavailable

11

BOX, TOOL *NH1* (BLACK) (NOT AVAILABLE)

83500-373-000ZA

Unavailable

12

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

14

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

15

TOOL SET (NOT AVAILABLE)

89010-373-000

Unavailable

16

WRENCH, BOX (P21) (NOT AVAILABLE)

89216-357-000

Unavailable

17

SPANNER, SPOKE (NOT AVAILABLE)

89217-360-000

Unavailable

18

WASHER (6X20)

90401-373-770

$5.16

20

WASHER (6.5X20)

90545-292-000

$1.77

22

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

BOLT-WASHER (6X16)

93401-06016-00

$1.55

24

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.55

24

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.55

25

BOLT-WASHER (6X25)

93401-06025-00

$1.49

25

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$1.49

26

BOLT-WASHER (6X20)

93404-06020-00

$1.55

26

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

30

PIN, COTTER (2.0X35)

94201-20350

$1.49

31

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

32

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

33

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

34

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

35

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

36

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

37

LEVER, TIRE

99003-40000

$1.49

38

GRIP

99003-50000

$3.27

39

BAR B, HANDLE

99005-02000

$2.52

40

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

41

WRENCH, EYE (19MM)

99006-19000

$4.16

42

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

43

BAG, TOOL

89101-ME5-670

Unavailable

43

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
