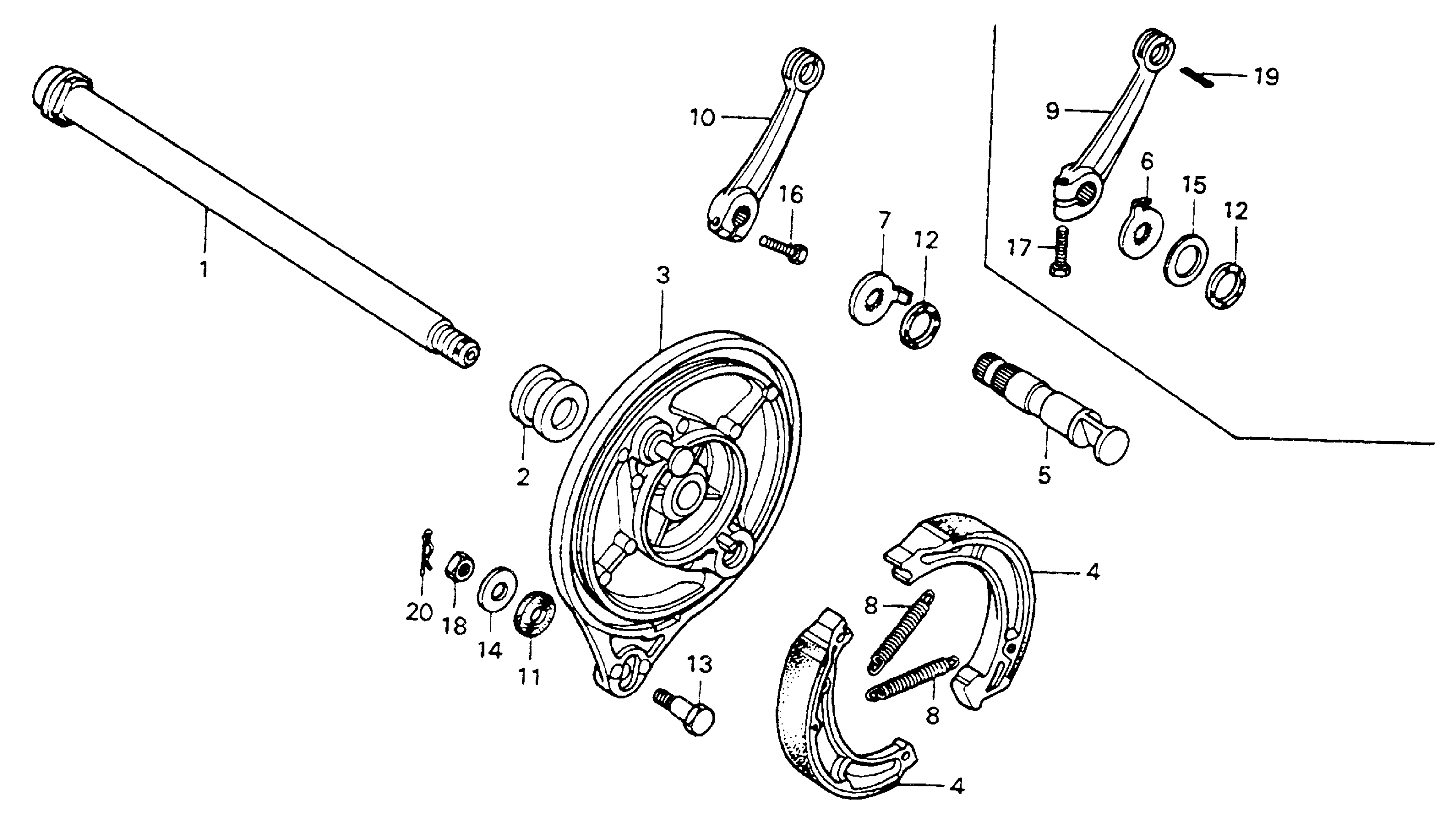

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$26.25

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-361-000

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-360-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-400-010

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$26.25

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$26.25

5

CAM, RR. BRAKE This part replaces 43141-400-000.

43141-400-010

$20.80

5

CAM, RR. BRAKE

43141-400-010

$20.80

7

INDICATOR, RR. BRAKE

43145-400-000

$7.64

8

SPRING, BRAKE SHOE

43151-110-000

$2.80

10

ARM, RR. BRAKE (NOT AVAILABLE)

43410-400-000

Unavailable

11

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.75

12

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

13

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$7.99

13

BOLT, RR. BRAKE STOPPER

90127-400-000

$7.99

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

16

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

18

NUT, HEX. (8MM)

94001-08000-0S

$1.19

20

PIN, LOCK (8MM)

94251-08000

$1.12
