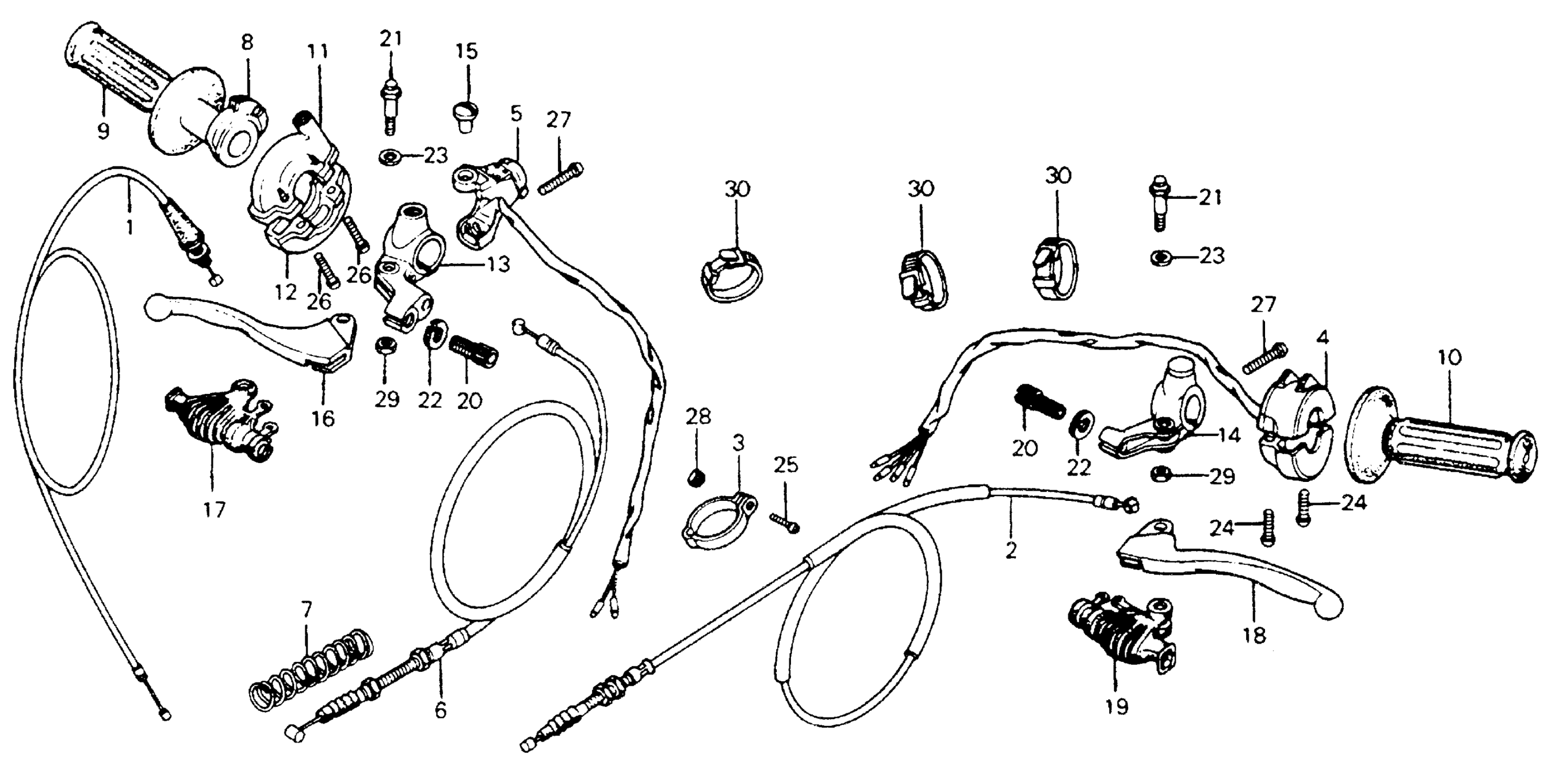

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 HANDLE SWITCH + LEVER + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-360-000

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-373-780

Unavailable

3

CLAMP, TACHOMETER CABLE This part replaces 22877-360-000.

22878-KB4-700

Unavailable

3

CLAMP, TACHOMETER CABLE

22878-KB4-700

Unavailable

4

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

35300-373-671

Unavailable

5

SWITCH ASSY., ENGINE STOP (TOYO) (NOT AVAILABLE)

35320-360-003

Unavailable

6

CABLE, FR. BRAKE

45450-KF9-P00

$32.27

6

CABLE, FR. BRAKE This part replaces 45450-373-000.

45450-KF9-P00

$32.27

6

CABLE, FR. BRAKE This part replaces 45450-427-770.

45450-KF9-P00

$32.27

6

CABLE, FR. BRAKE This part replaces 45450-437-000.

45450-KF9-P00

$32.27

6

CABLE, FR. BRAKE This part replaces 45450-437-010.

45450-KF9-P00

$32.27

7

SPRING, FR. BRAKE CABLE

45454-360-010

$4.77

8

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-357-010

Unavailable

9

GRIP, R. HANDLEBAR

53165-116-670

$11.18

10

GRIP, L. HANDLEBAR

53166-116-670

$11.20

11

HOUSING A, GRIP

53167-357-010

Unavailable

12

HOUSING B, GRIP

53168-357-010

Unavailable

13

BRACKET, R. HANDLEBAR

53171-312-003

$48.61

14

BRACKET, L. HANDLEBAR

53172-310-010

$51.40

15

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.29

16

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$28.49

16

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$28.49

17

COVER, R. CONTROL LEVER

53176-329-000

$11.43

18

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

19

COVER, L. CONTROL LEVER

53179-329-000

$13.87

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

21

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.41

22

NUT, FIXING

90321-315-670

$6.97

22

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

23

WASHER (7X12)

90501-310-000

$1.48

24

SCREW, PAN (5X16)

93500-05016-0A

$0.90

25

SCREW, PAN (5X18)

93500-05018-0A

$0.82

26

SCREW, PAN (5X20)

93500-05020-0A

$0.82

27

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.10

27

SCREW, PAN (6X28)

93500-06028-0A

$1.10

28

NUT, HEX. (5MM)

94001-05000-0S

$2.80

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

29

NUT, HEX. (6MM)

94001-06200-0S

$1.31

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

30

BAND B1, CABLE

95014-62100

$1.51
