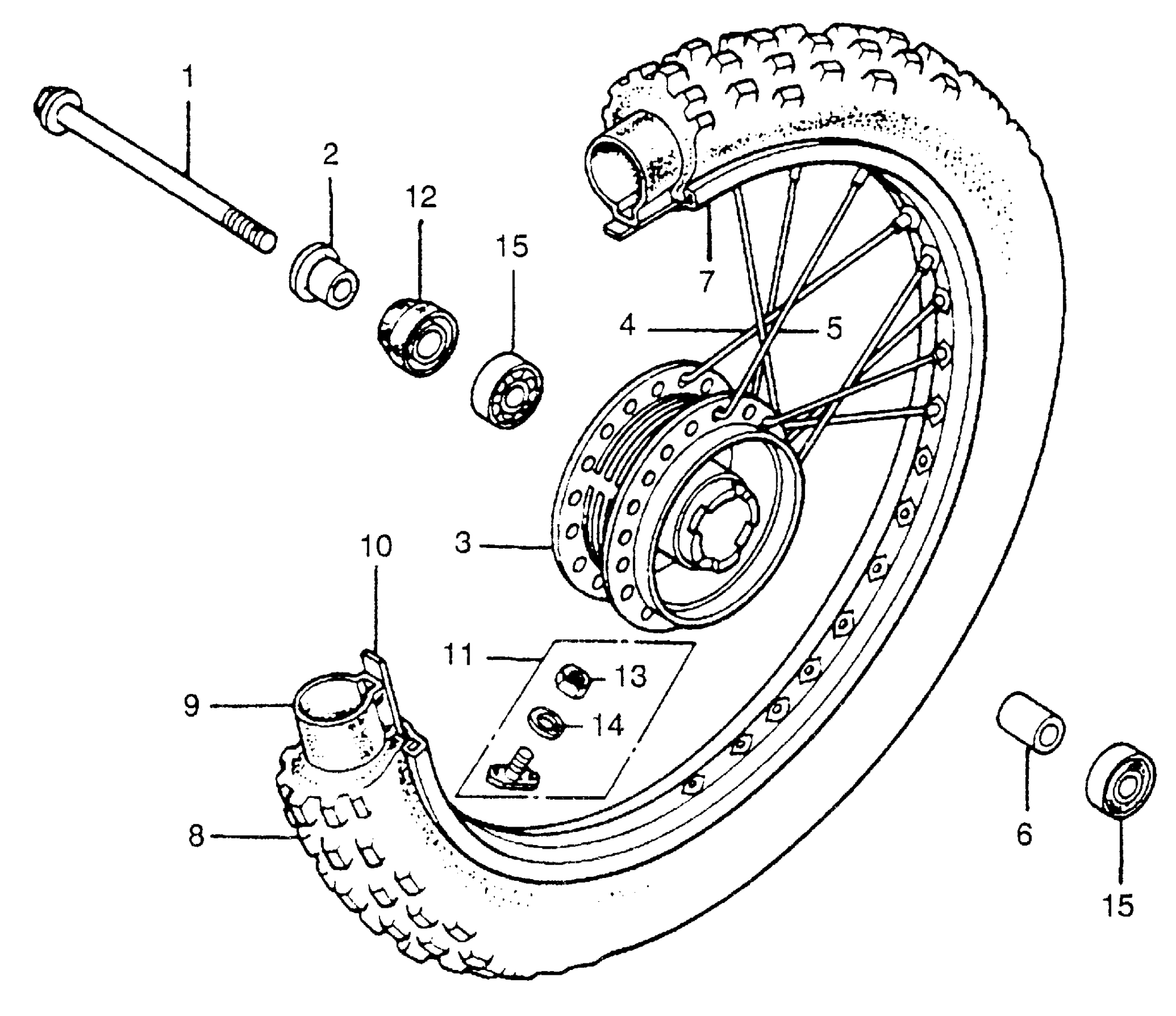

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL This part replaces 44301-110-000.

44301-KF9-900

Unavailable

2

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-360-000

Unavailable

3

HUB, FR. WHEEL (NOT AVAILABLE)

44601-400-000

Unavailable

4

SPOKE A, FR.

44606-400-010

Unavailable

5

SPOKE B, FR.

44607-400-010

$3.98

6

COLLAR, FR. AXLE DISTANCE

44620-400-000

$9.33

7

RIM, FR. WHEEL (NOT AVAILABLE)

44701-373-013

Unavailable

8

TIRE, FR. (3.00-21) (4PR) (BS) (NOT AVAILABLE)

44711-357-003

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

10

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE)

44713-340-003

Unavailable

11

STOPPER, BEAD (1.60) (NOT AVAILABLE) This part replaces 44715-357-000.

44715-444-000

Unavailable

11

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

12

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

12

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, SPRING (8MM)

94111-08000

$1.49

15

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
