- MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110
CRANKSHAFT + PISTON

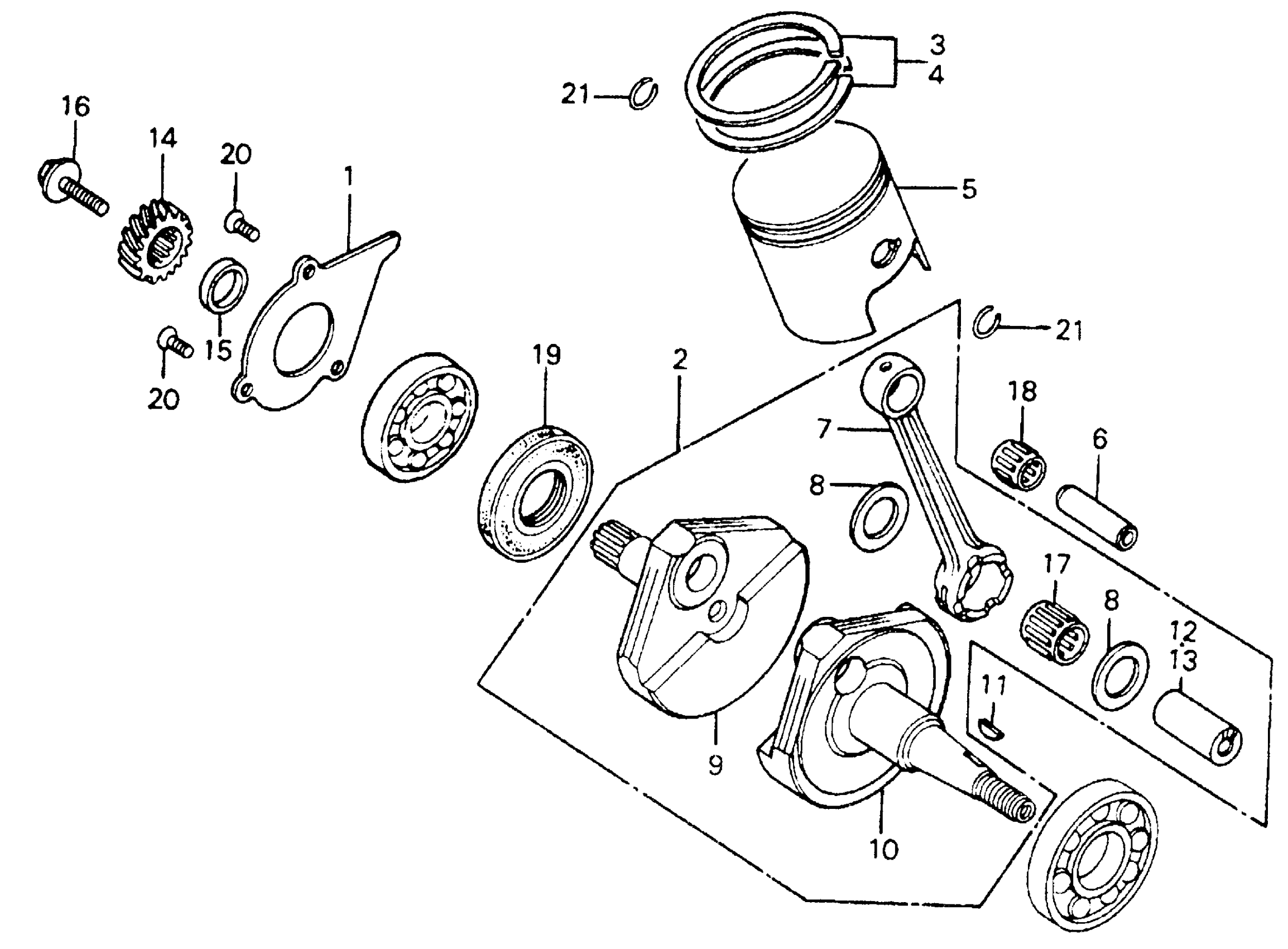

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 CRANKSHAFT + PISTON Diagram
#
1
PLATE A, BEARING SET (NOT AVAILABLE)
11104-360-000
Unavailable
2
CRANKSHAFT (NOT AVAILABLE)
13000-373-000
Unavailable
4
RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE) This part replaces 13011-373-005.
13011-373-015
Unavailable
4
RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE) This part replaces 13011-373-013.
13011-373-015
Unavailable
4
RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE)
13011-373-015
Unavailable
4
RING SET, PISTON (OS 0.25) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13012-373-005.
13012-373-015
Unavailable
4
RING SET, PISTON (OS 0.25) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13012-373-013.
13012-373-015
Unavailable
4
RING SET, PISTON (OS 0.25) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13012-373-015
Unavailable
4
RING SET, PISTON (OS 0.50) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13013-373-005.
13013-373-015
Unavailable
4
RING SET, PISTON (OS 0.50) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13013-373-013.
13013-373-015
Unavailable
4
RING SET, PISTON (OS 0.50) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13013-373-015
Unavailable
4
RING SET, PISTON (0.75) (TEIKOKU) | (Optional). This part replaces 13014-373-013.
13014-373-015
Unavailable
4
RING SET, PISTON (0.75) (TEIKOKU) | (Optional).
13014-373-015
Unavailable
4
RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13015-373-013.
13015-373-015
Unavailable
4
RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13015-373-015
Unavailable
5
PISTON (STD)
13100-373-000
Unavailable
5
PISTON (OS 0.25) | (Optional).
13102-373-000
Unavailable
5
PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).
13103-373-000
Unavailable
5
PISTON (0.75) (NOT AVAILABLE) | (Optional).
13104-373-000
Unavailable
5
PISTON (1.00) (NOT AVAILABLE) | (Optional).
13105-373-000
Unavailable
6
PIN, PISTON
13111-369-000
Unavailable
7
ROD, CONNECTING (NOT AVAILABLE)
13201-373-300
Unavailable
8
WASHER, THRUST (22MM) (NOT AVAILABLE)
13202-373-300
Unavailable
9
CRANKSHAFT, R. (NOT AVAILABLE)
13311-373-300
Unavailable
10
CRANKSHAFT, L. (NOT AVAILABLE)
13321-373-300
Unavailable
13
PIN 1, CRANK (2-GRV) (NOT AVAILABLE)
13381-373-310
Unavailable
13
PIN 2, CRANK (ONE GROOVE) (NOT AVAILABLE)
13382-373-300
Unavailable
13
PIN 3, CRANK (NON-GROOVED)
13383-373-300
Unavailable
14
GEAR, PRIMARY DRIVE (NOT AVAILABLE)
13615-361-000
Unavailable
15
COLLAR, PRIMARY DRIVE GEAR
13616-360-000
Unavailable
17
BEARING, NEEDLE
91004-KS3-901
Unavailable
17
BEARING, NEEDLE This part replaces 91004-373-006.
91004-KS3-901
Unavailable
17
BEARING, NEEDLE This part replaces 91004-373-300.
91004-KS3-901
Unavailable
17
BEARING, CONNECTING ROD LARGE END (NOT AVAILABLE)
91006-373-006
Unavailable
17
BEARING, CONNECTING ROD LARGE END (NOT AVAILABLE) This part replaces 91006-373-300.
91006-373-006
Unavailable
18
BEARING, CONNECTING ROD SMALL END (+0/-0.002) (KOYO) (NOT AVAILABLE)
91007-373-004
Unavailable
18
BEARING, CONNECTING ROD SMALL END (+0/-0.002) (KOYO) (NOT AVAILABLE) This part replaces 91007-373-006.
91007-373-004
Unavailable
18
BEARING, CONN ROD SMALL END (-0.002/-0.004) (KOYO) (NOT AVAILABLE)
91008-373-004
Unavailable
18
BEARING, CONN ROD SMALL END (-0.002/-0.004) (KOYO) (NOT AVAILABLE) This part replaces 91008-373-006.
91008-373-004
Unavailable
18
BEARING, CONNECTING ROD SMALL END (-0.004 -0.006) (KOYO) (NOT AVAILABLE)
91009-373-004
Unavailable
18
BEARING, CONNECTING ROD SMALL END (-0.004 -0.006) (KOYO) (NOT AVAILABLE) This part replaces 91009-373-006.
91009-373-004
Unavailable
19
OIL SEAL (28X56X9)
91203-360-003
Unavailable
