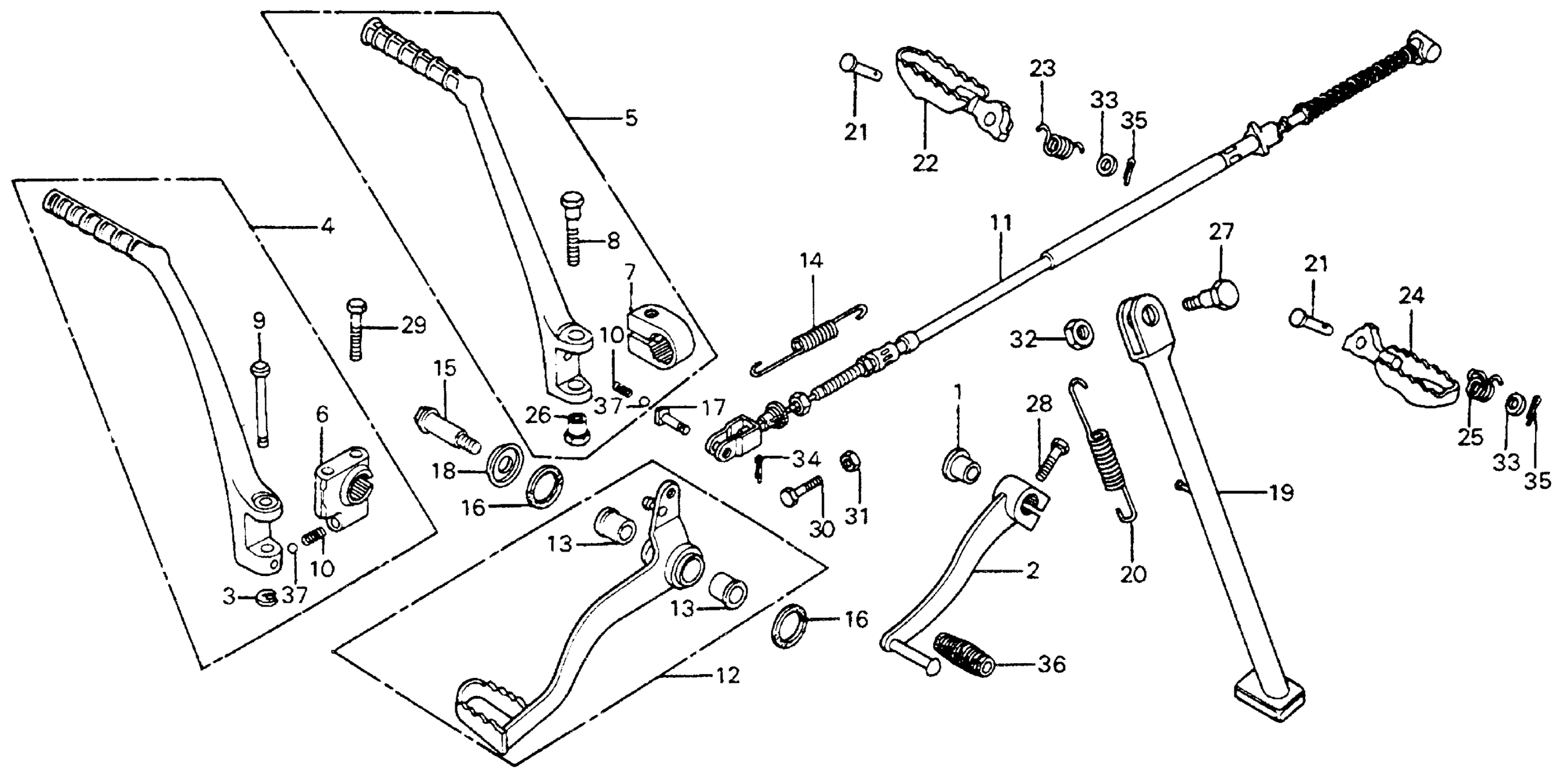

Honda MR175A (77) ELSINORE, JPN, VIN# MR175-2100001 TO MR175-2102110 CHANGE + BRAKE PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PROTECTOR, SHIFT SPINDLE (NOT AVAILABLE)

24617-360-000

Unavailable

2

PEDAL, GEARSHIFT

24701-373-780

Unavailable

5

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-400-000

Unavailable

7

JOINT, KICK ARM (NOT AVAILABLE)

28302-400-000

$50.28

8

BOLT, KICK STARTER

28303-360-010

Unavailable

10

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

11

CABLE, RR. BRAKE (NOT AVAILABLE) This part replaces 43450-373-000.

43450-400-000

Unavailable

11

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-400-000

Unavailable

12

PEDAL, BRAKE (NOT AVAILABLE)

46510-373-000

Unavailable

13

BUSHING, PEDAL

46512-360-300

$6.87

14

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-357-000

Unavailable

15

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46515-361-000

Unavailable

16

DUST SEAL, BRAKE PEDAL

46516-357-000

Unavailable

17

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

17

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

18

WASHER, BRAKE PIVOT (NOT AVAILABLE)

46518-361-000

Unavailable

19

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-373-000ZA

Unavailable

20

SPRING, SIDE STAND

50542-310-010

Unavailable

21

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

21

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

22

ARM, R. STEP

50616-130-670

Unavailable

23

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

23

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

24

STEP, L. (NOT AVAILABLE)

50642-130-670

Unavailable

25

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

25

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

26

NUT, KICK ARM (NOT AVAILABLE)

90012-360-000

Unavailable

27

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

28

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

28

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20) This part replaces 92018-06020.

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (10MM)

94030-10000

$1.49

32

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

PIN, COTTER (1.6X12)

94201-16120

$1.49

35

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

35

PIN, COTTER (1.6X25)

94201-16250

$1.49

36

RUBBER, SHIFT PEDAL

95011-40000

$1.49

37

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
