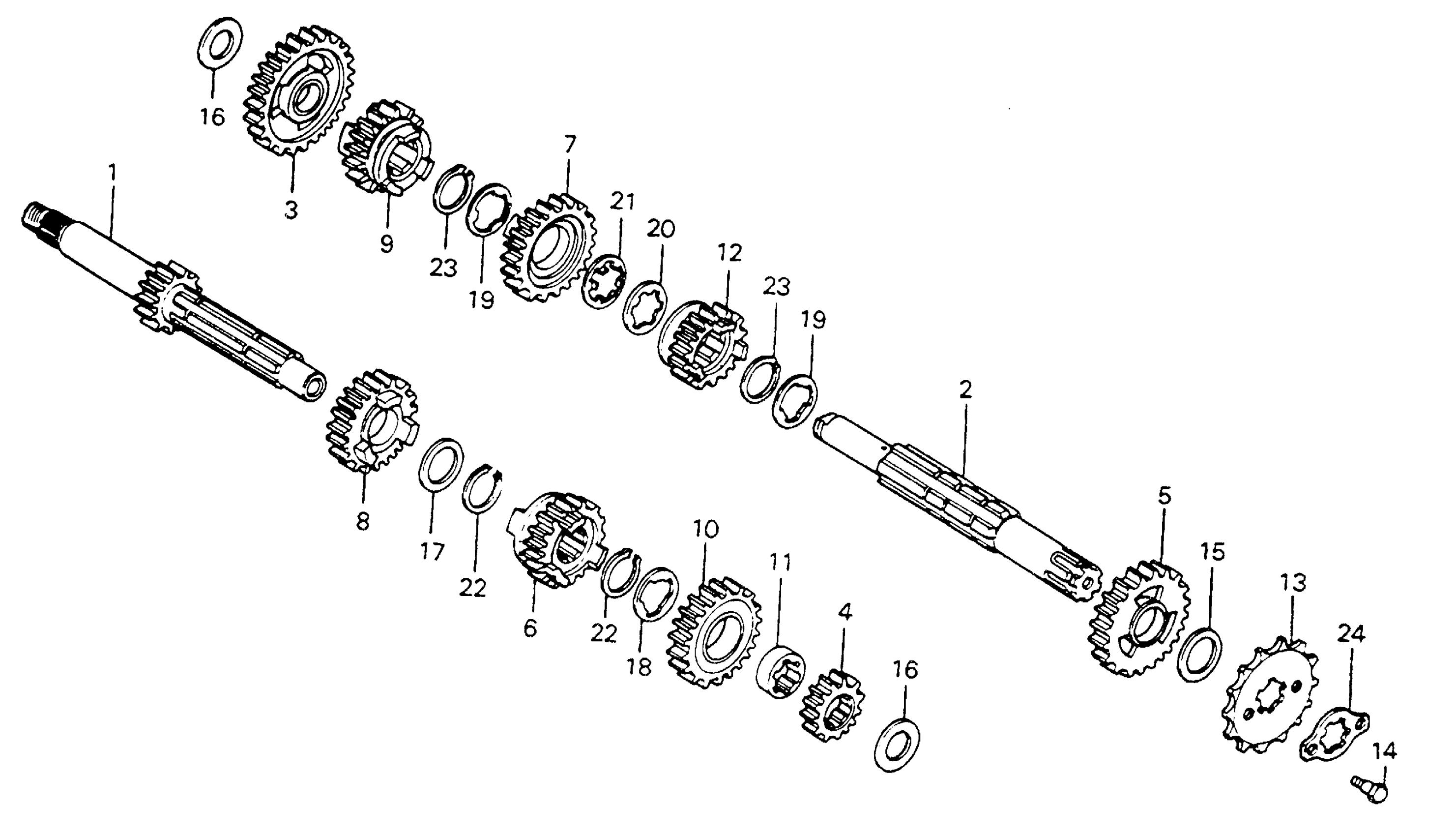

Honda MR175A (76) ELSINORE, JPN, VIN# MR175-2000001 TO MR175-2010199 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T) (NOT AVAILABLE)

23210-373-000

Unavailable

2

COUNTERSHAFT

23220-373-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23415-373-000

Unavailable

4

GEAR, MAINSHAFT SECOND (16T)

23426-373-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (30T)

23431-373-000

Unavailable

6

GEAR, MAINSHAFT THIRD (20T)

23446-373-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (26T)

23456-373-000

Unavailable

8

GEAR, MAINSHAFT FORTH (24T)

23461-373-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (23T)

23471-373-000

Unavailable

10

GEAR, MAINSHAFT TOP (27T)

23481-373-000

Unavailable

11

COLLAR, MAINSHAFT TOP GEAR SPLINE

23482-361-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (20T) (NOT AVAILABLE)

23491-373-000

Unavailable

13

SPROCKET, DRIVE (15T) This part replaces 23804-360-000.

23801-230-000

Unavailable

14

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

15

WASHER, THRUST (20MM)

90453-360-000

$3.30

16

WASHER, THRUST (15MM)

90451-166-000

Unavailable

16

WASHER, THRUST (15MM) This part replaces 90454-360-000.

90451-166-000

Unavailable

17

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90457-360-000

Unavailable

19

WASHER (22MM) (NOT AVAILABLE)

90462-360-000

Unavailable

20

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

21

WASHER, LOCK

90465-360-000

$6.74

22

SET-RING (20MM)

90601-360-000

$9.19

23

SET-RING, COUNTER SECOND

90602-360-000

$9.66

24

PLATE B, FIXING

95014-92100

$1.49
