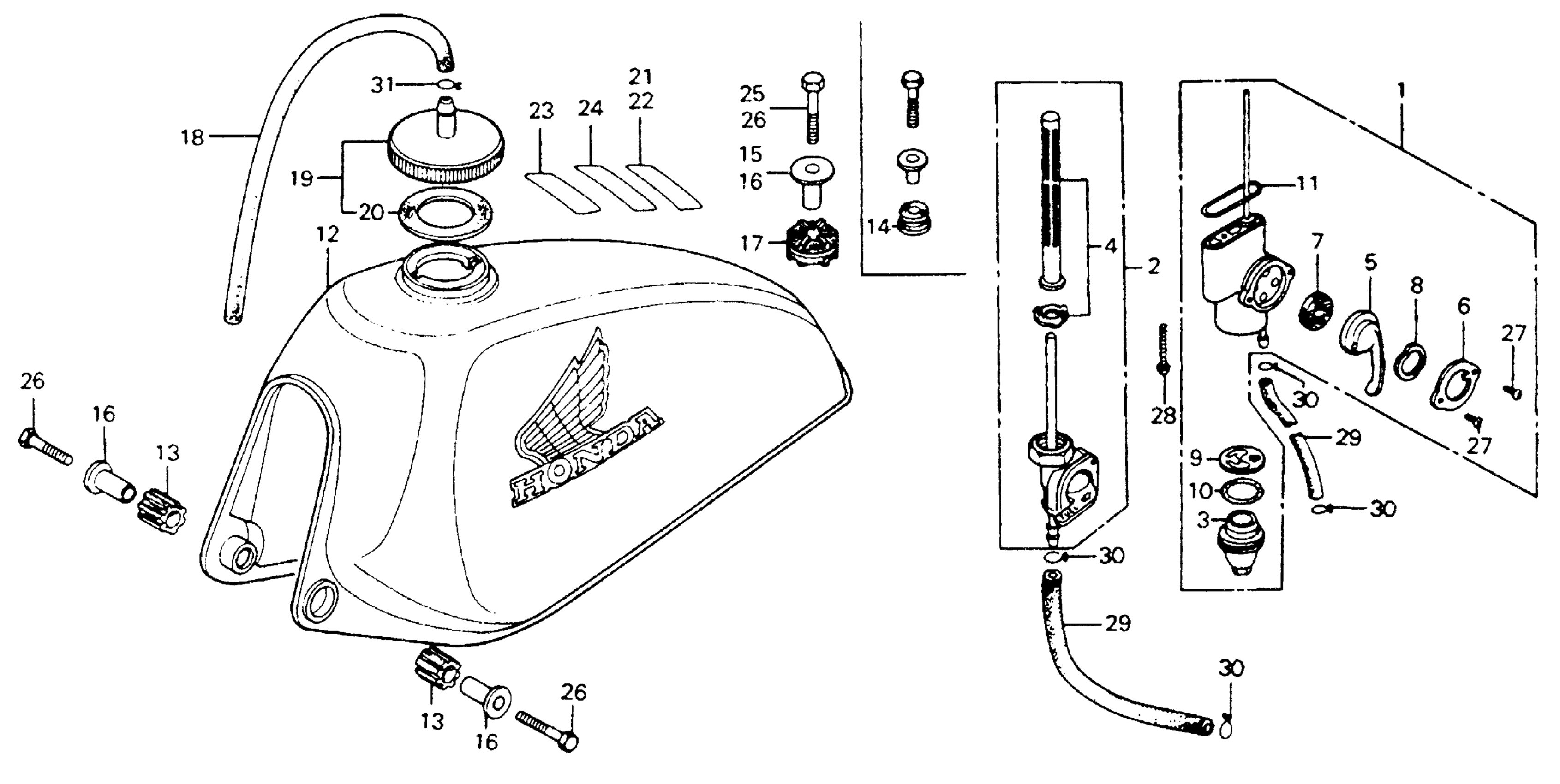

Honda MR175A (76) ELSINORE, JPN, VIN# MR175-2000001 TO MR175-2010199 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-361-770

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

5

LEVER, PETCOCK (NOT AVAILABLE)

16953-389-670

Unavailable

6

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-389-670

Unavailable

7

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

7

GASKET, VALVE

16957-ZE1-812

$3.08

8

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

9

SCREEN, FUEL STRAINER

16957-028-000

$16.22

10

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

10

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

10

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

10

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

11

O-RING (23.8X2.4)

16997-273-000

$4.53

12

TANK ASSY., FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 17500-373-770ZA.

17500-373-771ZA

Unavailable

12

TANK ASSY., FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17500-373-771ZA

Unavailable

13

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE) This part replaces 17507-361-000.

17507-358-000

Unavailable

14

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE) This part replaces 17507-373-000.

17507-360-000

Unavailable

15

COLLAR, FUEL TANK MOUNT

17508-357-000

Unavailable

16

COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)

17508-361-000

Unavailable

18

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

19

CAP, FUEL FILLER This part replaces 17620-373-010.

17620-428-020

Unavailable

19

CAP, FUEL FILLER This part replaces 17620-373-020.

17620-428-020

Unavailable

19

CAP, FUEL FILLER This part replaces 17620-428-010.

17620-428-020

Unavailable

19

CAP, FUEL FILLER

17620-428-020

Unavailable

20

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

20

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

22

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

24

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

25

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

25

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

26

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

26

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

26

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

27

SCREW, PAN (3X6)

93500-03006-0A

$1.49

28

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

28

SCREW, PAN (6X40)

93500-06040-0A

$1.49

29

BULK HOSE, FUEL (5.5X3000) (5.5X180)

95001-55003-60M

$47.32

30

CLIP, TUBE (B10)

95002-02100

$1.90
