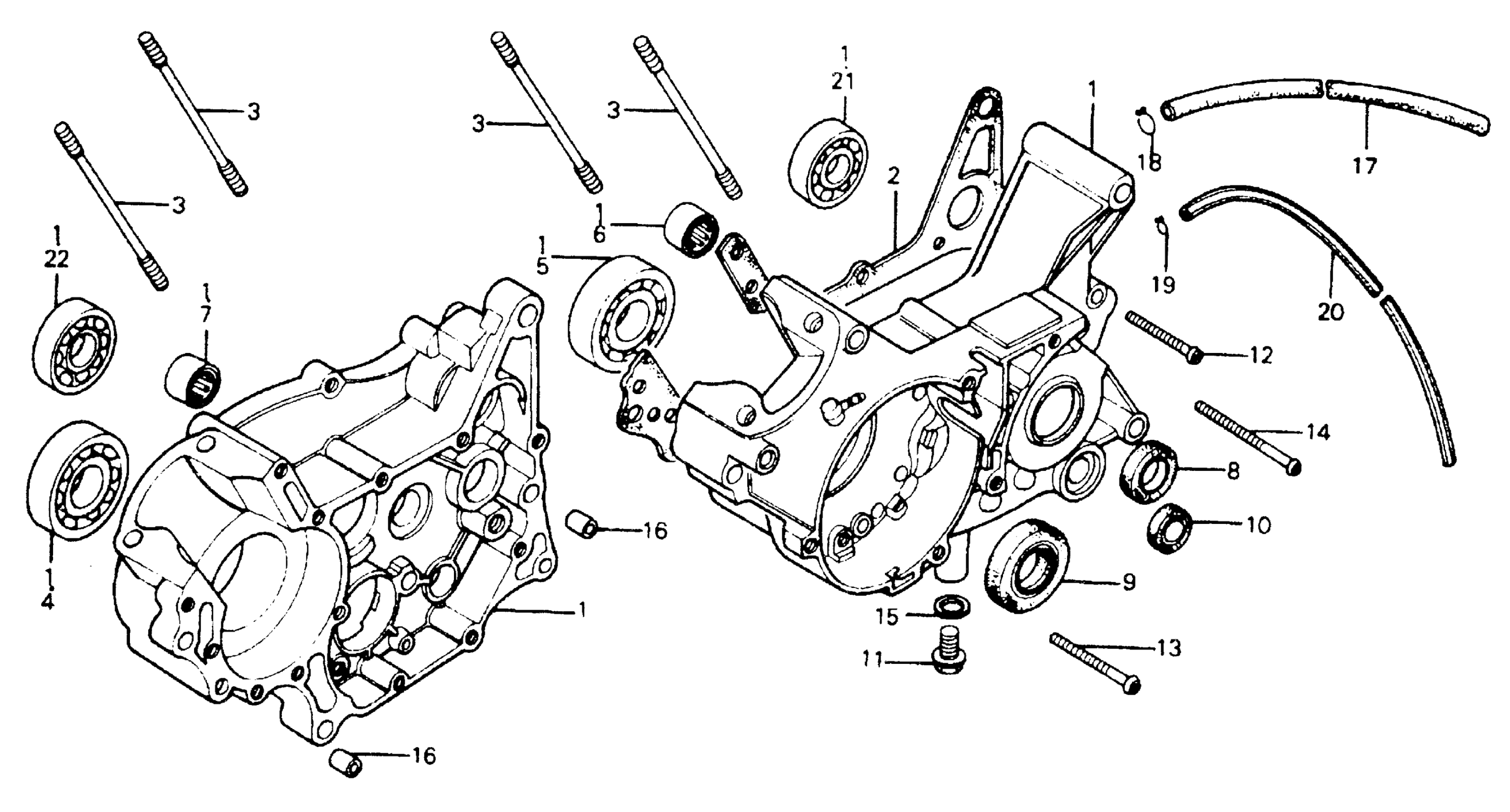

Honda MR175A (76) ELSINORE, JPN, VIN# MR175-2000001 TO MR175-2010199 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-373-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-373-000.

11191-373-306

$12.54

3

STUD, CYLINDER (8X116) (NOT AVAILABLE)

90031-373-000

Unavailable

4

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

4

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

4

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

5

BEARING, BALL (6305) (NACHI) This part replaces 91002-360-004.

91002-360-005

Unavailable

5

BEARING, BALL (6305) (NACHI)

91002-360-005

Unavailable

6

BEARING, NEEDLE (15X22) This part replaces 91014-360-006.

91106-KC6-003

Unavailable

6

BEARING, NEEDLE (15X22)

91106-KC6-003

Unavailable

7

BEARING, NEEDLE (15X23X12) (TOMUSON)

91016-360-006

Unavailable

8

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

8

OIL SEAL (20X32X6) (NOK) This part replaces 91201-360-013.

91201-360-005

$4.87

9

OIL SEAL (25X45X7)

91204-360-003

Unavailable

10

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

12

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

12

SCREW, PAN (6X45)

93500-06045-0A

$1.49

13

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

13

SCREW, PAN (6X65)

93500-06065-0A

$1.53

14

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

14

SCREW, PAN (6X80)

93500-06080-0A

$1.49

15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

16

PIN A, DOWEL (10X16)

94301-10160

$2.28

18

CLIP, TUBE (B10)

95002-02100

$1.90

19

CLIP, TUBE (C6.5)

95002-35000

$1.49

20

TUBE, VINYL (4.5X6.5X750) (SOURCE: VINTAGE PARTS INC.)

95003-08075-10

Unavailable

21

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

22

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

22

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040-00.

96120-63040-10

$22.40

22

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40
