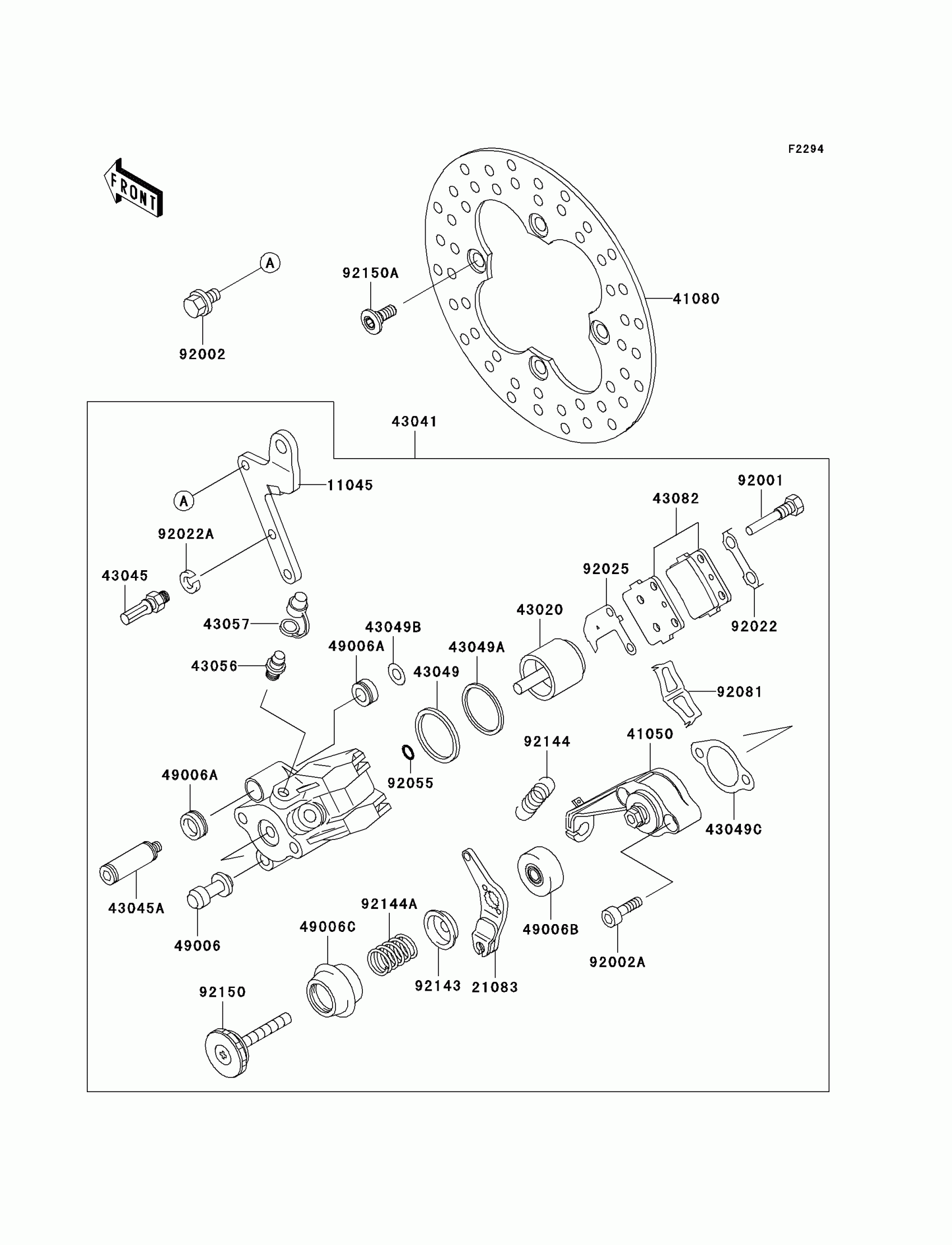

Kawasaki Mojave 250 Rear Brake(KSF250-A15-A17) Diagram
#
Description
Price
11045
BRACKET
11045-1105
$72.00
21083
ARM
21083-1070
$66.59
41050
CAM-BRAKE,RR CALIPER
41050-1072
$135.37
41080
DISC,RR
41080-1200
$299.35
43020
PISTON-COMP-BRAKE
43020-1102
$53.70
43041
CALIPER-ASSY,RR
43041-1575
$498.02
43045
SHAFT-CALIPER
43045-1010
$20.77
43045A
SHAFT-CALIPER
43045-1051
$19.83
43049
PACKING,PISTON SEAL
43049-1023
$14.30
43049A
PACKING,PISTON SEAL
43049-1024
$8.51
43049B
PACKING
43049-1025
$5.46
43049C
PACKING
43049-1073
$3.97
43056
BREATHER
43056-1055
Unavailable
43057
CAP-BREATHER
43057-1001
$4.91
43082
PAD-ASSY-BRAKE
43082-1066
$45.50
49006
BOOT,CALIPER
49006-1088
$11.61
49006A
BOOT,CALIPER
49006-1089
$7.38
49006B
BOOT,CALIPER
49006-1193
$8.40
49006C
BOOT,CALIPER
49006-1232
$12.37
92001
BOLT,PAD HOLDER
92001-1723
$7.79
92002
BOLT,FLANGED,8X13
92002-1737
$5.59
92002A
BOLT
92002-1772
$9.64
92022
WASHER,LOCK
92022-1372
$5.24
92022A
WASHER,WAVE
92022-1373
$3.92
92025
SHIM,PAD
92025-1344
$15.14
92055
RING-O
92055-1351
$6.52
92081
SPRING,PAD
92081-1502
$8.51
92143
COLLAR
92143-1202
$17.00
92144
SPRING
92144-1037
$12.37
92144A
SPRING,ADJUST
92144-1258
$14.83
92150
BOLT,ADJUST
92150-1080
$48.10
92150A
BOLT,SOCKET,8X20
92150-1800
$7.29
