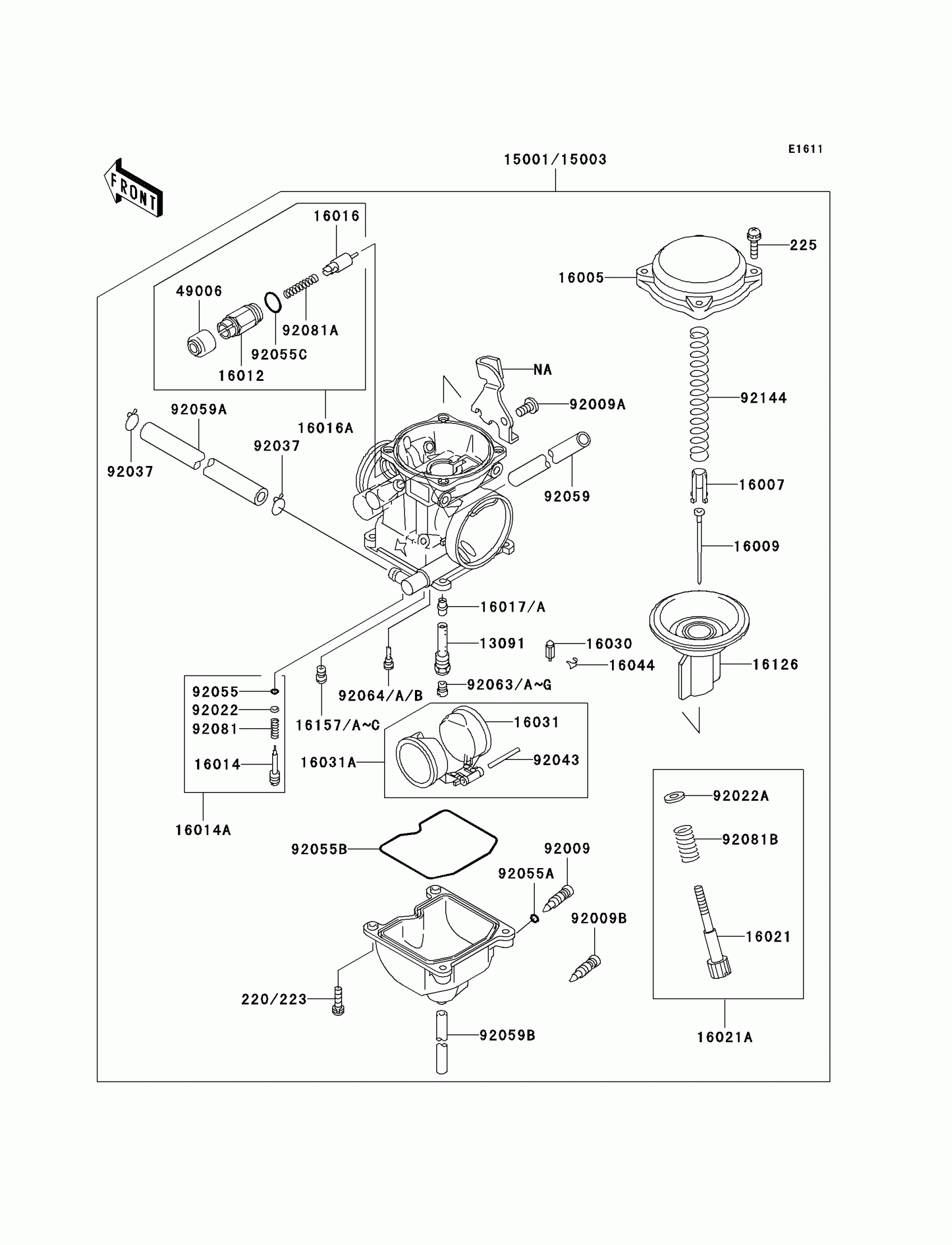

Kawasaki Mojave 250 Carburetor(KSF250-A15/A16) Diagram
#
13091
HOLDER,NEEDLE JET
13091-1259
$33.38
16005
TOP-CHAMBER,MIXING,27/60
16005-1057
$45.23
16007
SEAT-SPRING,VALVE
16007-1134
$42.04
16009
NEEDLE-JET,N54C
16009-1333
$35.82
16030
VALVE-FLOAT
16030-1007
$47.99
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE,VACUUM
16126-1180
$209.96
16157
JET-STARTER,#55
16157-1056
$17.75
16157A
JET-STARTER,#58
16157-1057
$17.75
16157C
JET-STARTER,#60
16157-1058
$16.05
92009A
SCREW,5X10
92009-1365
$7.34
92009B
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92037
CLAMP,TUBE
92037-1531
$5.52
92055B
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92059
TUBE,6.5X9.5X500
92059-1465
$33.38
92059A
TUBE,6.5X11.5X360
92059-1751
$64.39
92059B
TUBE,3.5X6.5X300
92059-1752
$23.25
92063A
JET-MAIN,#135
92063-1014
$14.10
92063B
JET-MAIN,#138
92063-1015
$14.10
92064
JET-PILOT,#38
92064-1050
$19.04
225
SCREW-PAN-WSP-CROS,4X18
225C0418
$4.01
92064A
JET-PILOT,#35
92064-1101
$17.03
92064B
JET-PILOT,#32
92064-1117
$19.96
92144
SPRING,VACUUM VALVE
92144-1066
$13.23
15001
CARBURETOR-ASSY
15001-1413
$616.59
15003
CARBURETOR-ASSY
15003-1372
Unavailable
16012
CAP-STARTER PLUNGER
16012-1055
$27.48
16014
SCREW-PILOT AIR
16014-1029
$19.09
16014A
SCREW-PILOT AIR
16014-1080
$22.09
16016
PLUNGER,STARTER
16016-1065
$58.52
16016A
PLUNGER,STARTER
16016-1101
$58.52
16017
JET-NEEDLE
16017-1319
$51.49
16017A
JET-NEEDLE,#6
16017-1393
$50.62
16021
SCREW-THROTTLE STOP
16021-1109
$43.67
16021A
SCREW-THROTTLE STOP
16021-1201
$46.93
16031
FLOAT
16031-1056
$53.59
16031A
FLOAT
16031-1077
$53.59
16157B
JET-STARTER,#60
16157-1058
$16.05
49006
BOOT,STARTER PLUNGER
49006-1165
$10.00
92009
SCREW,DRAIN,M6X1.0
92009-1095
$14.92
92022
WASHER,PLAIN
92022-1003
$4.31
92022A
WASHER,THROTTLE STOP SCREW
92022-1587
$5.00
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O
92055-1053
$4.69
92055C
RING-O,STARTER PLUNGER
92055-1416
$5.78
92063
JET-MAIN,#140
92063-1013
$14.10
92063C
JET-MAIN,#142
92063-1016
$14.10
92063D
JET-MAIN,#145
92063-1017
$14.10
92063E
JET-MAIN,#128
92063-1074
$14.10
92063F
JET-MAIN,#130
92063-1075
$14.10
92063G
JET-MAIN,#132
92063-1076
$14.10
220
SCREW-PAN-CROS,4X14
220D0414
$4.60
223
SCREW-PAN-WS-CROS,4X16
223C0416
$4.12
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING,PLUNGER
92081-1720
$10.19
92081B
SPRING,THROTTLE STOP SCREW
92081-1721
$12.96
