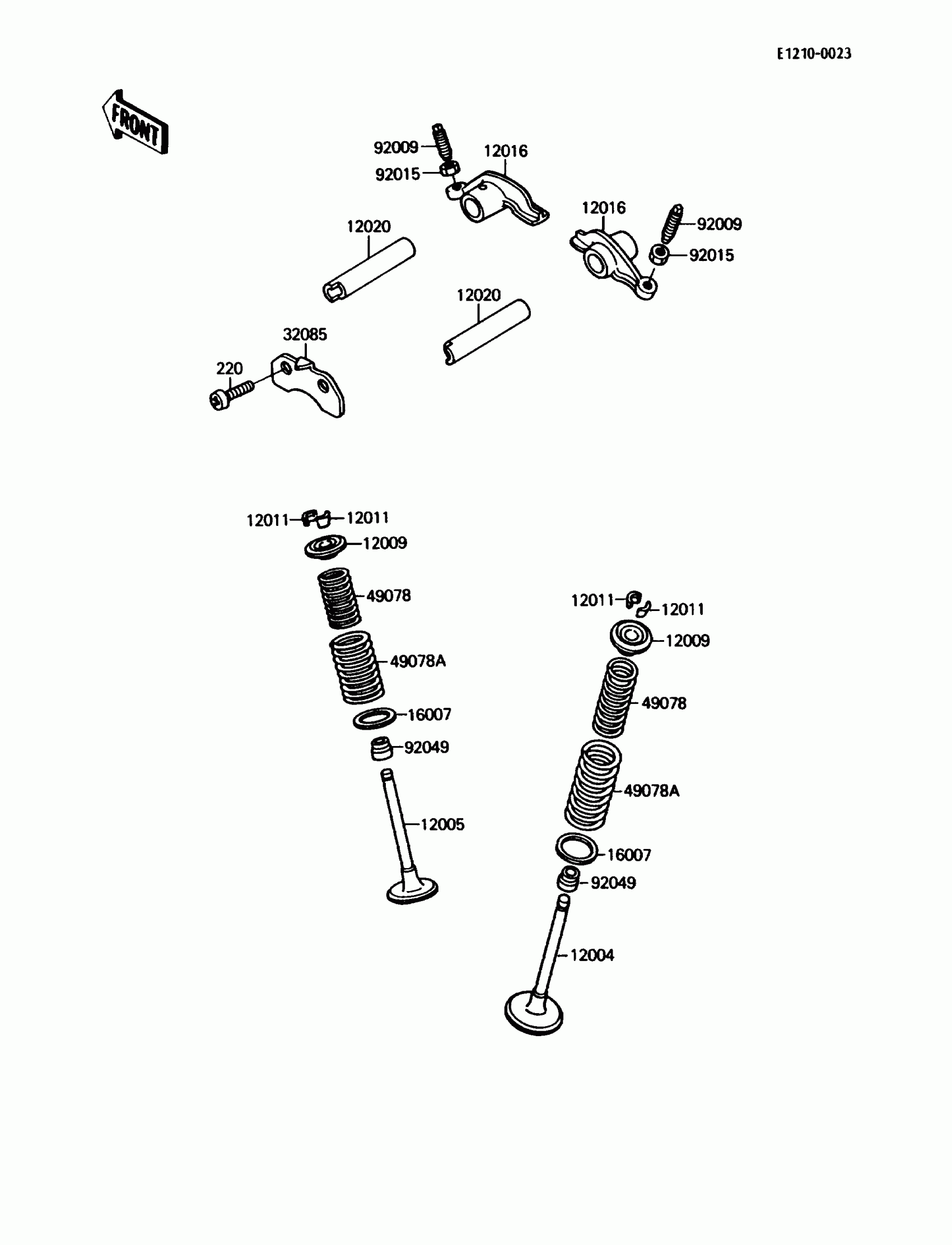

Kawasaki Mojave 110E Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-1060

Unavailable

12005

VALVE-EXHAUST

12005-1056

$70.82

12009

RETAINER-VALVE SPRING

12009-1052

$11.07

12011

COLLET,SPLIT KEEPER

12011-1002

$5.18

12016

ARM-ROCKER

12016-1003

Unavailable

12020

SHAFT-ROCKER

12020-1009

Unavailable

16007

SEAT-SPRING

16007-1109

$4.76

32085

STOPPER,ROCKER SHAFT

32085-1129

Unavailable

49078

SPRING-ENGINE VALVE,INNER

49078-1053

$9.10

49078A

SPRING-ENGINE VALVE,OUTER

49078-1054

$9.49

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92015

NUT,VALVE ADJUST LOCK

92015-1137

$1.00

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13

220

SCREW-PAN-CROS,6X14

220B0614

$1.48
