1988 Kawasaki Mojave 110E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1988 Kawasaki Mojave 110E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

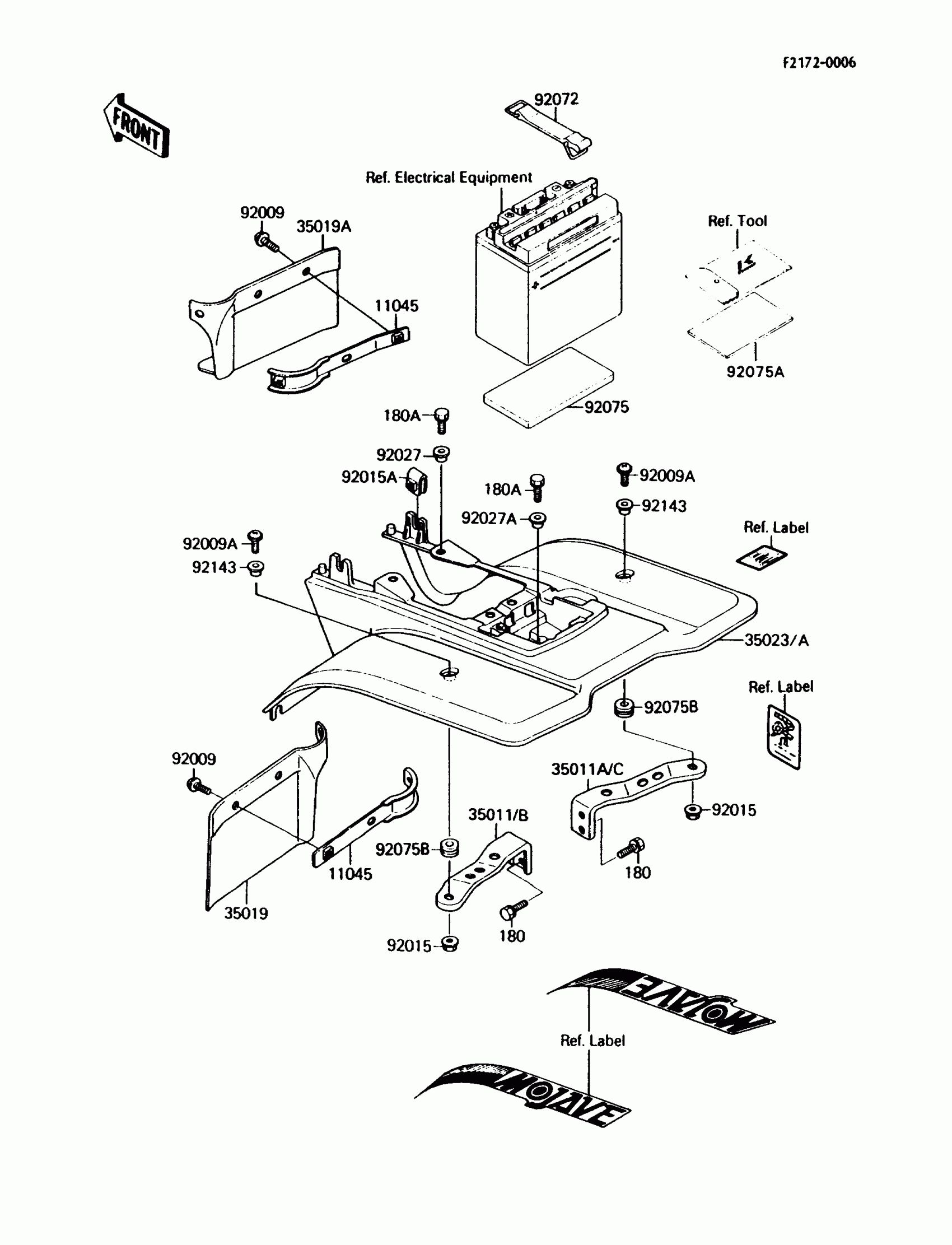

1988 Kawasaki Mojave 110E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,REAR FLAP

11045-1384

1
Out of stock

35011B

STAY,REAR FENDER,LH

35011-1397

1
Out of stock

35011C

STAY,REAR FENDER,RH

35011-1398

1
Out of stock

35019

FLAP,REAR FENDER,LH

35019-1188

1
Out of stock

35019A

FLAP,REAR FENDER,RH

35019-1189

1
Out of stock

35023

FENDER-REAR,P.WHITE

35023-1176-6F

1
Out of stock

35023A

FENDER-REAR,F.RED

35023-1176-6L

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1237

1
Out of stock

92015A

NUT,CLAMP,6MM

92015-1678

1
Out of stock

92027

COLLAR

92027-1166

1
Out of stock

92027A

COLLAR

92027-1757

1
Out of stock

92072

BAND,BATTERY

92072-1210

1
Out of stock

92075

DAMPER,BATTERY

92075-1871

1
Out of stock

92075A

DAMPER,TOOL BOX

92075-1916

1
Out of stock

92075B

DAMPER,CASE

92075-222

1
Out of stock

92143

COLLAR,L=9.6

92143-1016

1
Out of stock

180

BOLT-UPSET-WS

180D0614

1
Out of stock

180A

BOLT-UPSET-WS

180D0620

1
Out of stock
