Description

Price

32002A

FRAME-COMP

32002-1974

$502.32

39111

ROD-TIE

39111-1070

$38.99

39112

RODEND-TIE

39112-1058

$94.55

39112A

RODEND-TIE

39112-1059

$94.55

39114A

SHAFT-COMP-STRG

39114-1061

$65.08

59266

JOINT-BALL

59266-1067

$152.15

92015

NUT,LOCK,10MM

92015-1460

$5.66

92015A

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,FLANGED,10MM

92015-1502

$7.83

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92037

CLAMP,STEERING SHAFT

92037-1839

$70.85

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$5.58

120

BOLT,8X50

120P0850

Unavailable

183

BOLT-UPSET-WS-SMALL

183G0822

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

320

NUT-CASTLE

320H1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61

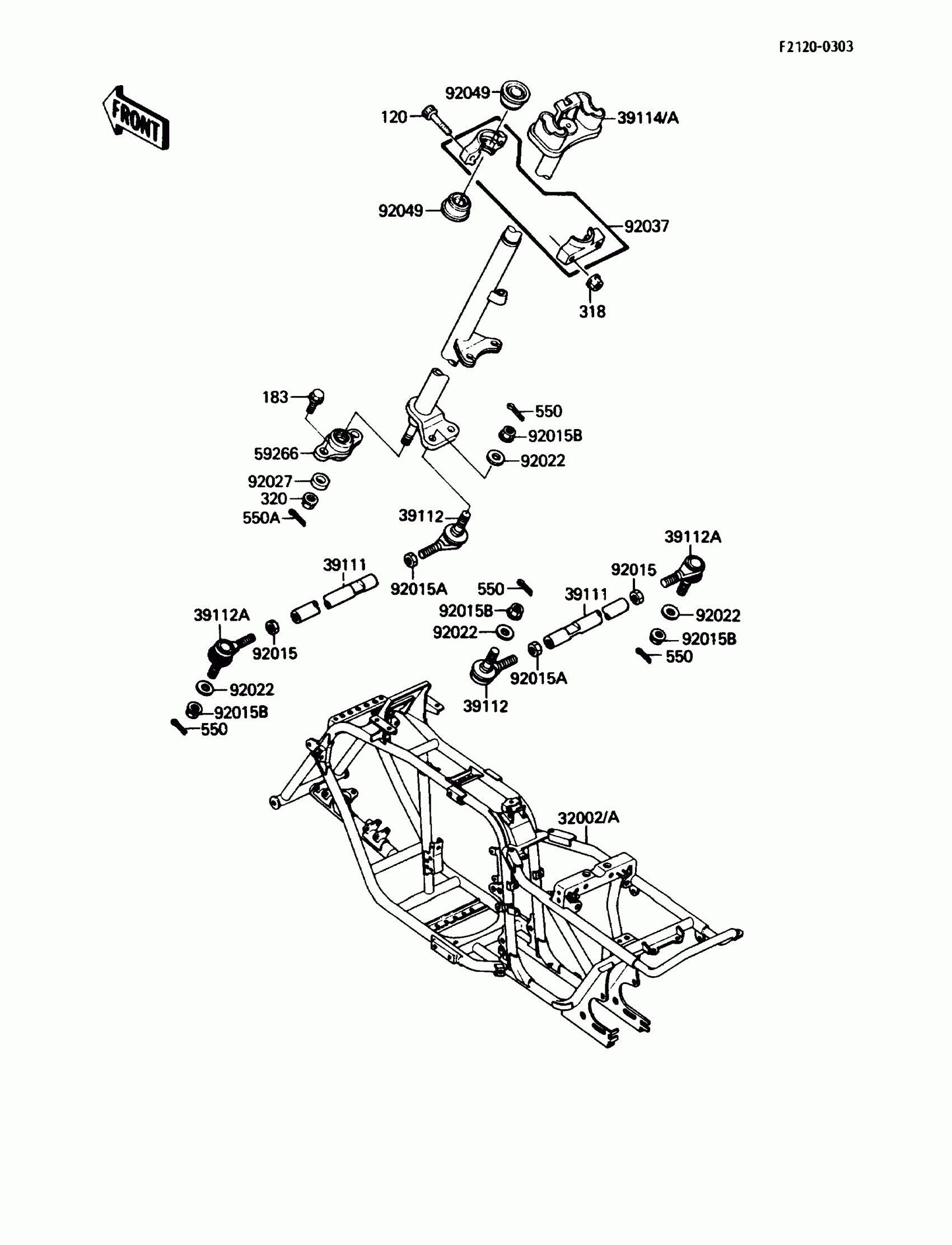

Kawasaki Mojave 110E Frame Diagram

FRAME-COMP

ROD-TIE

RODEND-TIE

RODEND-TIE

SHAFT-COMP-STRG

JOINT-BALL

NUT,LOCK,10MM

NUT,LOCK,10MM

NUT,FLANGED,10MM

WASHER,10.5X20X1

COLLAR,10X21.3X7

CLAMP,STEERING SHAFT

SEAL-OIL,SR7 25 34 7.8 NS

BOLT,8X50

BOLT-UPSET-WS-SMALL

NUT-HEX-SMALL,8MM

NUT-CASTLE

PIN COTTER 2.0X15

PIN-COTTER,2.5X18
