1988 Kawasaki Mojave 110E Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 1988 Kawasaki Mojave 110E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

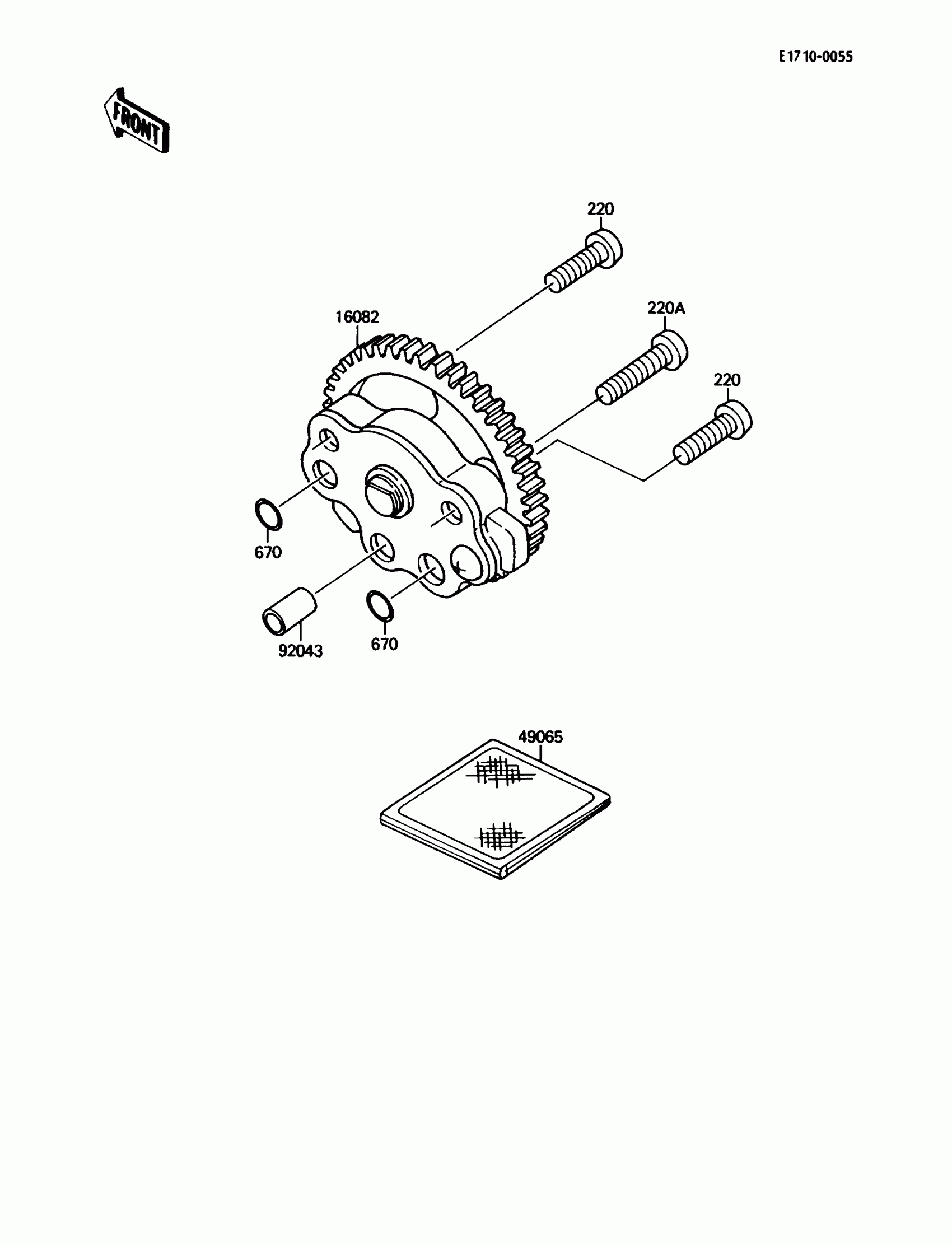

1988 Kawasaki Mojave 110E Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

PUMP-ASSY-OIL

16082-1030

1
Out of stock

49065

FILTER-OIL

49065-1001

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

220A

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

670

O RING,9.8X1.9

670B1510

1
Out of stock
