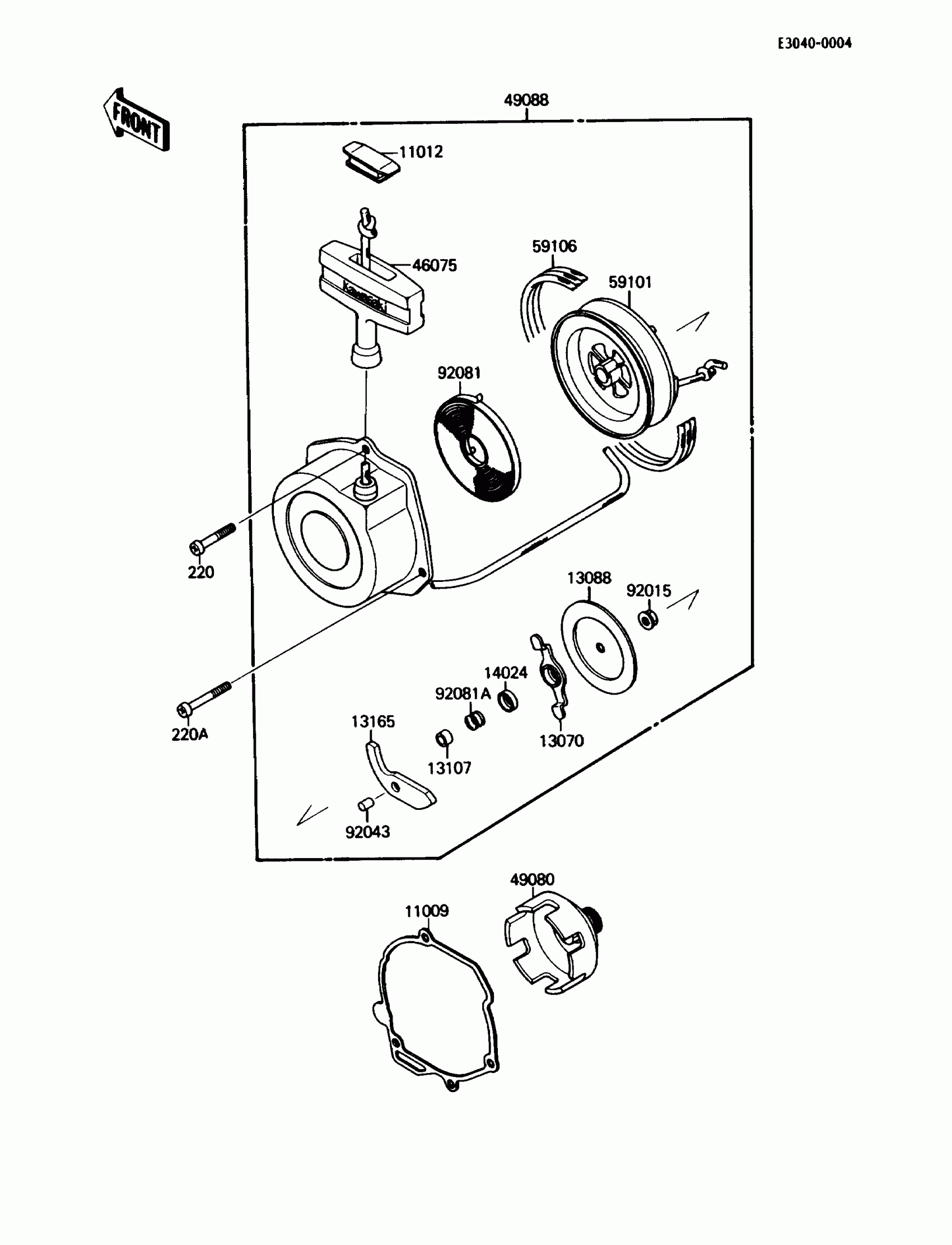

Kawasaki Mojave 110E Recoil Starter Diagram

Description

Price

11009

GASKET,RECOIL STARTER

11009-1598

Unavailable

11012

CAP,RECOIL GRIP

11012-1420

$5.61

13070

GUIDE,RECOIL

13070-1123

$5.10

13088

PLATE-FRICTION,RECOIL

13088-1067

Unavailable

13107

SHAFT,RECOIL

13107-1129

$5.75

13165

PAWL,RECOIL

13165-1110

$18.41

14024

COVER,RECOIL

14025-1966

$4.07

46075

GRIP,RECOIL

46075-1073

$14.37

49080

PULLEY-STARTING

49080-1053

Unavailable

49088

STARTER-RECOIL

49088-1053

$202.93

59101

REEL

59101-1108

$83.51

59106

ROPE,RECOIL

59106-1102

$36.51

92015

NUT,6MM

92015-1464

$4.34

92043

PIN,RECOIL

92043-1259

$4.68

92081

SPRING,RECOIL

92081-1772

$72.92

92081A

SPRING

92081-1773

$4.66

220

SCREW-PAN-CROS

220X0650

Unavailable

220A

SCREW-PAN-CROS

220X0660

Unavailable
