Description

Price

11012

CAP,WHEEL

11012-1519

Unavailable

13168

LEVER,BRAKE CAM,LH

13168-1325

Unavailable

13168A

LEVER,BRAKE CAM,RH

13168-1326

Unavailable

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1215

Unavailable

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1216

$446.63

41038

DRUM,FRONT BRAKE

41038-1171

$174.98

41048

SHOE-BRAKE

41048-1052

$22.53

41050

CAM-BRAKE,FR,LH

41050-1069

$24.42

41050A

CAM-BRAKE,FR,RH

41050-1070

$36.11

41085

INDICATOR

41085-1058

$7.41

92002

BOLT,10MM

92002-1868

$5.33

92015

NUT,CASTLE,16MM

42045-014

$9.91

92015A

NUT,FLANGED,6MM,BLACK

92015-1237

$5.52

92027

COLLAR,16.0X22X9.5

92027-1815

$11.91

92045

BEARING-BALL,6203DDU2 AV2S

92045-1192

Unavailable

92049

SEAL-OIL

92049-1197

$21.42

92055

RING-O,BRAKE CAM

92055-004

$4.80

92081

SPRING,BRAKE SHOE

41049-002

$8.03

92143

COLLAR,17.6X22.2X25

92143-1037

$6.72

131

BOLT-FLANGED

131H0635

$3.23

550

PIN COTTER 4.0X30

550D4030

$2.33

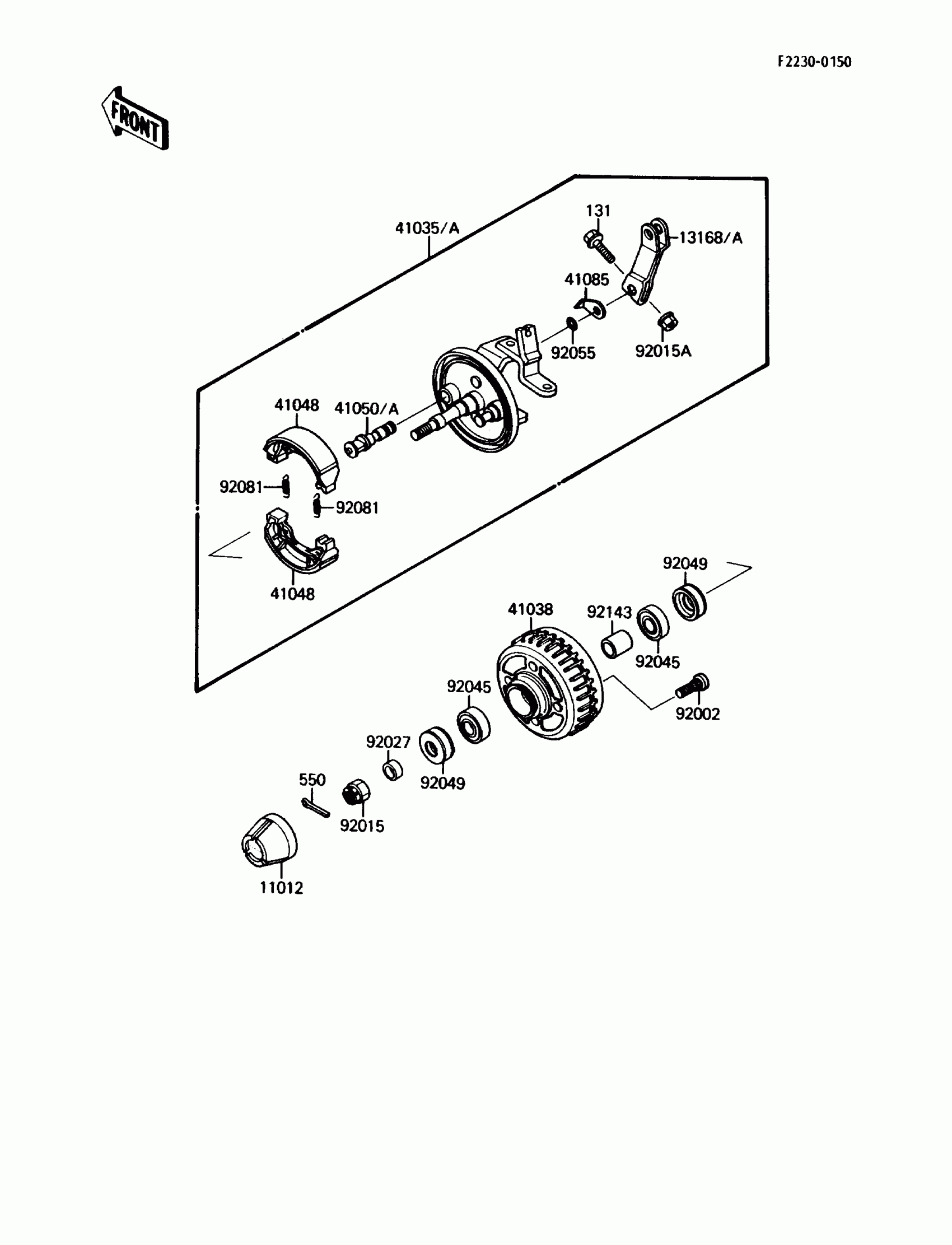

Kawasaki Mojave 110E Front Hub Diagram

CAP,WHEEL

LEVER,BRAKE CAM,LH

LEVER,BRAKE CAM,RH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-BRAKE

CAM-BRAKE,FR,LH

CAM-BRAKE,FR,RH

INDICATOR

BOLT,10MM

NUT,CASTLE,16MM

NUT,FLANGED,6MM,BLACK

COLLAR,16.0X22X9.5

BEARING-BALL,6203DDU2 AV2S

SEAL-OIL

RING-O,BRAKE CAM

SPRING,BRAKE SHOE

COLLAR,17.6X22.2X25

BOLT-FLANGED

PIN COTTER 4.0X30
