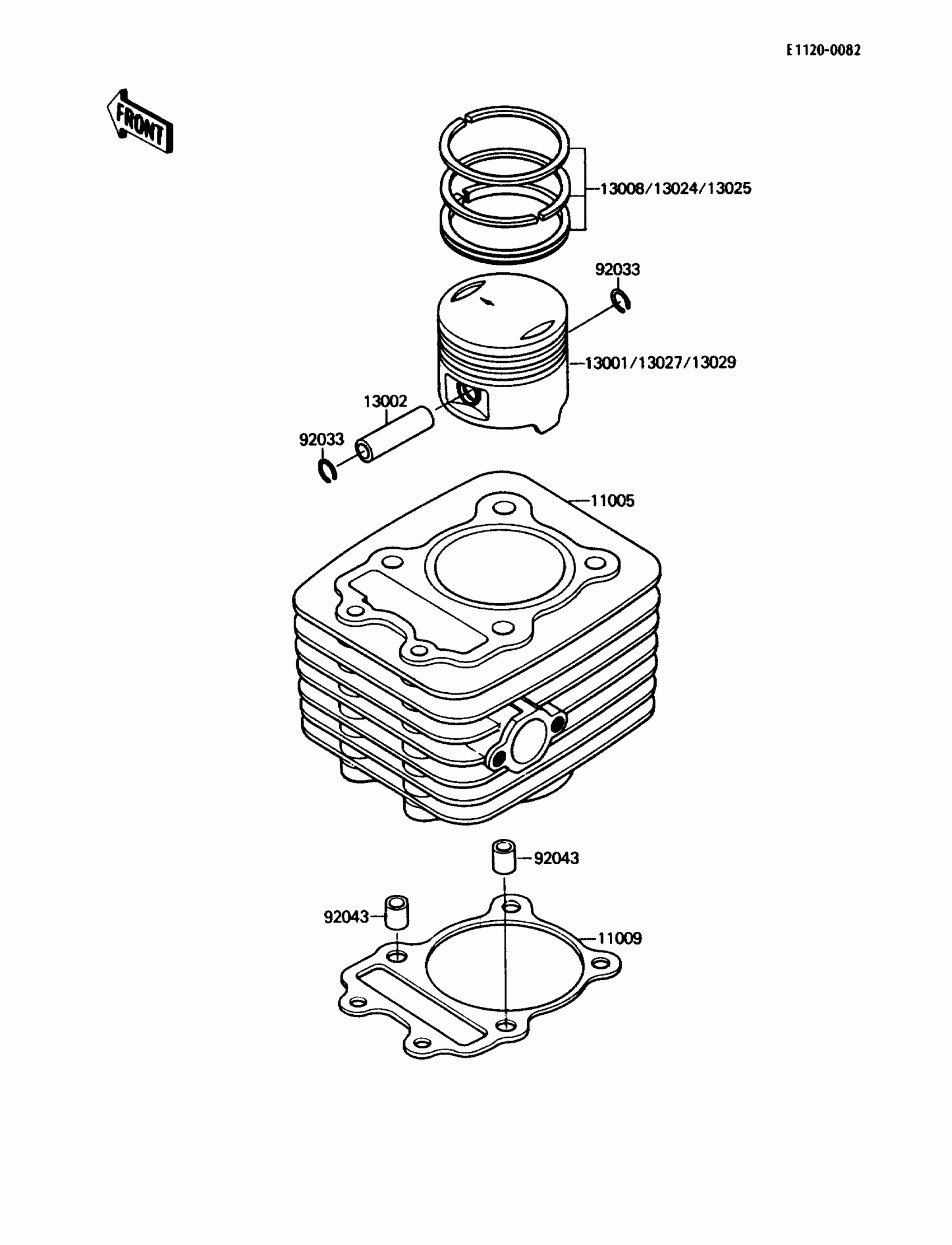

Kawasaki Mojave 110E Cylinder/Piston(s) Diagram

CYLINDER-ENGINE

11005-1454

Unavailable

GASKET,CYLINDER BASE

11009-1431

Unavailable

PISTON-ENGINE,STD

13001-1223

Unavailable

PIN-PISTON

13002-1061

$17.55

RING-SET-PISTON,STD

13008-1062

Unavailable

RING-SET-PISTON LL,O/S 1.00

13024-1011

Unavailable

RING-SET-PISTON L,O/S 0.50

13025-1011

Unavailable

PISTON-ENGINE LL,O/S 1.00

13027-1057

Unavailable

PISTON-ENGINE L,O/S 0.50

13029-1060

Unavailable

RING-SNAP

92033-1072

$3.89

PIN,8.2X10X14

92043-1264

$0.64
