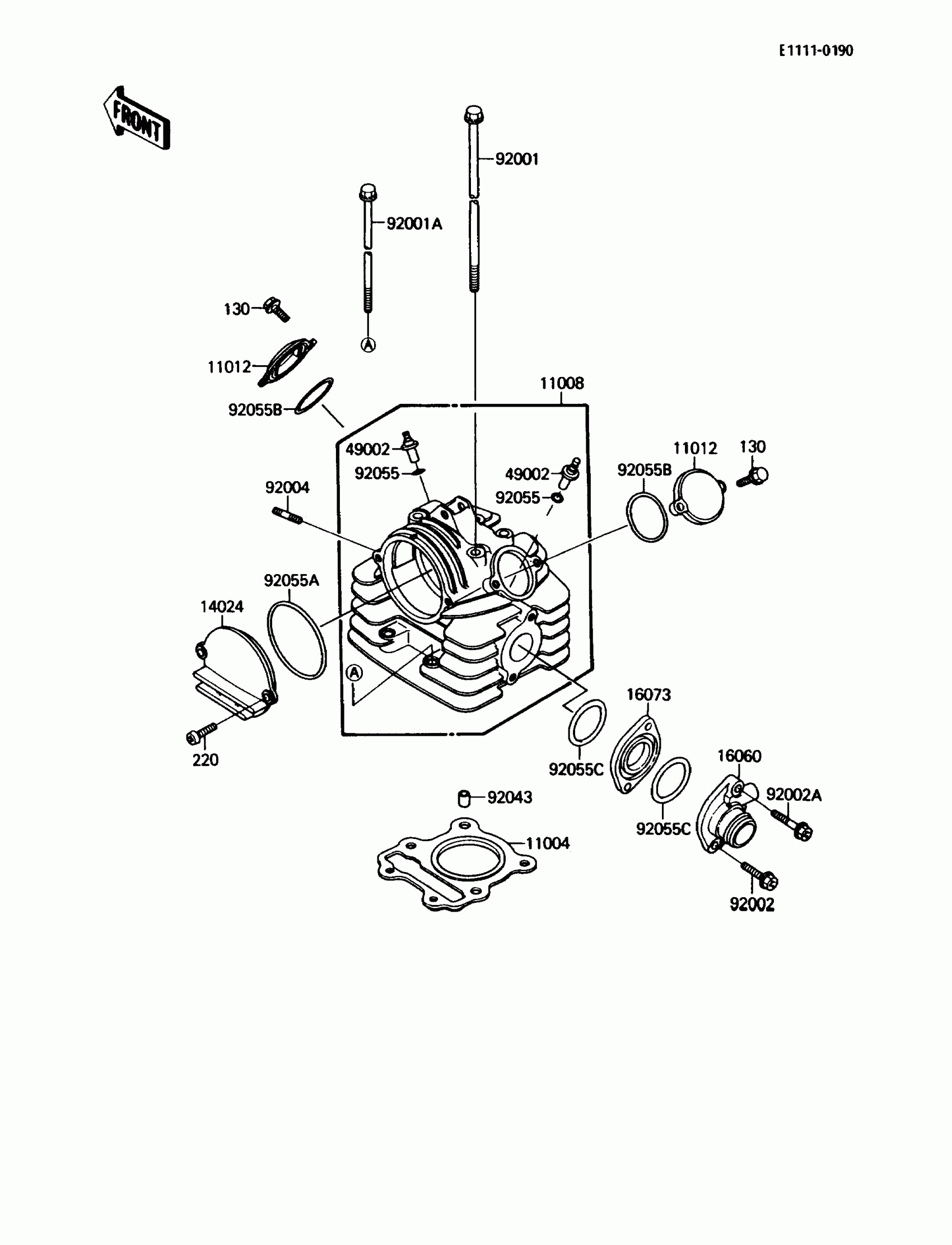

Kawasaki Mojave 110E Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1163

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1158

Unavailable

11012

CAP,VALVE ADJUSTING

11012-1560

Unavailable

14024

COVER,SPROCKET

14024-1358

Unavailable

16060

PIPE-INTAKE

16060-1009

$66.54

16073

INSULATOR,INTAKE PIPE

16073-1016

Unavailable

49002

GUIDE-VALVE

49002-1056

$32.13

92001

BOLT,FLANGED,8X196

92001-1838

Unavailable

92001A

BOLT,FLANGED,6X106

92001-1839

$8.26

92002

BOLT,6X25

92002-1235

$2.12

92002A

BOLT,6X30

92002-1295

$5.29

92004

STUD,6X18

92004-1127

$4.76

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,VALVE GUIDE

92055-1177

$8.64

92055A

RING-O,68.6MM

92055-1178

$9.57

92055B

RING-O,ADJUST CAP

92055-1231

$10.65

92055C

RING-O,30MM

92055-1232

Unavailable

130

BOLT-FLANGED

130Y0620

$3.46

220

SCREW-PAN-CROS

220X0620

$4.62
