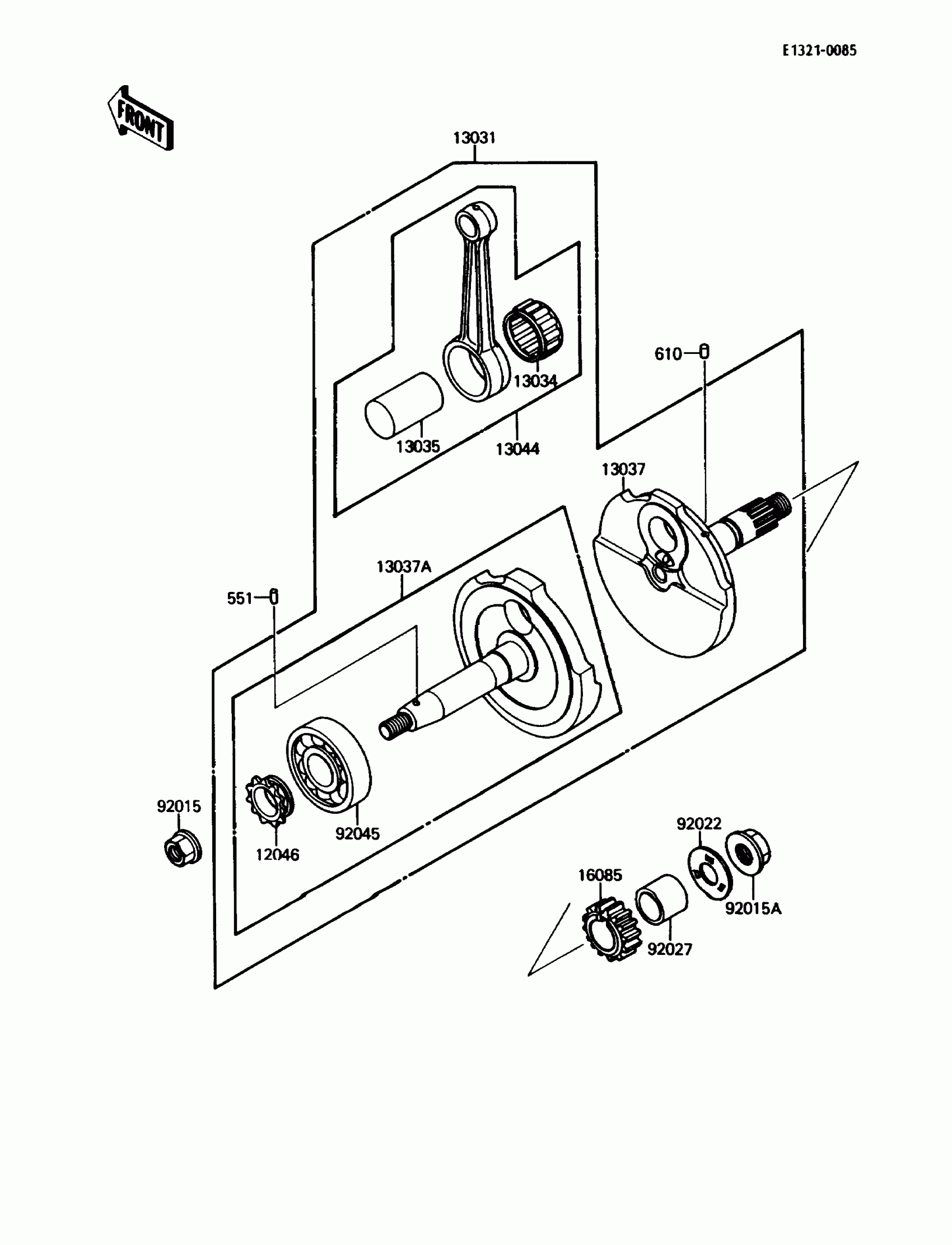

Kawasaki Mojave 110E Crankshaft Diagram

Description

Price

12046

SPROCKET,CAM CHAIN,14T

12046-1027

Unavailable

13031

CRANKSHAFT-COMP

13031-1183

Unavailable

13034

BEARING-BIG END,PK22X29X13.8X

13034-1030

Unavailable

13035

PIN-CRANK

13035-1051

Unavailable

13037

CRANKSHAFT,RH

13037-1172

Unavailable

13037A

CRANKSHAFT,LH

13037-5041

Unavailable

13044

SET-CONNECTING ROD

13044-5033

Unavailable

16085

GEAR,OIL PUMP,21T

16085-1037

$26.49

92015

NUT,FLANGED,10MM

92015-077

$4.69

92015A

NUT,FLANGED,14MM

92015-1347

Unavailable

92022

WASHER

92022-1669

Unavailable

92027

COLLAR,18X22X20.5

92027-1897

Unavailable

92045

BEARING-BALL,#6304

92045-1107

$27.62

551

PIN-DOWEL,3X6

551A0306

$1.34

610

ROLLER,4X4

610A0404

$4.69
