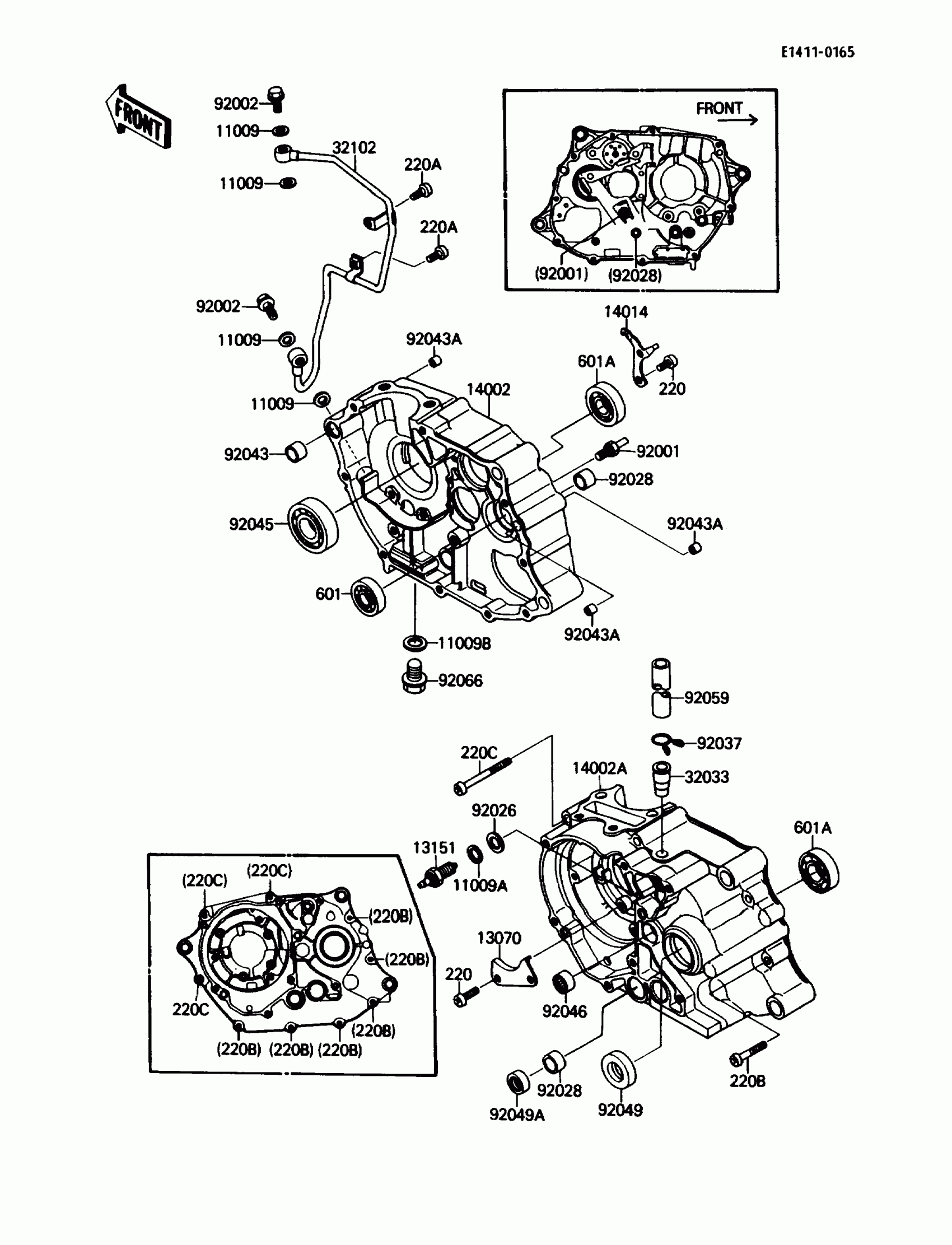

Kawasaki Mojave 110E Crankcase Diagram
#
Description
Price
11009
GASKET,8.2X14X1.0
11009-1344
$3.17
11009A
GASKET,10.5X16X1
92065-058
$3.96
11009B
GASKET,12X22X2
92065-097
$0.74
13070
GUIDE,CAM CHAIN
13070-1046
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1008
Unavailable
14002
CRANKCASE,RH
14002-1413
Unavailable
14002A
CRANKCASE,LH
14002-1414
Unavailable
14014
PLATE-POSITION
14014-1031
Unavailable
32033
PIPE,BREATHER
32033-1518
$4.06
32102
PIPE,OIL
32102-1231
$63.71
92001
BOLT,RETURN SPRING
92001-1401
$4.69
92002
BOLT,BANJO,8X22
92002-1871
$5.76
92026
SPACER,10X18X0.5
92026-1002
Unavailable
92028
BUSHING
92028-1347
$8.51
92037
CLAMP,BREATHER TUBE
92037-192
$6.52
92043
PIN,DOWEL,14X14
92042-032
Unavailable
92043A
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,#6304
92045-1107
$27.62
92046
BEARING-NEEDLE,BK1312 NTN
92046-1034
$19.48
92049
SEAL-OIL,SC22325
92049-1048
$8.86
92049A
SEAL-OIL,TB13225.5
92051-005
$7.74
92059
TUBE,BREATHER
92059-1709
$15.42
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
220A
SCREW-PAN-CROS
220X0612
$3.41
220B
SCREW-PAN-CROS
220X0635
$4.02
220C
SCREW-PAN-CROS
220X0675
$4.15
601
BEARING-BALL
601A6201
$10.69
601A
BEARING-BALL,#6203
601A6203
$14.12
