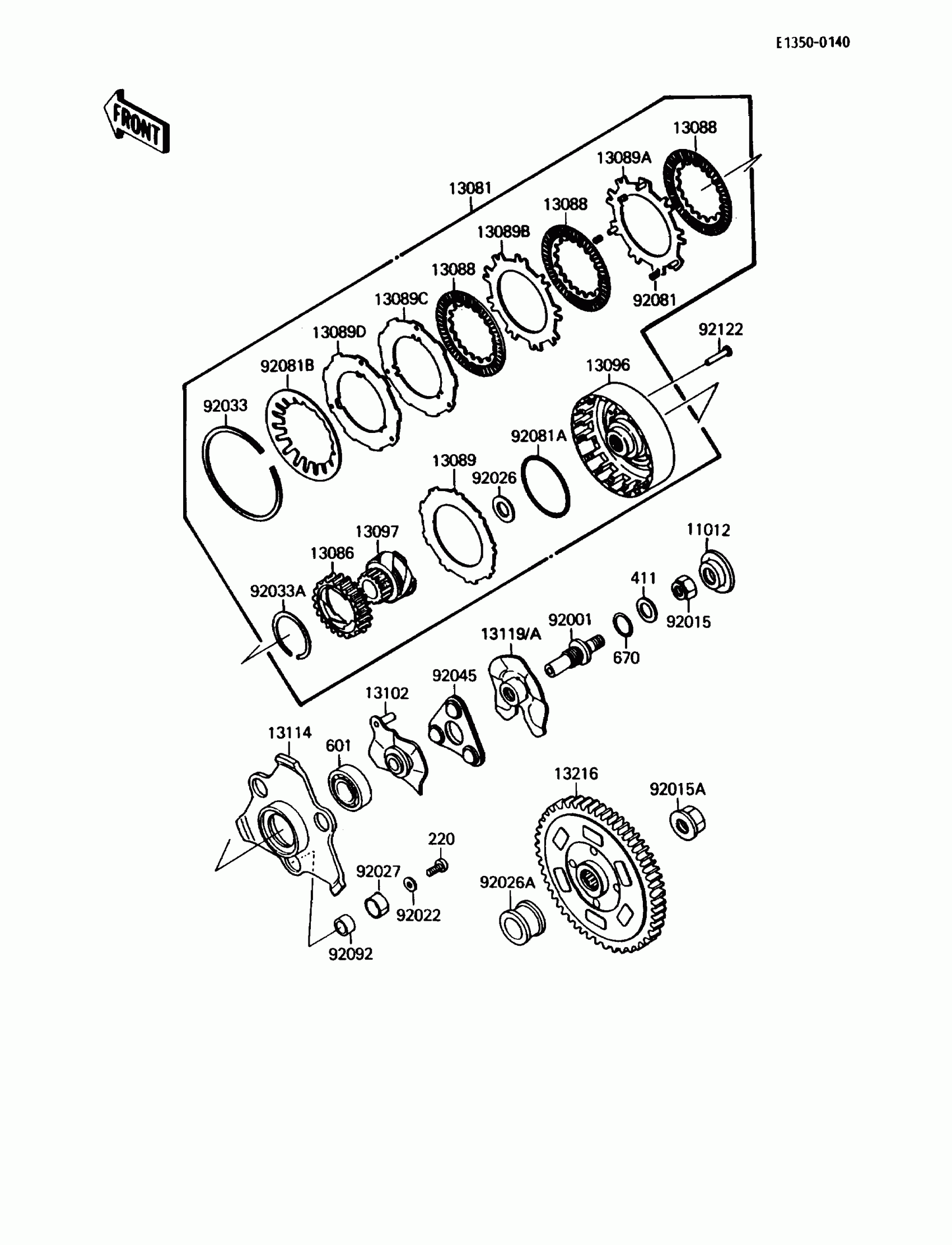

Kawasaki Mojave 110E Clutch Diagram
#
11012
CAP,CLUTCH COVER
11012-1294
$5.54
13081
CLUTCH-ASSY
13081-1097
Unavailable
13086
WHEEL-CLUTCH
13086-1011
Unavailable
13088
PLATE-FRICTION
13088-1017
Unavailable
13089
PLATE-CLUTCH
13089-1008
Unavailable
13089A
PLATE-CLUTCH
13089-1013
Unavailable
13089B
PLATE-CLUTCH
13089-1014
Unavailable
13089C
PLATE-CLUTCH
13089-1015
Unavailable
13089D
PLATE-CLUTCH
13089-1016
Unavailable
13096
HOUSING-CLUTCH
13096-1032
Unavailable
13097
GEAR-PRIMARY SPUR,21T
13097-1086
Unavailable
13102
RELEASE-COMP-CLUTCH
13102-1073
Unavailable
13114
PUSHER-CLUTCH
13114-1054
Unavailable
13119A
CAM-RELEASE,CLUTCH
13119-1061
Unavailable
13216
GEAR-COMP,CLUTCH
13216-1040
Unavailable
92001
BOLT,CLUTCH RELEASE
92001-1906
Unavailable
92015
NUT,8MM
92015-1136
Unavailable
92015A
NUT,FLANGED,14MM
92015-1341
$21.74
92022
WASHER,5.2X17X1
92022-1312
$2.55
92026
SPACER,18.5X30X1.6
92026-1082
Unavailable
92026A
SPACER,L=19
92026-1130
Unavailable
92027
COLLAR,14X15X7.5
92027-1442
$5.23
92033
RING-SNAP
92033-1059
$8.96
92033A
RING-SNAP,46MM
92033-1101
Unavailable
92045
BEARING-BALL,CLUTCH RELEASE
92045-1119
$20.99
92081
SPRING
92081-1527
$4.45
92081A
SPRING,COIL
92081-1566
Unavailable
92081B
SPRING,CONICAL
92081-1629
$36.79
92092
BUSHING-RUBBER,10.5X14X7.5
92092-1017
$5.17
92122
ROLLER,4MM
92122-1034
$7.24
220
SCREW-PAN-CROS
220B0512
$0.47
411
WASHER PLAIN 8MM
411B0800
$0.93
601
BEARING-BALL,#6200
601A6200Z
$10.59
670
O RING,8MM
670B1508
$1.29
