Description

Price

11009

GASKET,FLOAT CHAMBER

11009-1375

$18.63

13183

PLATE

13183-1088

Unavailable

13183A

PLATE

13183-1089

Unavailable

15001

CARBURETOR-ASSY

15001-1272

Unavailable

16002

ADJUSTER-CABLE

16002-1056

$23.96

16005

TOP-CHAMBER,MIXING

16005-1053

Unavailable

16005A

TOP-CHAMBER

16005-1062

$28.53

16007

SEAT-SPRING

16007-1103

$7.27

16009

NEEDLE-JET,N17B

16009-1286

$35.35

16014

SCREW-PILOT AIR

16014-1051

$17.15

16017

JET-NEEDLE

16017-1211

$45.79

16021

SCREW-THROTTLE STOP

16021-1119

Unavailable

16025

VALVE-THROTTLE,CA 3.0

16025-1135

$63.71

16030

VALVE-FLOAT

16030-1052

Unavailable

16031

FLOAT

16031-1053

$59.96

16065

HOLDER-CARBURETOR

16065-1067

Unavailable

16065A

HOLDER-CARBURETOR,NEEDLE JET

16065-1105

Unavailable

16065B

HOLDER-CARBURETOR,JET

16065-1106

$13.97

92009

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

92009A

SCREW,5X10

92009-1365

$7.34

92015

NUT,CABLE ADJUST LOCK

92015-1574

$6.57

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,CONNECTOR

92037-1127

$11.07

92037A

CLAMP,TUBE

92037-1142

$4.31

92037B

CLAMP,TUBE

92037-1194

$6.15

92037C

CLAMP,JET NEEDLE

92037-1401

$4.31

92037D

CLAMP,FLOAT VALVE

92037-1476

$7.49

92043

PIN,FLOAT

92043-1209

$6.16

92055

RING-O

92055-1053

$4.69

92059

HOSE,FUEL OVERFLOW

92059-1046

Unavailable

92059A

TUBE,5.3X10.5X330

92059-1791

$27.10

92059B

TUBE,L=285

92059-1792

Unavailable

92063

JET-MAIN,#92

92063-1321

$14.80

92063A

JET-MAIN,#82

92063-1325

$17.39

92063B

JET-MAIN,#85

92063-1326

$15.45

92063C

JET-MAIN,#90

92063-1327

$17.40

92063D

JET-MAIN,#88

92063-1328

$15.72

92064

JET-PILOT,#35

92064-1102

Unavailable

92064A

JET-PILOT,#32

92064-1126

Unavailable

92064B

JET-PILOT,#38

92064-1127

Unavailable

92081

SPRING,PILOT AIR SCREW

92081-1631

Unavailable

92144

SPRING,THROTTLE STOP SCREW

92144-1116

Unavailable

92144A

SPRING,THROTTLE VALVE

92144-1128

$35.97

120

BOLT-SOCKET,6X14

120P0614

$3.82

223

SCREW-PAN-WS-CROS

223B0412

Unavailable

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

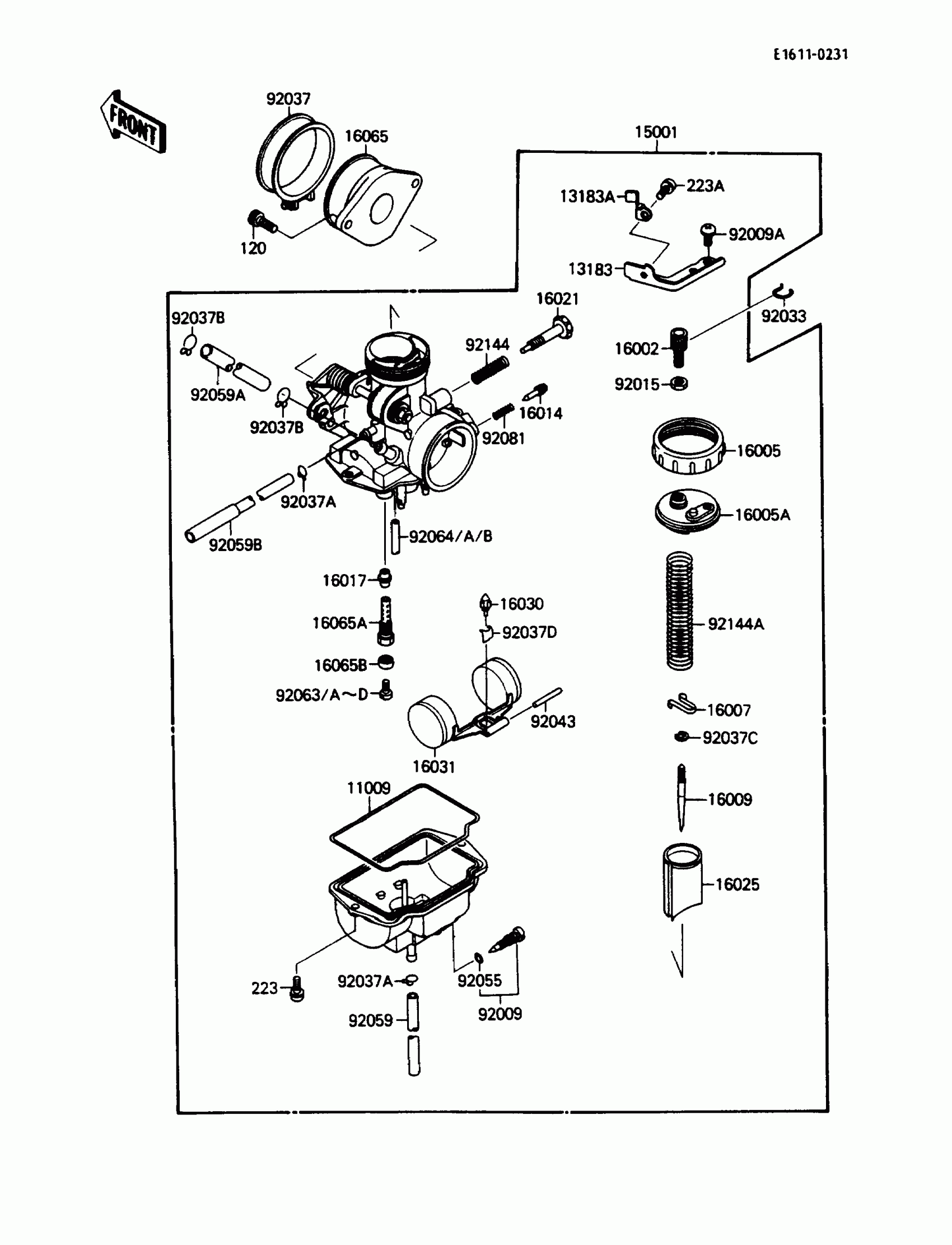

Kawasaki Mojave 110E Carburetor Diagram

GASKET,FLOAT CHAMBER

PLATE

PLATE

CARBURETOR-ASSY

ADJUSTER-CABLE

TOP-CHAMBER,MIXING

TOP-CHAMBER

SEAT-SPRING

NEEDLE-JET,N17B

SCREW-PILOT AIR

JET-NEEDLE

SCREW-THROTTLE STOP

VALVE-THROTTLE,CA 3.0

VALVE-FLOAT

FLOAT

HOLDER-CARBURETOR

HOLDER-CARBURETOR,NEEDLE JET

HOLDER-CARBURETOR,JET

SCREW,DRAIN,M6X1.0

SCREW,5X10

NUT,CABLE ADJUST LOCK

RING-SNAP

CLAMP,CONNECTOR

CLAMP,TUBE

CLAMP,TUBE

CLAMP,JET NEEDLE

CLAMP,FLOAT VALVE

PIN,FLOAT

RING-O

HOSE,FUEL OVERFLOW

TUBE,5.3X10.5X330

TUBE,L=285

JET-MAIN,#92

JET-MAIN,#82

JET-MAIN,#85

JET-MAIN,#90

JET-MAIN,#88

JET-PILOT,#35

JET-PILOT,#32

JET-PILOT,#38

SPRING,PILOT AIR SCREW

SPRING,THROTTLE STOP SCREW

SPRING,THROTTLE VALVE

BOLT-SOCKET,6X14

SCREW-PAN-WS-CROS

SCREW-PAN-WS-CROS,4X10
