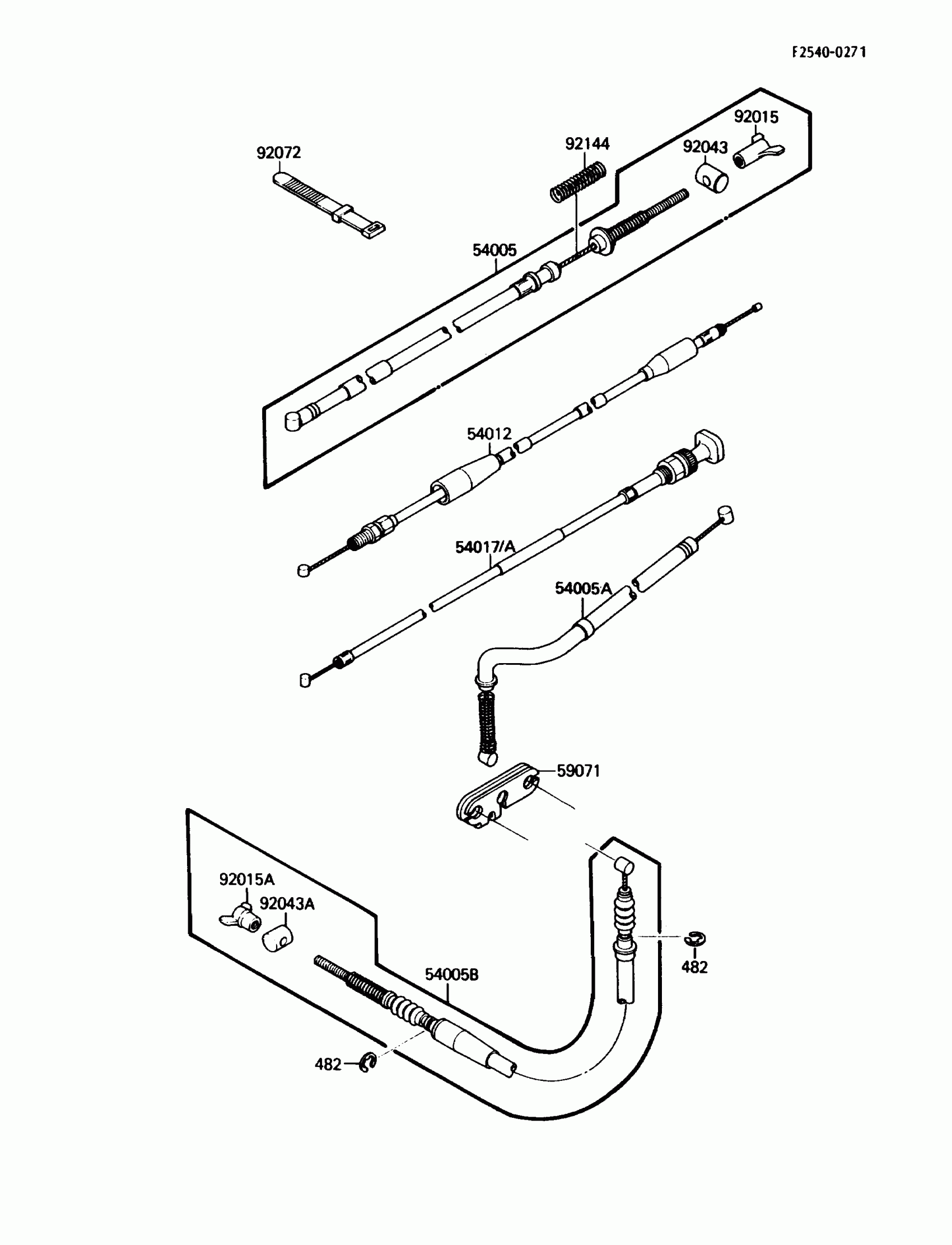

Kawasaki Mojave 110E Cables Diagram

Description

Price

54005

CABLE-BRAKE,RR

54005-1132

Unavailable

54005A

CABLE-BRAKE,FR,UPP

54005-1133

Unavailable

54005B

CABLE-BRAKE,FR,LWR

54005-1134

Unavailable

54012

CABLE-THROTTLE

54012-1306

$41.79

54017A

CABLE-STARTER

54017-1099

$37.21

59071

JOINT,FRONT BRAKE

59071-1119

Unavailable

92015

NUT,WING,6MM

92015-1497

Unavailable

92015A

NUT,WING,6MM

92015-4004

$7.29

92043

PIN,12X20

92043-1280

Unavailable

92043A

PIN,BRAKE CABLE

92043-1334

Unavailable

92072

BAND,L=149

92072-031

$5.00

92144

SPRING,BRAKE ACBLE

92144-1099

Unavailable

482

CIRCLIP-TYPE-E

482L7000

$3.92
