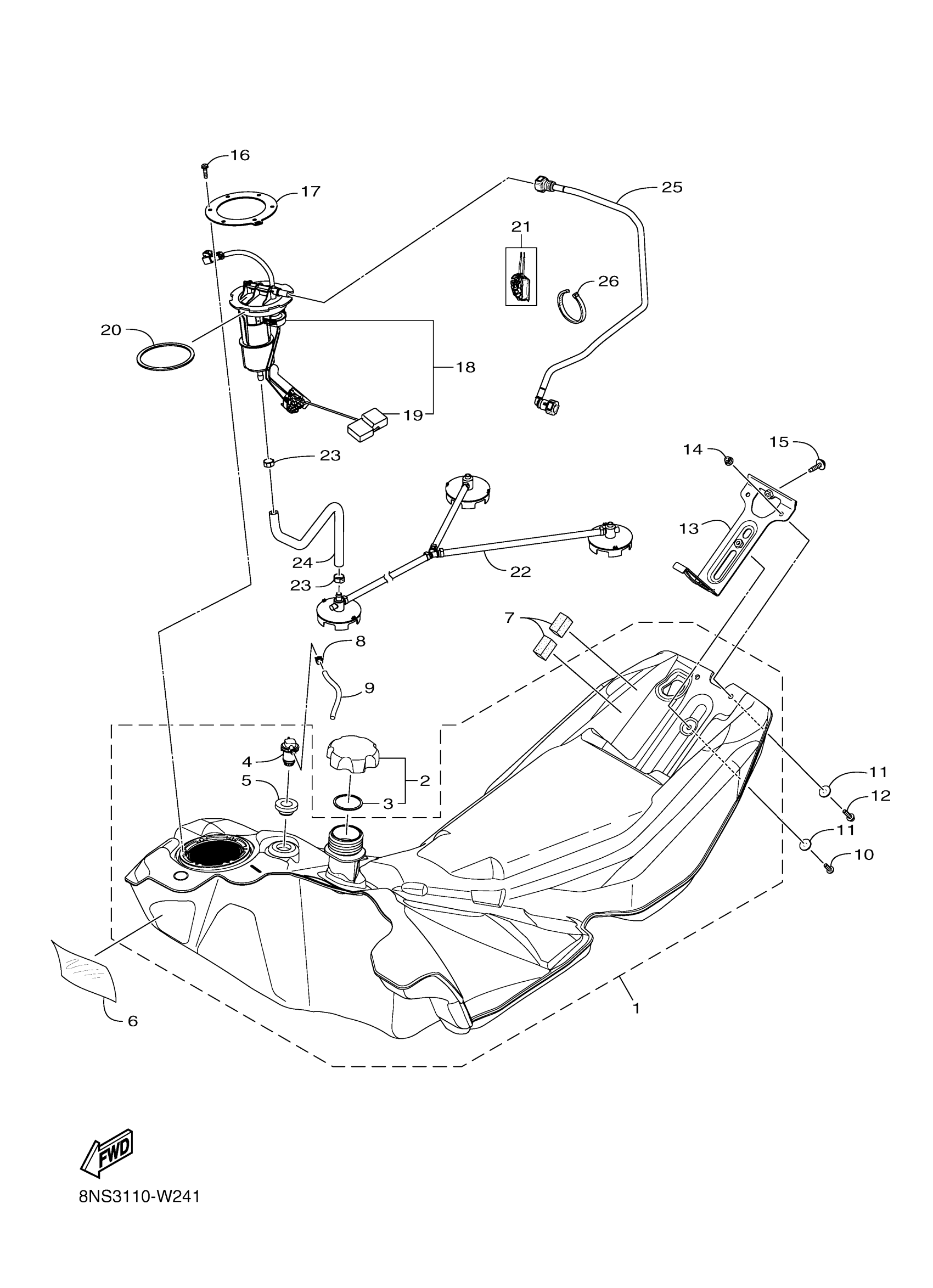

Yamaha MM8N65ML (MOUNTAIN MAX 800 165) 8NR3 2021 FUEL TANK Diagram

FUEL TANK ASSY

8NS-F4100-00-00

Unavailable

CAP ASSY

8ND-F4610-00-00

Unavailable

SEAL, GAS CAP

8JM-F4641-00-00

Unavailable

VALVE, CHECK 1

8JP-F4362-10-00

Unavailable

GROMMET

8JP-E5366-10-00

$3.76

TAPE,ALUM FOIL - 6" X 30 FT

8JM-F199H-00-00

Unavailable

PROTECTOR, FUEL TA

8NS-F4141-00-00

$3.40

CLAMP, 10

8JP-RAB12-00-00

$0.54

HOSE, 3 (50 FEET)

8JP-RA907-00-00

$295.99

BOLT, FLANGE

8MF-RA100-00-00

Unavailable

WASHER 1

8KC-K7525-00-00

$0.54

SCREW

8MF-RA204-00-00

Unavailable

BRACKT, TANK FITTI

8NS-F134U-00-00

$58.99

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

SCREW

8NS-RA257-00-00

Unavailable

SCREW, M5X0.8X20

8JP-RA242-00-00

Unavailable

BRACKET, FUEL PUMP

8NS-F4491-00-00

Unavailable

FUEL PUMP COMP.

8ND-E3907-00-00

Unavailable

FLOAT

8JP-H369N-00-00

Unavailable

O-RING

8JP-F4486-00-00

Unavailable

SENDER ASSY

8LN-H5701-00-00

Unavailable

FILTER, FUEL

8ND-F4502-00-00

Unavailable

CLAMP, 6

8JP-RAB08-00-00

Unavailable

HOSE, FUEL INLET

8ND-F451B-00-00

Unavailable

FUEL PIPE ASSY

8NV-F4310-00-00

Unavailable

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable
