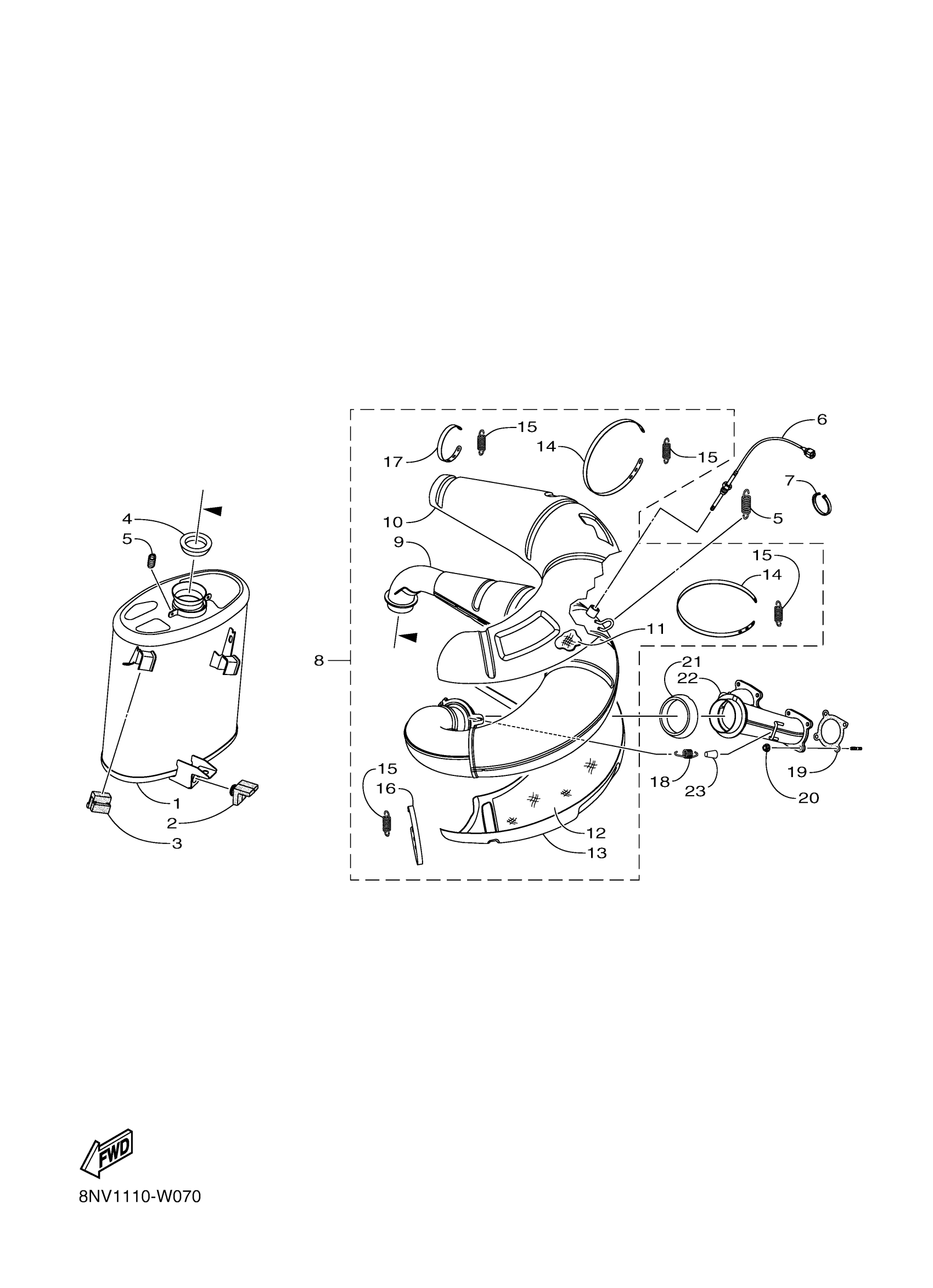

Yamaha MM8N65ML (MOUNTAIN MAX 800 165) 8NR3 2021 EXHAUST Diagram

#

Description
Price

1

SILENCER ASSY

8NV-E4750-00-00

$1,052.99

2

GROMMET

8ND-E5357-00-00

$7.98

3

GROMMET

8ND-E5375-00-00

$24.18

4

GASKET, MUFFLER

8NV-E4714-00-00

$34.92

5

SPRING, 3

8ND-RAD14-00-00

$7.71

6

SENSOR, HEAT

8ND-E4277-00-00

$259.97

7

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

8

EXHAUST PIPE ASSY

8NV-E4610-00-00

Unavailable

9

EXHAUST PIPE ASSY

8NV-E4620-00-00

Unavailable

10

PROTECTOR, MUFFLER

8NV-E4728-00-00

$83.21

11

. MAT 2

8NV-E4736-00-00

Unavailable

12

MAT 1

8NV-E4733-00-00

$19.61

13

PROTECTOR, MUFFLER

8NV-E4718-00-00

Unavailable

14

BAND, SILENCER

8ND-E4788-00-00

Unavailable

15

SPRING, EXHAUST STRAP

8JM-RAD05-00-00

$3.62

16

BAND, SILENCER 3

8NV-E4796-00-00

Unavailable

17

BAND, SILENCER 3

8ND-E4796-00-00

Unavailable

18

SPRING, MUFFLER

8NS-E4773-00-00

Unavailable

19

GASKET, EXHAUST PI

8NV-E4613-00-00

Unavailable

20

NUT, HEXAGON

8ND-RA366-00-00

Unavailable

21

GASKET, EXHAUST PI

8NV-E4623-00-00

Unavailable

22

PIPE, EXHAUST 3

8NV-E4631-00-00

Unavailable

23

SPRING, MUFFLER

8NS-E4773-00-00

Unavailable
