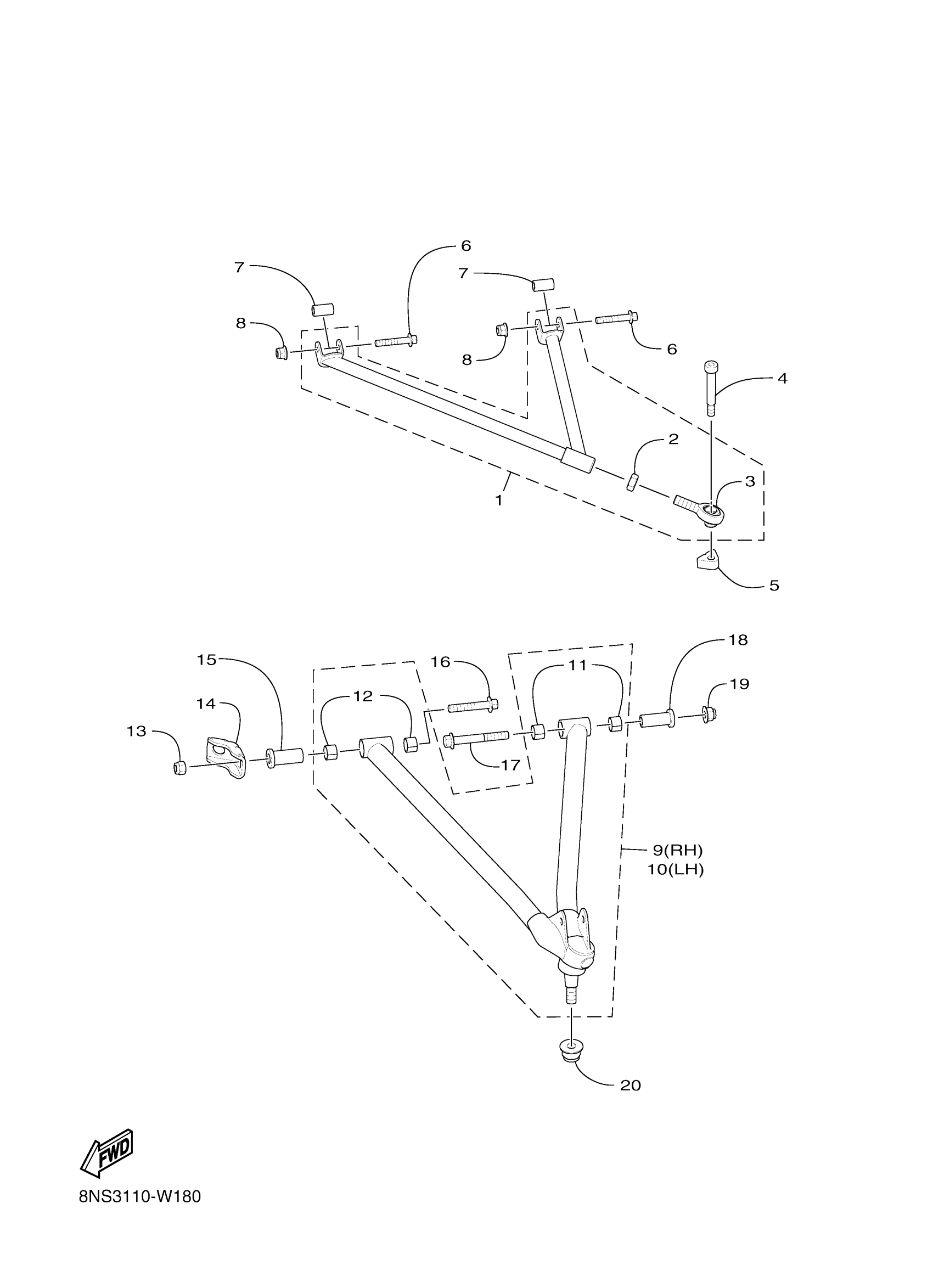

Yamaha MM8N65EPL (MOUNTAIN MAX 800 165 ES) 8NR5 2023 FRONT SUSPENSION Diagram

#

Description
Price

1

ARM, FRONT UPPER

8KU-F354A-00-00

Unavailable

2

NUT

8KU-F3778-00-00

$1.59

3

JOINT, UNIVERSAL 1

8KU-F3841-00-00

$41.99

4

BOLT

8KU-F3767-00-00

$3.50

5

NUT

8KU-F3856-00-00

$3.88

6

BOLT,FLG. M8X1.25X45

8KG-RA190-00-00

Unavailable

7

COLLAR 8

8KG-RA720-00-00

$9.49

8

NUT,SELF-LOCKING M8-1.25

8KG-RA301-00-00

Unavailable

9

ARM,FR. LWR. RH.

8KU-F358A-00-00

$387.99

10

ARM,FR. LWR. LH.

8KU-F357A-00-00

$336.99

11

BUSH, 10DU10

8JP-RA807-00-00

$8.49

12

BUSH, 1815DU

8JP-RA811-00-00

$4.88

13

NUT, FLG. LOCKING

8JP-RA361-00-00

$1.86

14

ARM, 1

8JP-F3543-00-00

Unavailable

15

COLLAR, 9

8JP-RA721-00-00

$16.99

16

BOLT, FLG. M12X1.2

8JP-RA1A7-00-00

Unavailable

17

BOLT, FLG. M10-1.2

8JP-RA194-20-00

Unavailable

18

COLLAR 7

8KU-RA719-00-00

Unavailable

19

NUT, FLG. LOCKING

8JP-RA360-00-00

Unavailable

20

NUT, FLG. LOCKING

8JP-RA362-00-00

Unavailable
