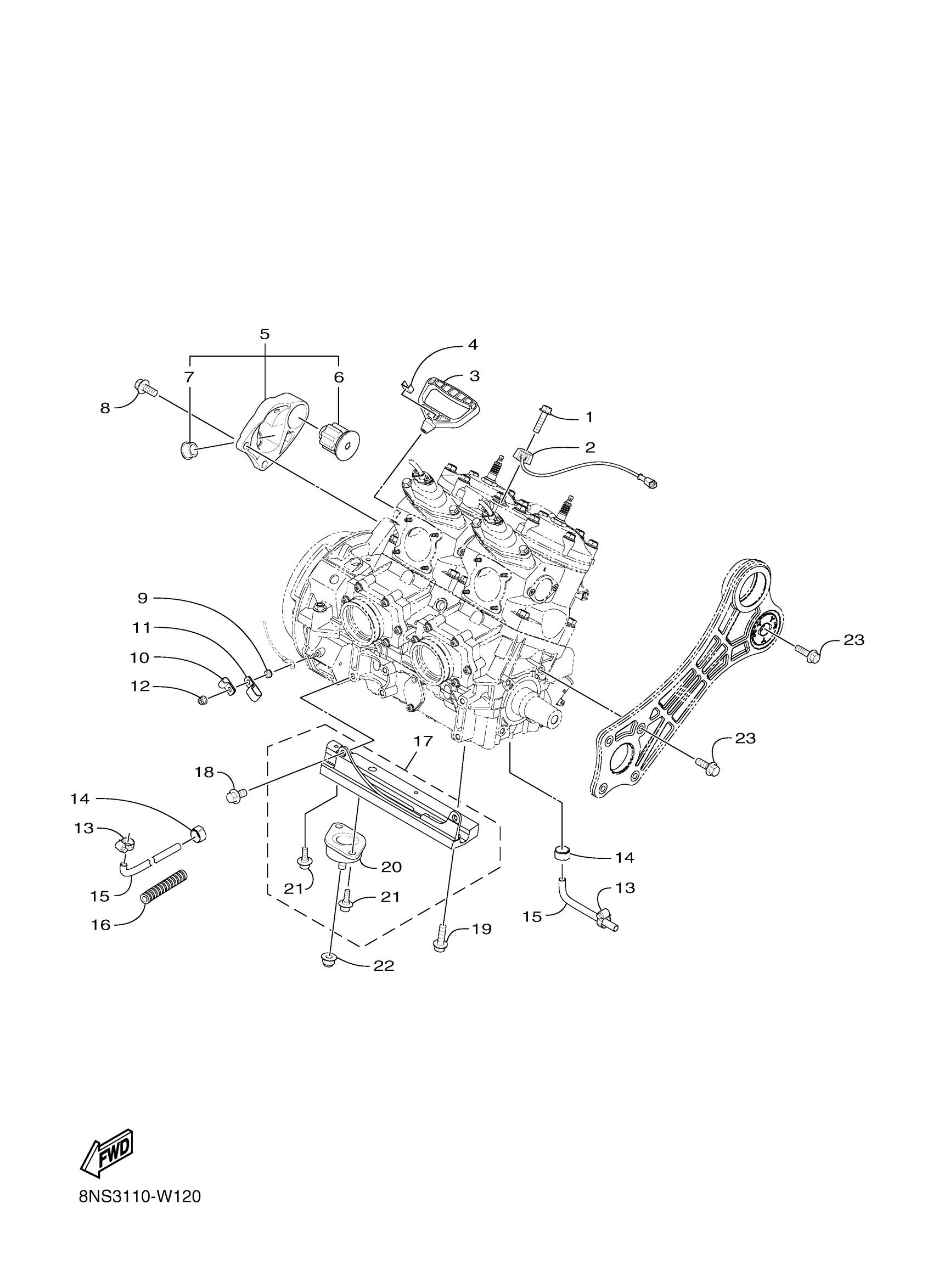

Yamaha MM8N65ENS (MOUNTAIN MAX 800 165 LE) 8NR4 2022 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT, FLANGE

8ND-RA100-00-00

Unavailable

2

SENSOR, KNOCK

8ND-H5780-00-00

$87.98

3

HANDLE, STARTER

8ND-E5755-00-00

Unavailable

4

CAP, HANDLE

8ND-E5720-00-00

$2.00

5

ENGINE BRACKET COM

8ND-F1410-00-00

Unavailable

6

DAMPER 2

8ND-F1486-00-00

$58.67

7

BUSH, FLANGE

8ND-RA818-00-00

Unavailable

8

BOLT, FLANGE

8ND-RA117-00-00

Unavailable

9

NUT, WITH WASHER M

8JP-RA375-00-00

$0.36

10

CLAMP, 17

8JP-RAB19-00-00

Unavailable

11

CLAMP, 3

8ND-RAB05-00-00

Unavailable

12

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.06

13

CLAMP, HOSE #4 (6202)

8JM-RAA00-00-00

$3.18

14

CLAMP, 6

8JP-RAB08-00-00

$1.82

15

HOSE 2

8ND-E243E-10-00

$59.03

16

MEMBER 4

8ND-F2824-00-00

Unavailable

17

PLATE, ENGINE MOUN

8NV-F145B-00-00

Unavailable

18

BOLT, FLANGE

8ND-RA118-00-00

Unavailable

19

BOLT, FLANGE

8ND-RA121-00-00

Unavailable

20

DAMPER, RUBBER 1

8NV-F1485-00-00

Unavailable

21

SCREW

8ND-RA209-00-00

Unavailable

22

NUT, FLG. LOCKING

8JP-RA360-00-00

Unavailable

23

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable
