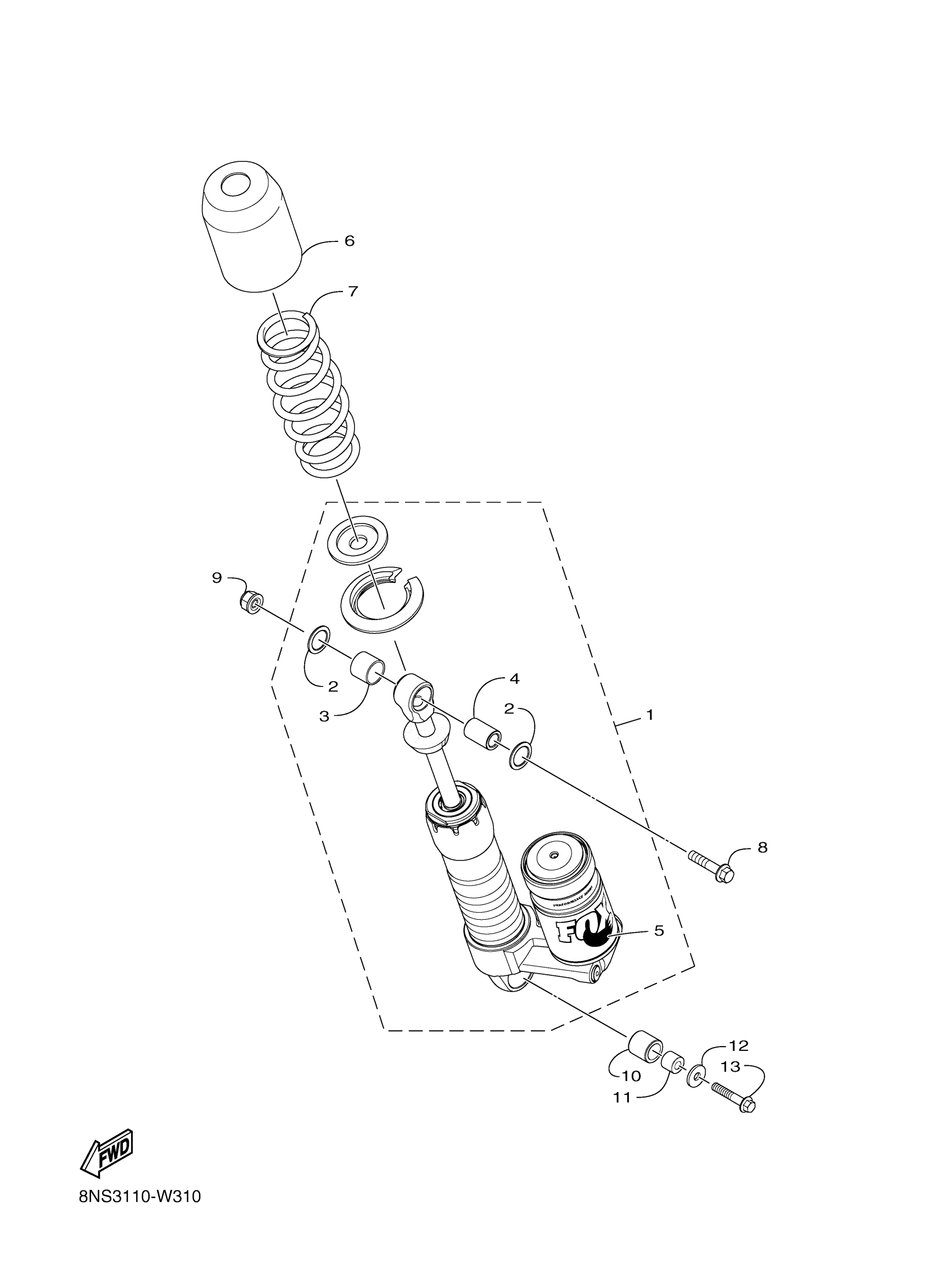

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

DAMPER ASSY

8NS-F330E-00-00

$1,251.99

2

SPACER

8MF-G7341-00-00

Unavailable

3

BUSH, SHOCK

8KN-RA819-30-00

Unavailable

4

COLLAR, 22.2

8MF-RA729-00-00

Unavailable

5

LABEL 6

8JW-F151J-00-00

$34.99

6

COVER

8JP-F2211-00-00

Unavailable

7

SPRING

8NS-G7335-00-00

$210.99

8

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

$1.75

9

NUT FLANGE LOCKING

8JP-RA360-10-00

$1.16

10

COLLAR, 22.4

8JP-RA730-00-00

$7.49

11

SHAFT 5

8NS-G7487-00-00

$12.49

12

WASHER, M10X29

8JP-RA453-00-00

$1.86

13

BOLT, FLANGE

8NS-RA108-00-00

$4.99
