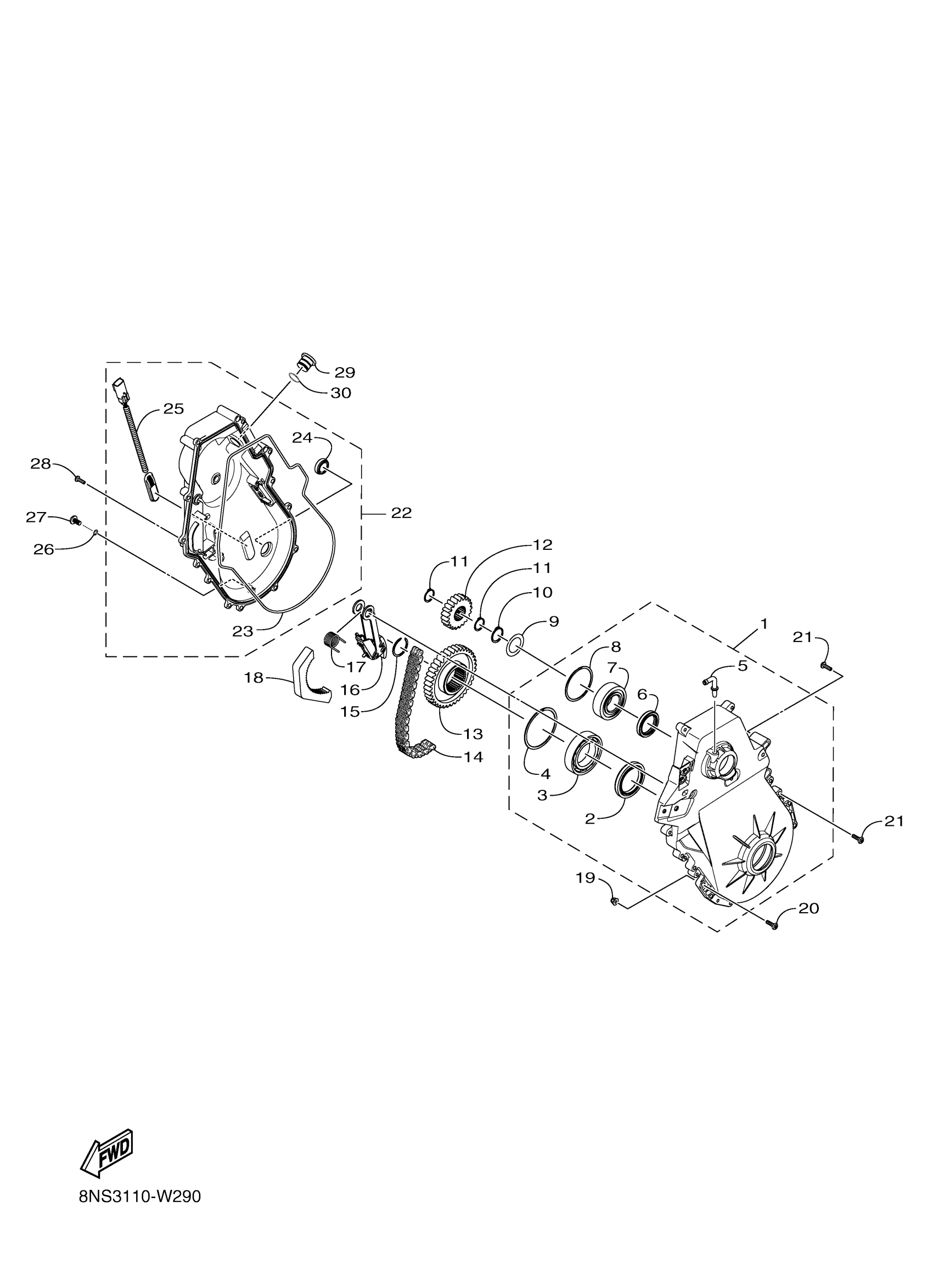

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 TRACK DRIVE 2 Diagram

CHAIN CASE ASSY.

8NS-G754A-00-00

$374.99

SEAL, OIL 50X65X8

8JP-RAE03-00-00

$35.99

BEARING, 6009

8JP-RAG05-00-00

$16.99

CIRCLIP, EH-75

8JP-RAH05-00-00

$4.35

. BREATHER

8JP-G7586-00-00

Unavailable

SEAL, OIL 35X47X7

8JP-RAE01-00-00

Unavailable

BEARING, 2206K

8JP-RAG04-10-00

$36.99

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

WASHER, 3

8ND-RA434-00-00

Unavailable

CIRCLIP, 5

8JP-RAC04-00-00

$2.49

CIRCLIP, 4

8NS-RAC03-00-00

$3.40

DRIVE SPROCKET ASS

8NS-E769A-00-00

$49.99

SPROCKET, CHAIN DR

8NS-G7587-00-00

Unavailable

CHAIN, BWA

8NS-RAM01-00-00

Unavailable

CIRCLIP, 4

8JP-RAC03-00-00

$3.18

CHAIN TENSIONER AS

8ND-G7610-00-00

Unavailable

SPRING, 1

8JP-RAD12-00-00

Unavailable

TENSIONER

8ND-G7611-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

SCREW, M6X1.0X30

8JP-RA266-00-00

Unavailable

SCREW, TAPPING M6X

8JP-RA283-00-00

Unavailable

HOUSING CAP ASSY.

8NS-G754B-00-00

Unavailable

RING, HOUSING

8MT-G7558-00-00

Unavailable

GAUGE, LEVEL

8JP-E5361-00-00

Unavailable

SENSOR, SPEED

8JP-H5985-00-00

Unavailable

O-RING, 2

8MT-RAF04-00-00

Unavailable

SCREW, M5X0.8X35

8MT-RA247-00-00

Unavailable

SCREW

8KG-RA229-00-00

Unavailable

PLUG

8NV-G7575-00-00

Unavailable

O-RING, 2

8JP-RAF04-00-00

Unavailable
