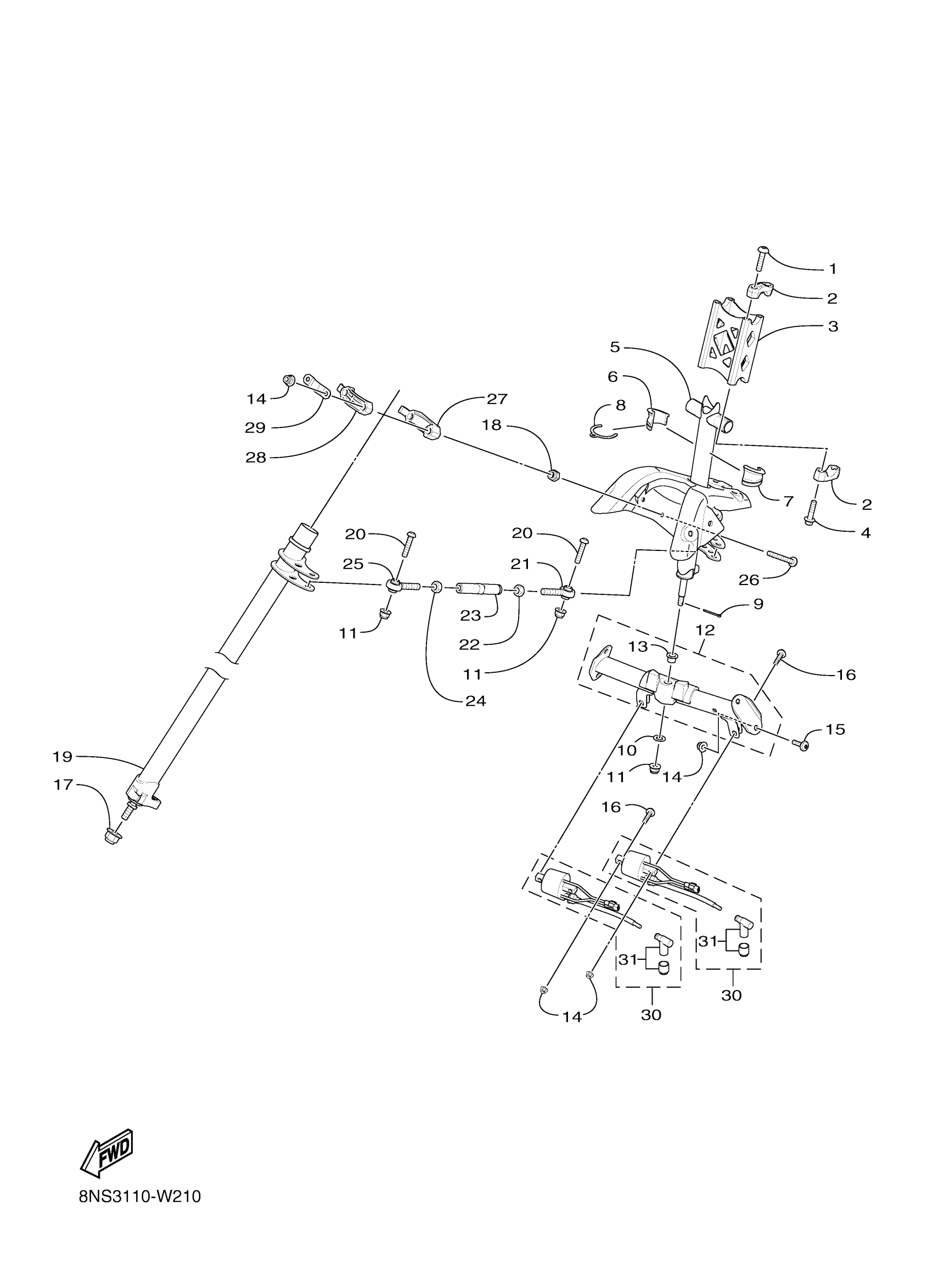

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 STEERING 2 Diagram
#
1
SCREW,9
8KG-RA298-00-00
$1.64
2
HOLDER, HANDLE UPP
8JP-F3814-10-00
$17.99
3
JOINT
8JP-F381B-60-00
$117.99
4
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
5
COLUMN, STEERING
8NS-F3811-00-00
Unavailable
6
BEARING 2
8NS-F51H2-00-00
Unavailable
7
BEARING
8NS-F51H1-00-00
Unavailable
8
CIRCLIP, 1
8NS-RAH00-00-00
Unavailable
9
PIN, COTTER
8NS-F3433-00-00
$0.85
10
WASHER, THRUST
8NS-F5146-00-00
Unavailable
11
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
12
BRACKET 1
8NS-F3881-00-00
$163.99
13
BEARING, STEERING
8NS-F3812-00-00
$13.49
14
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
15
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
16
SCREW, M6X1.0X30
8JP-RA265-00-00
Unavailable
17
LOCK NUT
8JP-RA378-01-00
Unavailable
18
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
19
COLUMN, STEERING 2
8NS-F3813-00-00
Unavailable
20
SCREW, M8X1.25X37
8JP-RA274-00-00
Unavailable
21
JOINT, UNIVERSAL 2
8JP-F3845-00-00
Unavailable
22
NUT, HEX. M10X1.25
8JP-RA369-00-00
Unavailable
23
ROD, STEERING
8NS-F3828-00-00
Unavailable
24
NUT, HEX. M10-1.25
8JP-RA368-00-00
Unavailable
25
JOINT, UNIVERSAL 1
8NS-F3841-00-00
Unavailable
26
SCREW, 10
8ND-RA299-00-00
Unavailable
27
BEARING, STEERING
8ND-F3812-00-00
Unavailable
28
BEARING,STEERING
8KG-F3812-00-00
Unavailable
29
HOLDER, BEARING
8JP-F3872-00-00
Unavailable
30
IGNITION COIL ASSY
8ND-H2310-00-00
Unavailable
31
PLUG CAP ASSY
8ND-H2370-00-00
Unavailable
