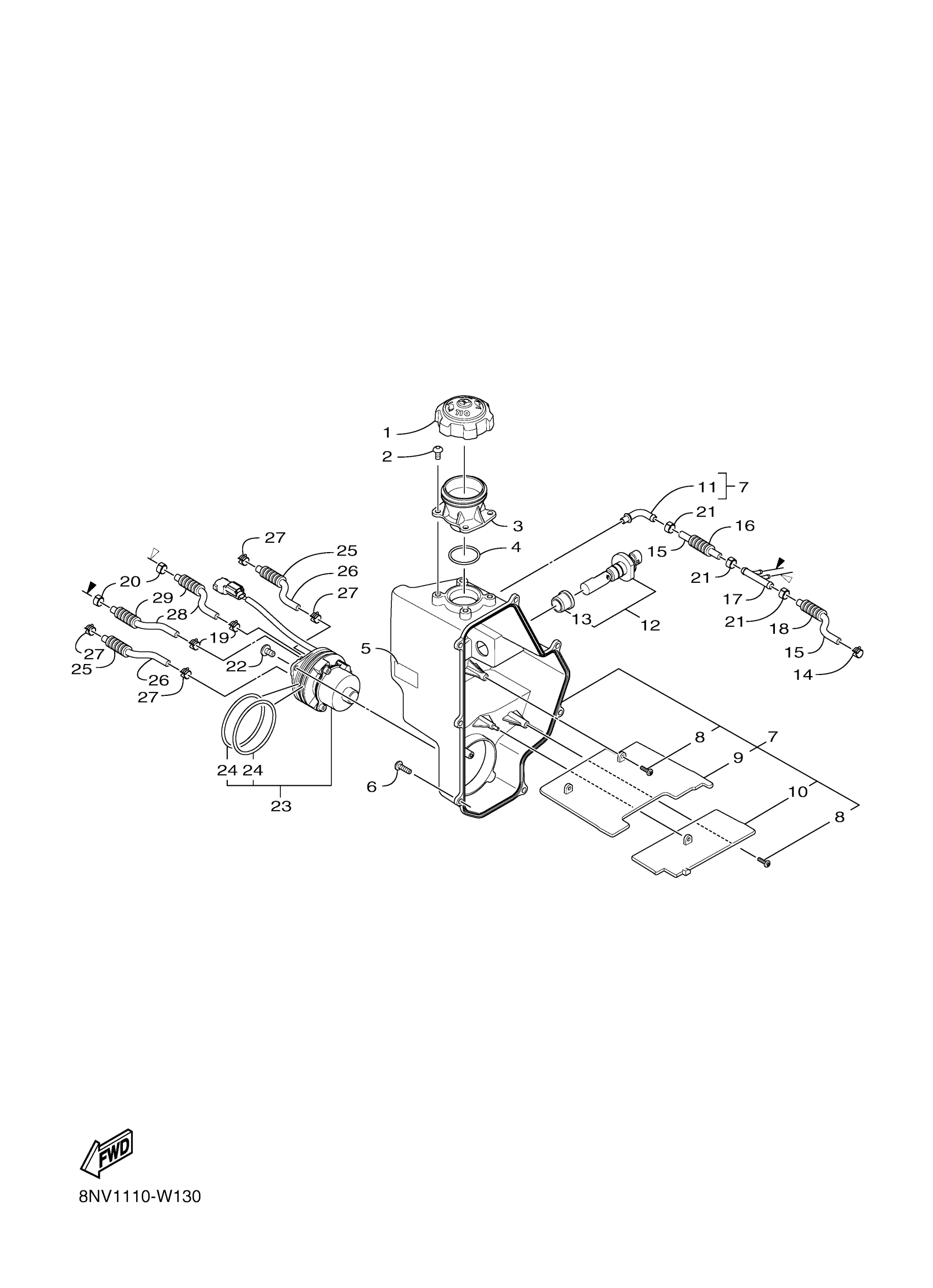

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 OIL TANK Diagram
#
1
BODY, CAP
8ND-F1771-00-00
$44.99
2
SCREW, TAPPING M6X
8JP-RA282-00-00
$2.12
3
NECK, FILLER
8ND-F1812-00-00
$98.99
4
O-RING, 6
8ND-RAF08-00-00
$1.86
5
OIL, LABEL
8ND-F178B-00-00
$8.49
6
SCREW, TAPPING M6X
8JP-RA283-00-00
$1.43
7
TANK, OIL
8ND-F1751-10-00
$355.99
8
SCREW, TAPPING
8ND-RA283-00-00
Unavailable
9
PLATE, BAFFLE
8ND-E3317-00-00
Unavailable
10
PLATE, BAFFLE LOWE
8ND-E3337-00-00
Unavailable
11
ELBOW
8ND-F1828-00-00
Unavailable
12
LEVEL GAUGE ASSY
8ND-F176T-00-00
Unavailable
13
LEVEL GAUGE ASSY
8ND-F176T-00-00
Unavailable
14
CLAMP, 1
8ND-RAB00-00-00
Unavailable
15
HOSE, OIL 2
8KC-E316G-00-00
$106.99
16
PROTECTOR, HOSE
8ND-F1824-00-00
Unavailable
17
HOSE, JOINT
8NV-F2255-00-00
Unavailable
18
PROTECTOR
8ND-F1652-00-00
Unavailable
19
CLAMP, 1
8MY-RAB00-00-00
Unavailable
20
CLAMP, 11
8ND-RAB13-00-00
Unavailable
21
CLAMP, 25
8JP-RAB27-00-00
Unavailable
22
SCREW
8ND-RA250-00-00
Unavailable
23
OIL PUMP ASSY
8ND-E3100-00-00
Unavailable
24
O-RING, 5
8ND-RAF07-00-00
Unavailable
25
PROTECTOR
8ND-F117G-00-00
Unavailable
26
HOSE, 2
8ND-RA906-00-00
Unavailable
27
CLAMP, 2
8ND-RAB04-00-00
Unavailable
28
HOSE, 1
8ND-RA905-00-00
Unavailable
29
PROTECTOR
8ND-F193A-00-00
Unavailable
