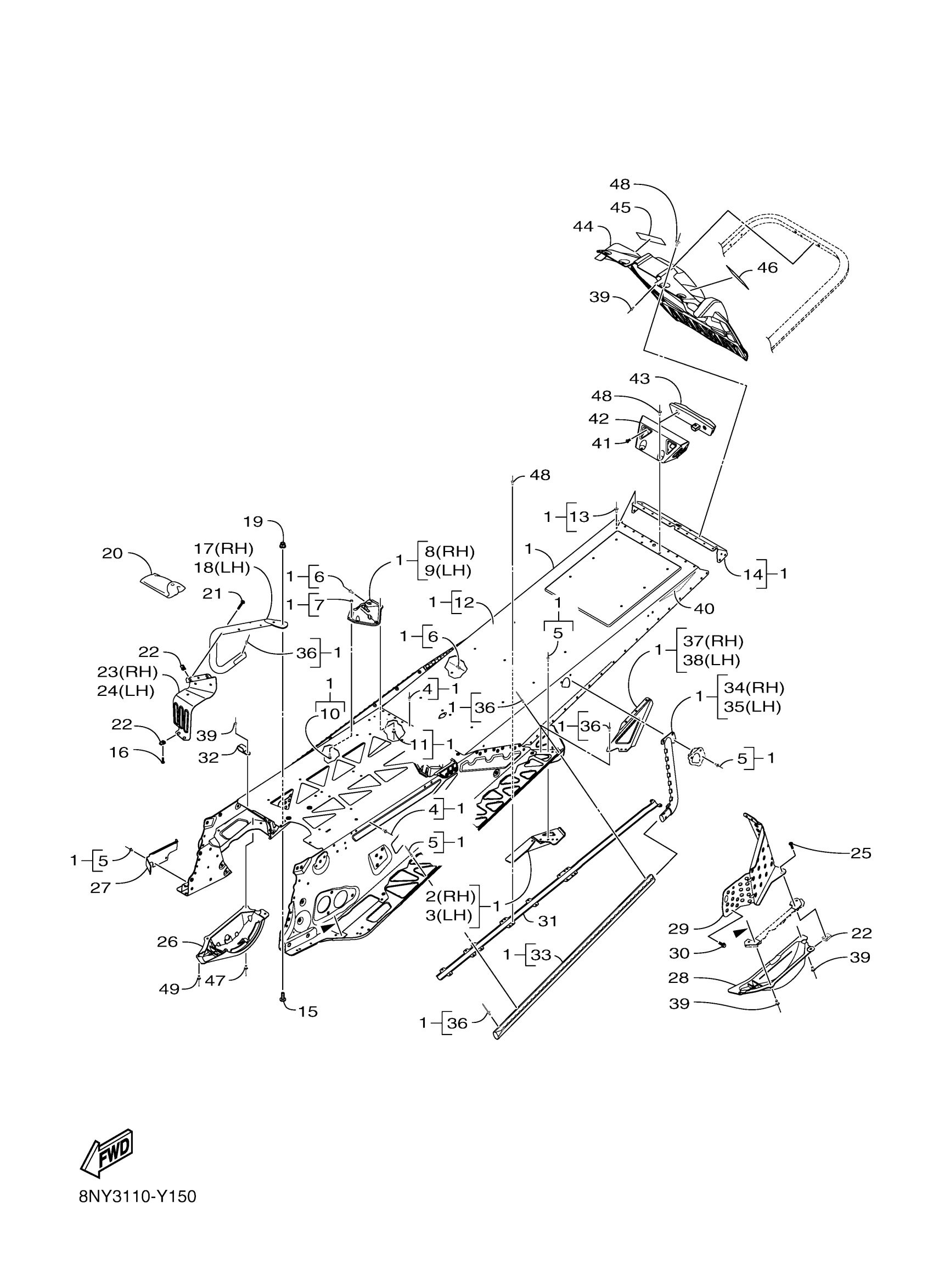

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8NS-F1950-10-00
Unavailable
2
BRACKET,RR.TRACK S
8JR-F1954-10-00
Unavailable
3
BRACKET,RR.TRACK S
8JR-F1944-10-00
Unavailable
4
RIVET, 8
8JP-RA517-00-00
Unavailable
5
RIVET, 9
8JP-RA518-00-00
$0.59
6
RIVET, 20
8JP-RA532-00-00
$2.82
7
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
8
BRKT., MEMBER 2
8JW-F115M-20-00
Unavailable
9
BRACKET, MEMBER 1
8JW-F115L-20-00
$35.99
10
SCREW, M5X0.8X12
8JP-RA241-00-00
$4.88
11
RIVET, 3/16
8JP-RA528-00-00
$2.82
12
PANEL, SUB FRAME 1
8NS-F1912-10-00
Unavailable
13
RIVET, 5
8JP-RA514-10-00
$0.70
14
REINEFORCEMENT, FR
8JW-F1923-10-00
Unavailable
15
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
16
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
17
REINFORCEMENT, FRA
8MT-F192E-00-00
Unavailable
18
REINFORCEMENT, FRA
8MT-F1929-00-00
Unavailable
19
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
20
TOOL KIT
8ND-F8100-00-00
Unavailable
21
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
22
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
23
REINFORCEMENT SUB
8JW-F1996-40-00
Unavailable
24
REINFORCEMENT SUB FRAME FR 1
8JW-F1995-40-00
Unavailable
25
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
26
PROTECTOR, CHAIN
8MT-F2147-00-00
Unavailable
27
BRACKET,1
8ND-F194X-00-00
Unavailable
28
PROTECTOR, DISK BR
8MT-F5717-00-00
Unavailable
29
PROTECTOR, DISK BR
8JW-F5718-40-00
Unavailable
30
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
31
PROTECTER, WIRE HARNESS
8KG-H2589-00-00
Unavailable
32
CLAMP 13
8ND-RAB15-00-00
Unavailable
33
REINFORCEMENT, FOO
8NN-F1926-00-00
Unavailable
34
GUSSET
8JW-F1137-10-00
Unavailable
35
GUSSET
8JW-F1136-10-00
Unavailable
36
RIVET, 3/16
8JP-RA527-00-00
Unavailable
37
GUSSET
8JW-F1135-10-00
Unavailable
38
GUSSET
8JW-F1134-10-00
Unavailable
39
RIVET, 15
8JP-RA524-00-00
Unavailable
40
LABEL 1
8JP-F151A-10-00
Unavailable
41
SCREW, M5X1.0X10
8JP-RA250-00-00
Unavailable
42
BRACKET, TAILLIGHT
8JW-F117E-20-00
Unavailable
43
TAILLIGHT ASSY
8JP-H4500-00-00
Unavailable
44
FLAP
8NS-K7595-00-00
Unavailable
45
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
46
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
47
RIVET, 14
8JP-RA523-00-00
Unavailable
48
RIVET, 17
8JP-RA529-00-00
Unavailable
49
RIVET, 17
8LJ-RA529-00-00
Unavailable
