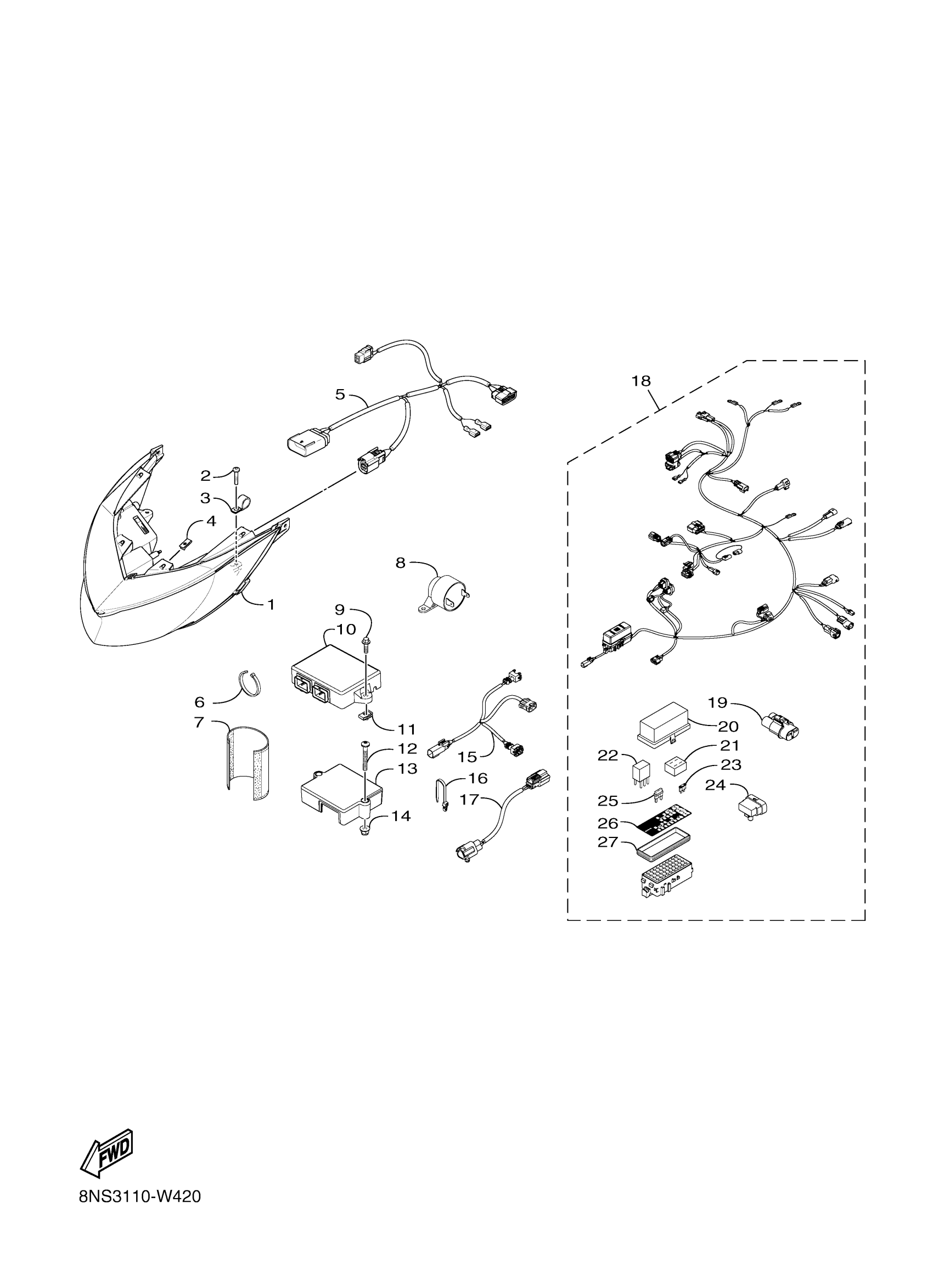

Yamaha MM8N54RL (MOUNTAIN MAX 800 154 SL) 8NY5 2024 ELECTRICAL 1 Diagram
#
1
HEADLIGHT UNIT ASS
8KC-H4310-00-00
$551.99
2
SCREW, TAPPING 1/4
8JP-RA284-00-00
Unavailable
3
CLAMP, 17
8JP-RAB19-00-00
Unavailable
4
NUT, CLIP M6X1.0
8JP-RA355-00-00
$1.16
5
WIRE HARNESS
8NS-H2105-00-00
$97.99
6
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
6
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
6
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
7
PROTECTER, WIRE HA
8ND-H2589-00-00
Unavailable
8
ALARM UNIT
8ND-H2564-00-00
Unavailable
9
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
$1.11
10
ENGINE CONTROL UNI
8NR-H591A-10-00
Unavailable
11
NUT, CLIP M6
8JP-RA354-00-00
$0.96
12
SCREW
8ND-RA264-00-00
Unavailable
13
RECTIFIER & REGULA
8ND-H1960-00-00
Unavailable
14
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
15
EXTENSION, WIRE HA
8NV-H258A-10-00
Unavailable
16
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
17
EXTENSION, WIRE HARNESS
8KT-H2586-00-00
Unavailable
18
WIRE HARNESS
8NY-H2105-00-00
Unavailable
19
CAP, PLUG
8ND-H2371-00-00
Unavailable
20
COVER, FUSE BOX
8JP-H2172-00-00
Unavailable
21
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
22
RELAY 1
8MS-H2185-00-00
Unavailable
23
FUSE (15A)
8JP-H2151-00-00
Unavailable
23
FUSE (20A)
8JP-H2151-10-00
Unavailable
23
FUSE (30A)
8JP-H2151-30-00
Unavailable
23
FUSE
8ND-H2151-00-00
Unavailable
24
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
25
DIODE
8ND-H1974-00-00
Unavailable
26
DECAL 1
8ND-R2391-00-00
Unavailable
27
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
