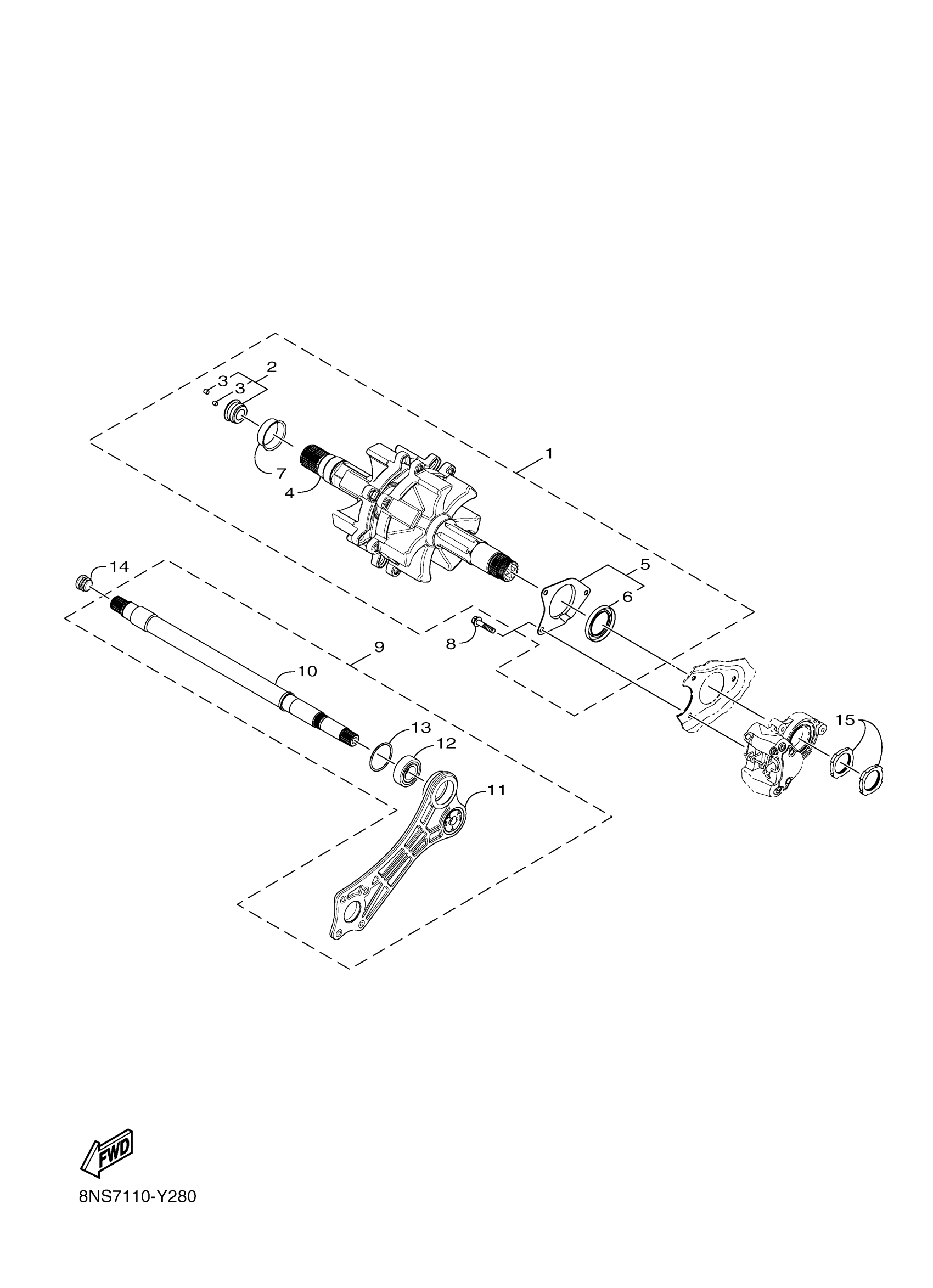

Yamaha MM8N54PL (MOUNTAIN MAX 800 154 SL) 8NY3 2023 TRACK DRIVE 1 Diagram

#

Description
Price

1

FRONT AXLE SUB-ASS

8NR-G7501-10-00

$338.99

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

MAGNET

8JP-H366M-00-00

$7.49

4

AXLE, FRONT

8NS-G7511-00-00

$185.99

5

CALIPER SEAL KIT

8NS-F5803-00-00

$22.99

6

SEAL, OIL

8NS-RAE02-00-00

$7.49

7

SLEEVE, DRIVE SHAF

8NS-G5536-00-00

$32.99

8

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

9

SECONDARY SHAFT COMP.

8NS-E7680-00-00

Unavailable

10

SHAFT, SECONDARY

8NS-E7681-00-00

$267.99

11

HOUSING, BEARING

8NV-G7631-00-00

$241.99

12

BEARING

8ND-RAG07-00-00

$37.99

13

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

14

PLUG

8NS-G7339-00-00

$3.02

15

NUT

8NS-RA309-00-00

Unavailable
